Configuring ST 2110 Outputs

From the Outputs page, you can configure up to four ST 2110 outputs, each with their own Video, Audio, and Metadata sources.

To enable ST 2110 outputs:

• ST 2110 must be licensed on your decoder,
• The decoder Personality must be set to ST 2110.

For more information, see Managing Licenses and System Settings.

To configure ST 2110 outputs:

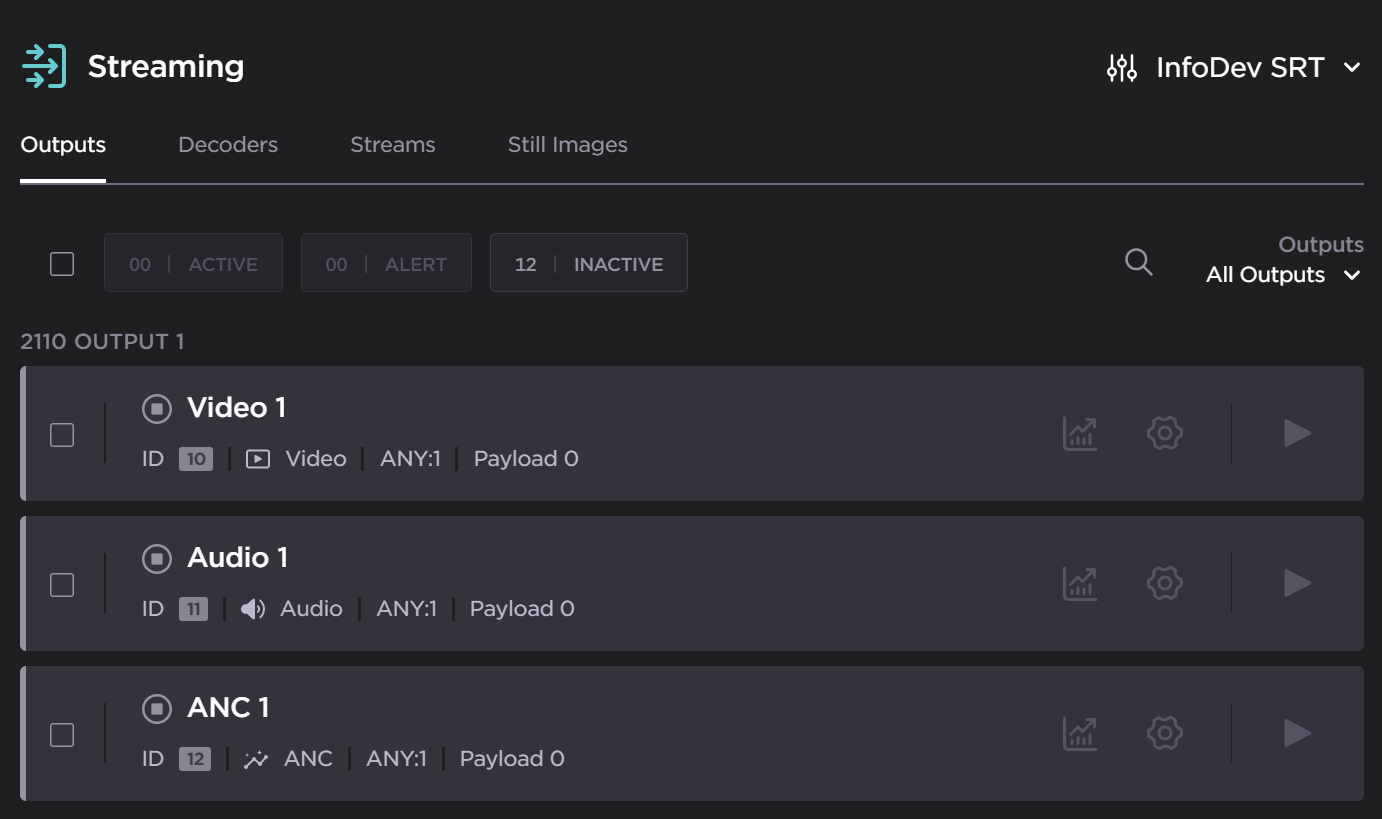

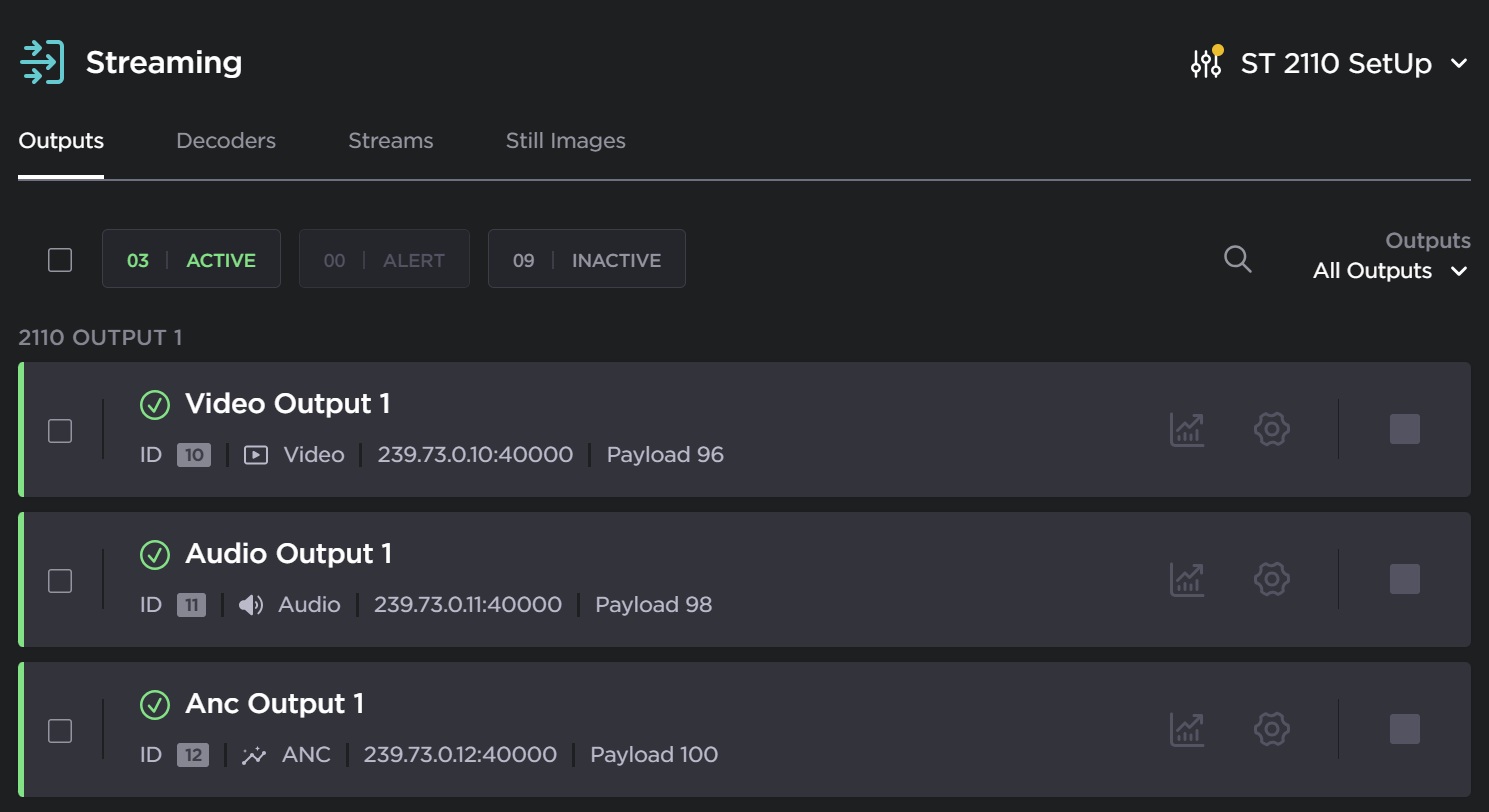

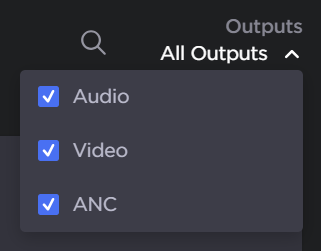

1. Click Streaming on the sidebar, and select the Outputs tab.

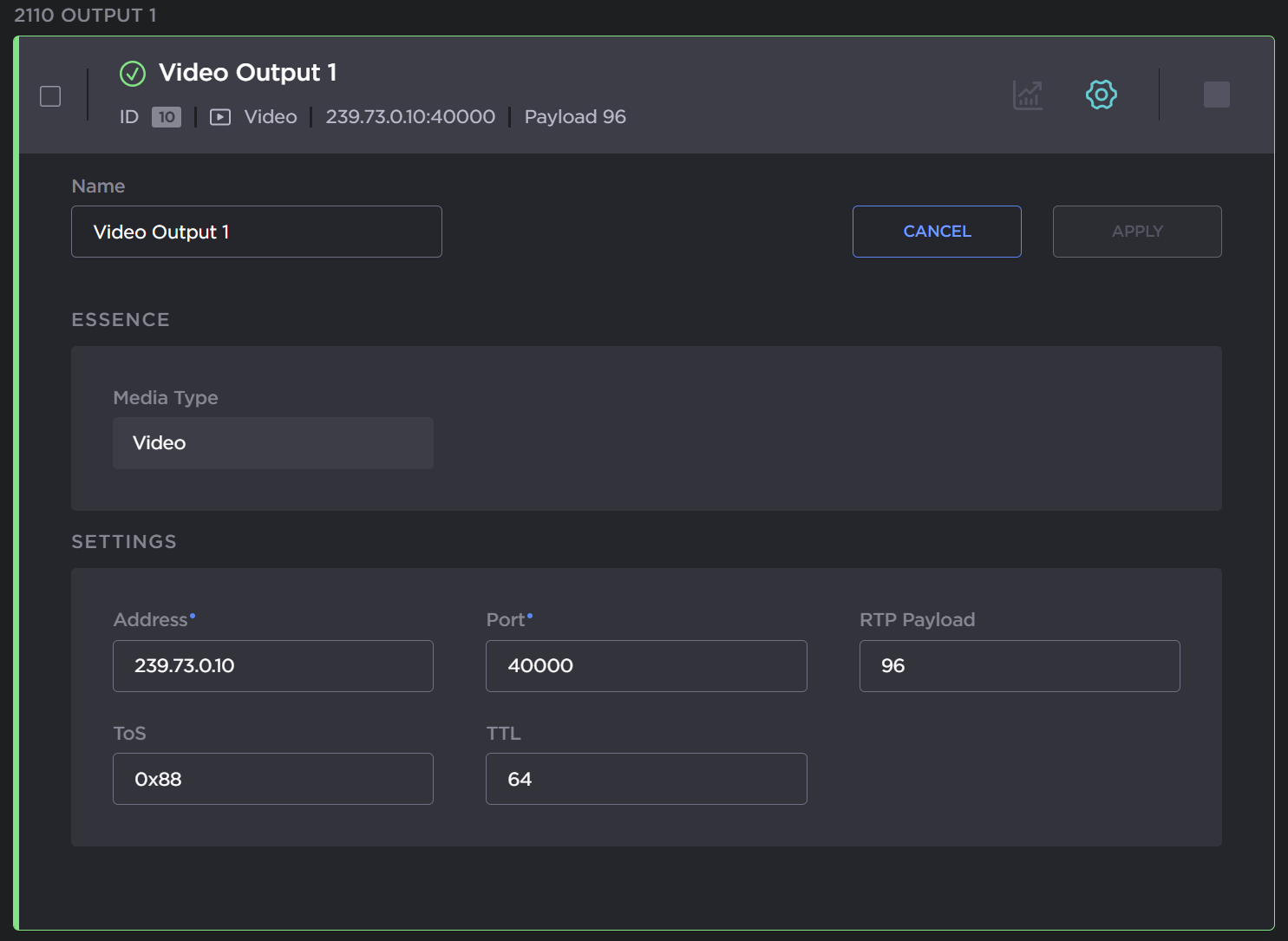

2. Click the Settings icon



   on the Video panel to configure the video settings.






3. Select a stream to assign to the decoder from the Stream dropdown.

4. Select the Output port(s) for the decoder (if not using the default selection) by clicking 1, 2, 3, or 4 under SDI Outputs.
   You can route the decoded video and audio to any set of physical outputs. This allows you to specify the interface(s) on which you want to see the video.




   Important

   Decoder 0 has highest priority, and and the video decoding resources are prioritized with the lower decoder numbers (i.e., 0, then 1, 2, and 3) having higher priority. For more information, see Oversubscription of Decoder Channels.



   Tip

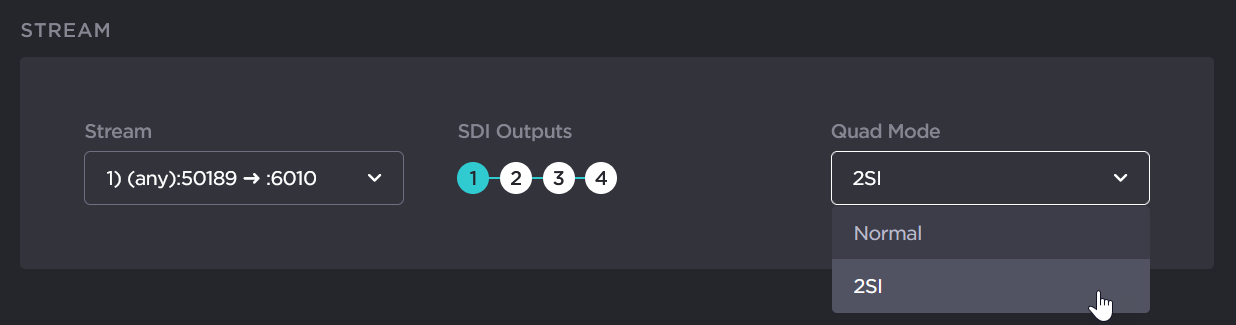

   To configure 2SI UHD output mode, select all four SDI outputs, then select 2SI Mode from the Quad Mode drop-down (this field is only available when all four SDIs are selected).



5. Adjust the remaining settings in the Input, Output, and Metadata sections. For example, you can change the Input Mode, Output Frame Rate, Still Image, and Still Image Delay.
   Some of the Decoder settings are read-only.  For details, see /wiki/spaces/MX4D/pages/11501759.




   Tip

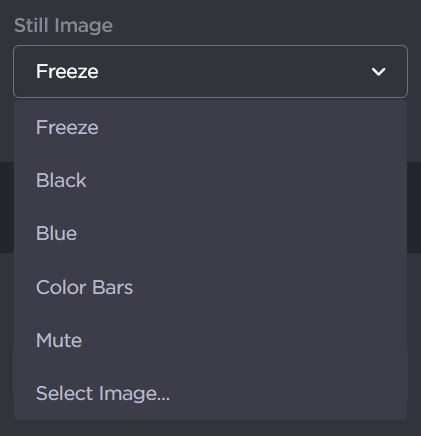

   If the decoder is no longer receiving video (e.g. if the encoder stream has stopped or the network connection is lost) it will display a Still Image. You can select a default image from the Still Image dropdown.

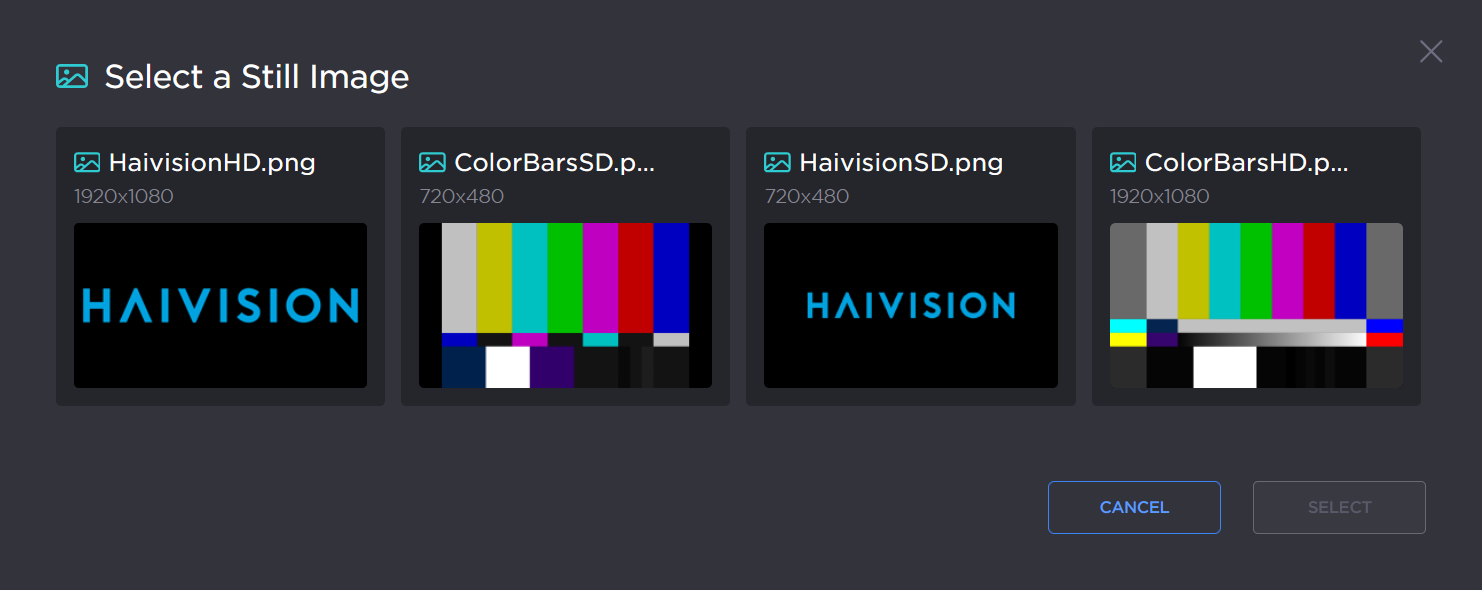

   To select a custom image, click Select Image... and select the custom image from the custom image panel




   For more information on configuring Still Images, see /wiki/spaces/MX4D/pages/11502015.

6. To apply your changes, click Apply.

7. To start or stop the decoder, click the Start/Stop icon



   /



   on the decoder panel.

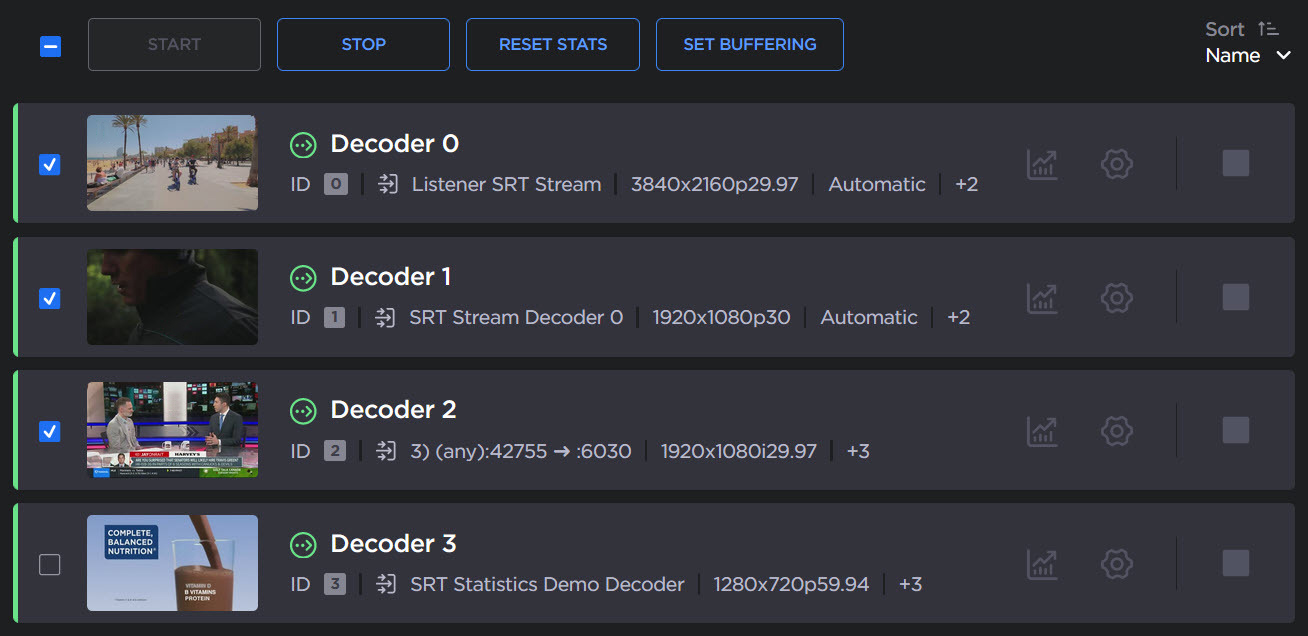

8. To select one or more decoder, check the checkboxes on the decoder panel(s).





   Once selected, you can:
   1. Start or Stop the decoder(s) (as applicable).
   2. Click Reset Stats to reset the statistics on all selected decoders.

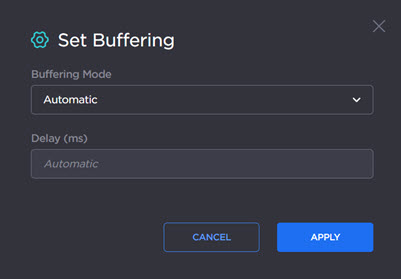

   3. Click Set Buffering to set the Buffering Mode and Delay for all selected decoders.
   4. To apply your changes, click Apply.

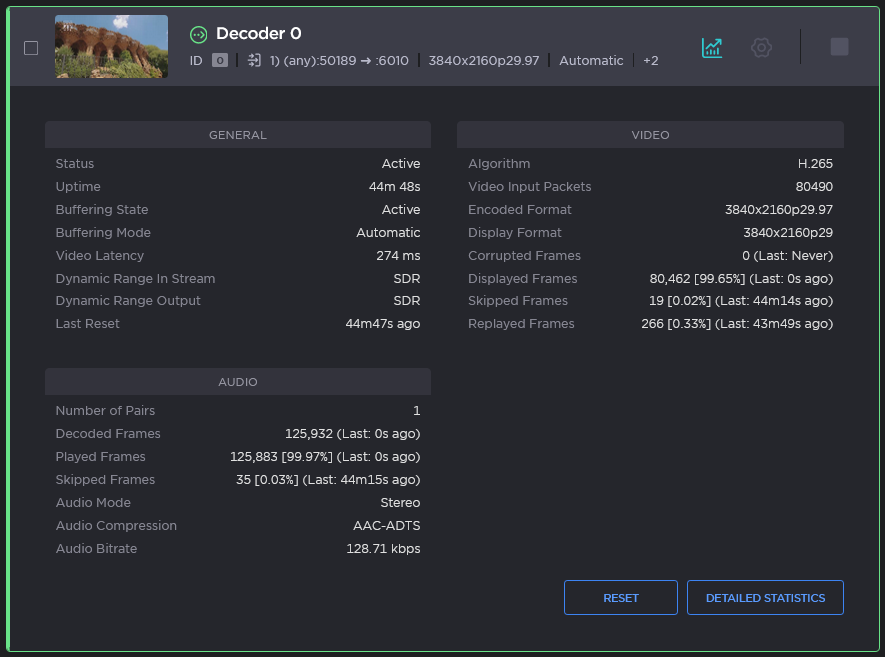

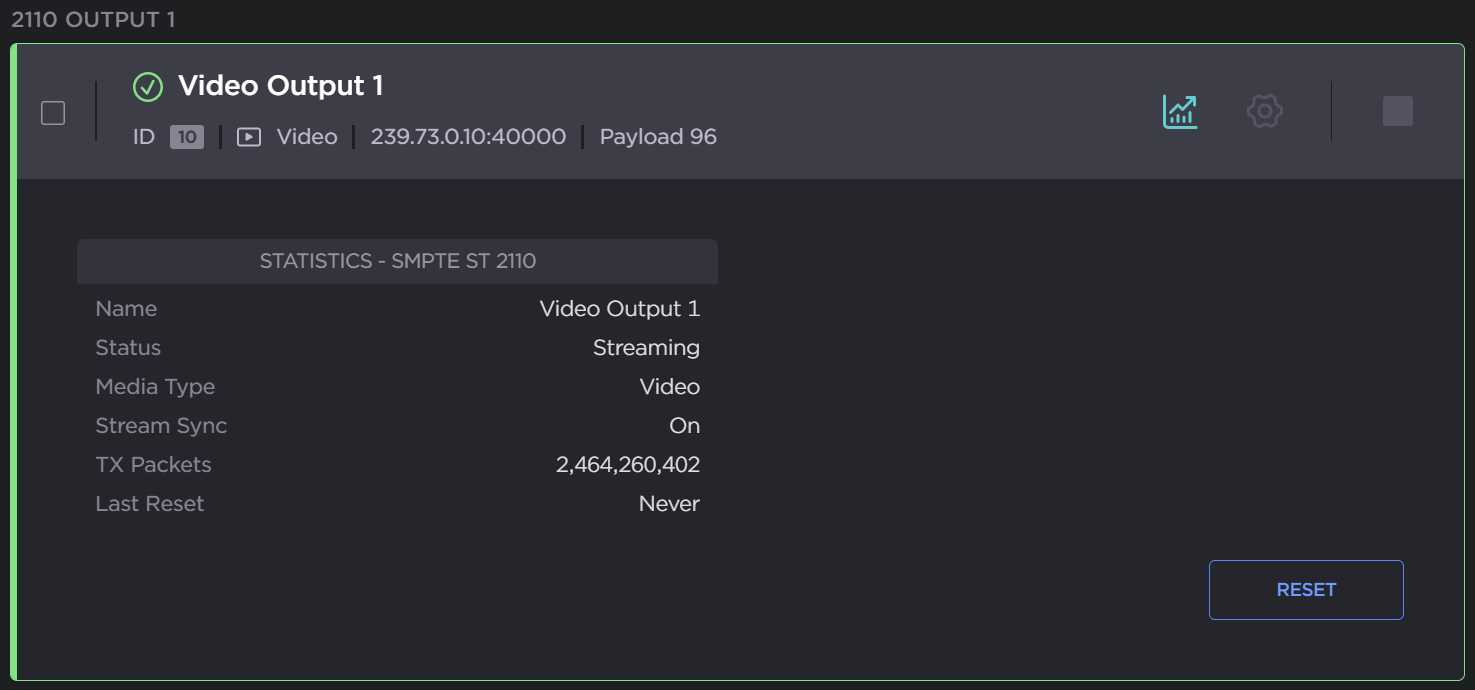

9. To view statistics for the decoder, click the Statistics icon



   on the decoder panel.




   From here you can click Reset to reset the decoder statistics, or click Detailed Statistics to open the detailed statistics page. For more information, see /wiki/spaces/MX4D/pages/11502210 and /wiki/spaces/MX4D/pages/11501818.



   Tip

   To expand or collapse the statistics or settings details for all streams at one time, hold the shift key and click the Statistics icon



   or Settings icon



    on any stream.



   Note

   For information on configuring multi-channel synchronization on the Makito X or Makito X4 encoder and decoder, see Multi-Channel Synchronization.
