Alpha FX

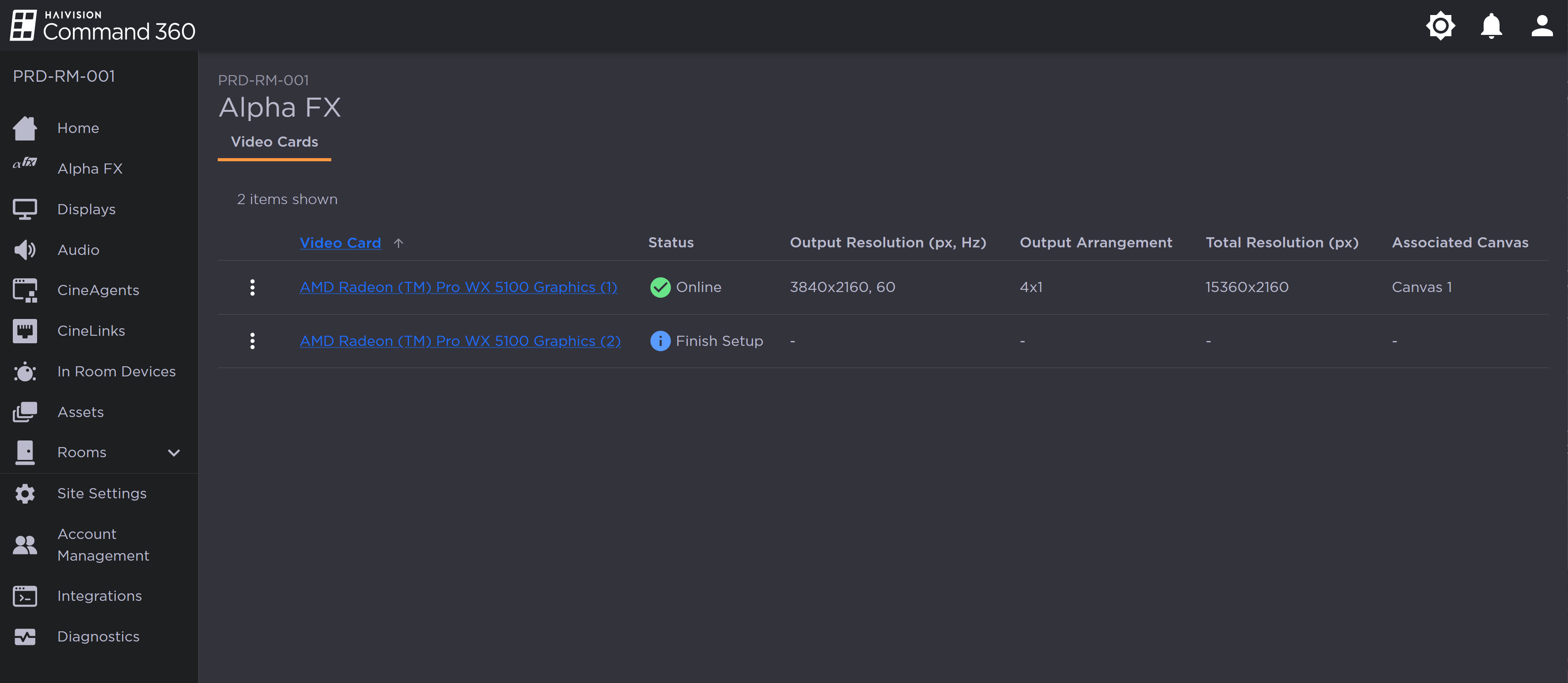

The Alpha FX page is where you manage video cards associated with the system. Canvas creation takes place here, which then allows you to allocate Displays.

Important

For any task that requires modifying or resetting a GPU, you must disconnect the video output first.

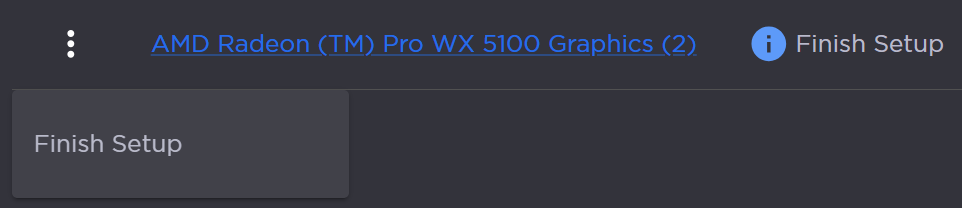

For video cards with the status Finish Setup, click the

• Finish Setup launches the video card configuration process for arranging the outputs to create a canvas, the digital space from which displays are allocated.

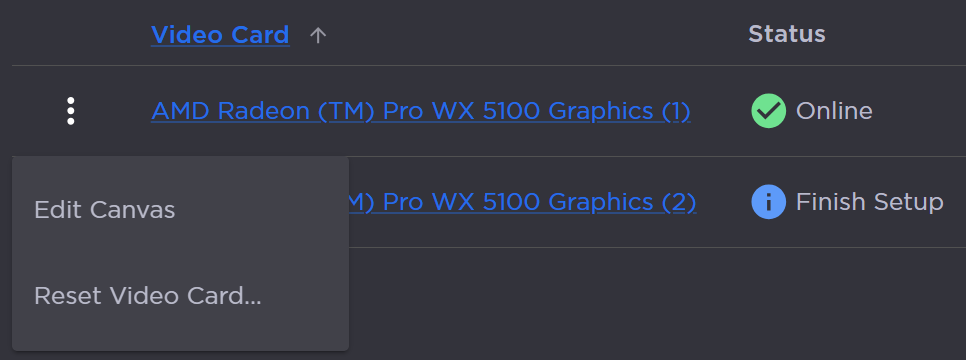

For video cards with the status Online, click the

• Edit Canvas allows you to change the name of the canvas associated with the video card and select whether any outputs use a video splitter.

• Reset Video Card deletes the current configuration, as as any displays, devices, and layouts associated with the video card. After resetting, the card's status is changed to Finish Setup.
