Stream-Play with VMTI

Play ISR shows real-time feedback of Moving Target Indication (VMTI) data which allows you to view and monitor selected targets directly atop the video-view.

 To enable VMTI visualization:

1. Once your stream is playing, click the Target icon



   in the control bar to open the VMTI Options.

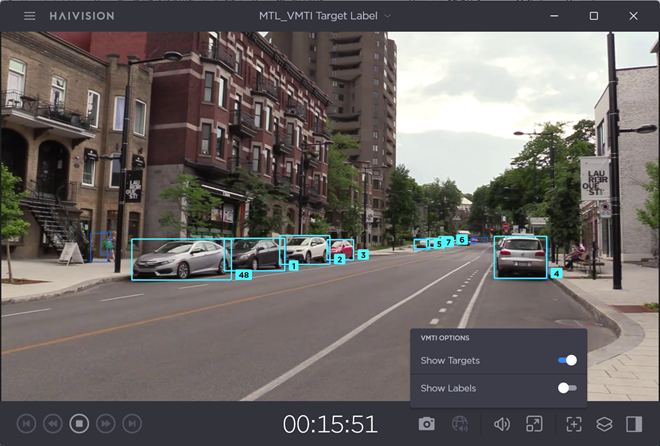

2. To call-out targets, toggle Show Targets on. This will overlay numbered bounding-boxes around each target identified by VMTI metadata.
   If you have Auto-Overlays enabled, detected target overlays will be enabled automatically. For details, see VMTI Settings.




3. To call-out labels, toggle Show Labels on. This will provide names for each identified target (e.g. car, person).






   Note

   In order to enable Show Labels, Show Targets must be enabled first.

   Additionally, Statistics overlays and VMTI overlays can be enabled at the same time.

4. Click anywhere to dismiss the VMTI Options list.

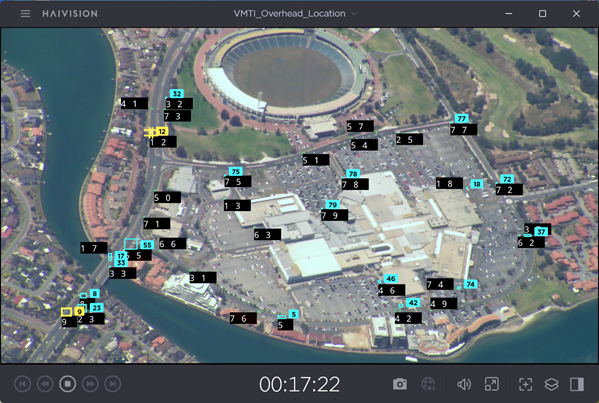

5. To easily keep track of specific targets, click the target boxes. This changes the bounding box color (as seen in yellow in the following example) to keep these targets in focus in crowded or fast pace environments. For details on changing the Target or Focus box colors, see VMTI Settings.






   Tip

   From the Play ISR settings, you can also configure snapshots to capture VMTI data. For details, see Play ISR Settings > Snapshot.

6. To access the target location, right-click on any identified target.




   1. Click Copy Location to save the location as a set of coordinates.
   2. Click Map Location to  view the target on a map. This will open a map in your default browser, with the target location pinned.
