Streams List View

The Streams List View displays a status icon along with the Stream Name, Input, Transcoder, and Output(s) for each defined stream. It also provides options for you to start, stop or delete a stream.

Web Interface

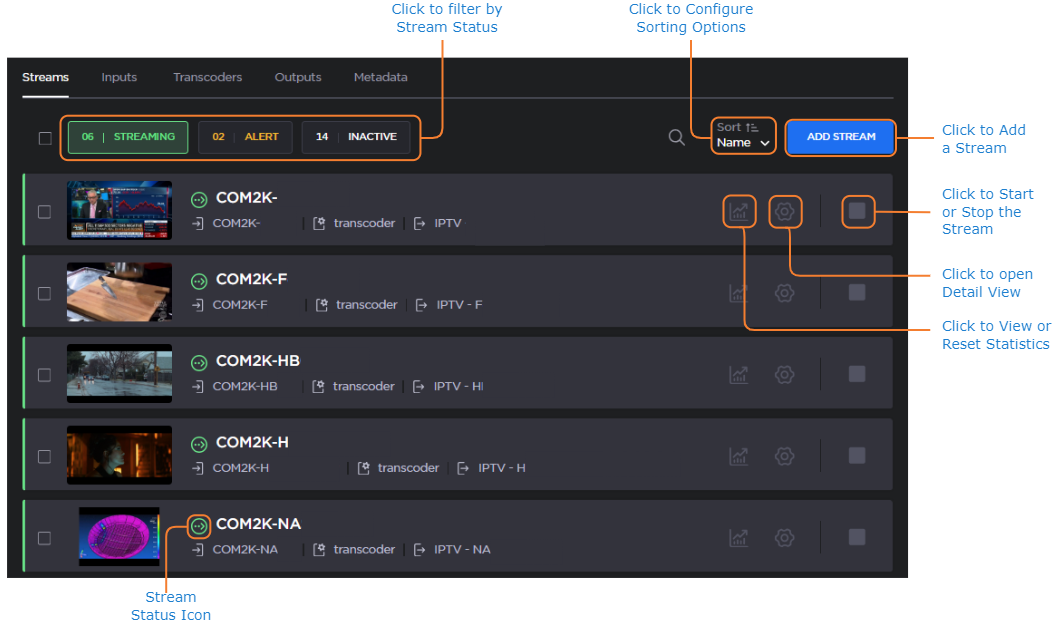

To open the Streams List View:

  1. Click Streaming on the sidebar, and select the Streams tab.
    The Streams page opens, displaying the list of defined streams for the encoder.


  2. From here, you can perform the following tasks:

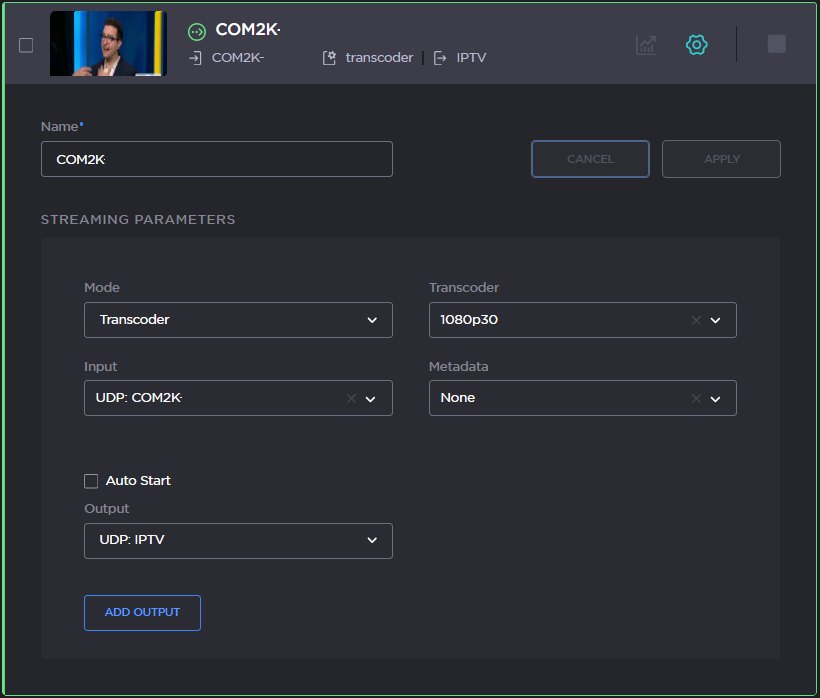

    • To view or configure the stream settings, click the Settings icon
      on the stream panel. For details, see Configuring Stream Parameters.

      • To apply changes to the stream parameters, click Apply

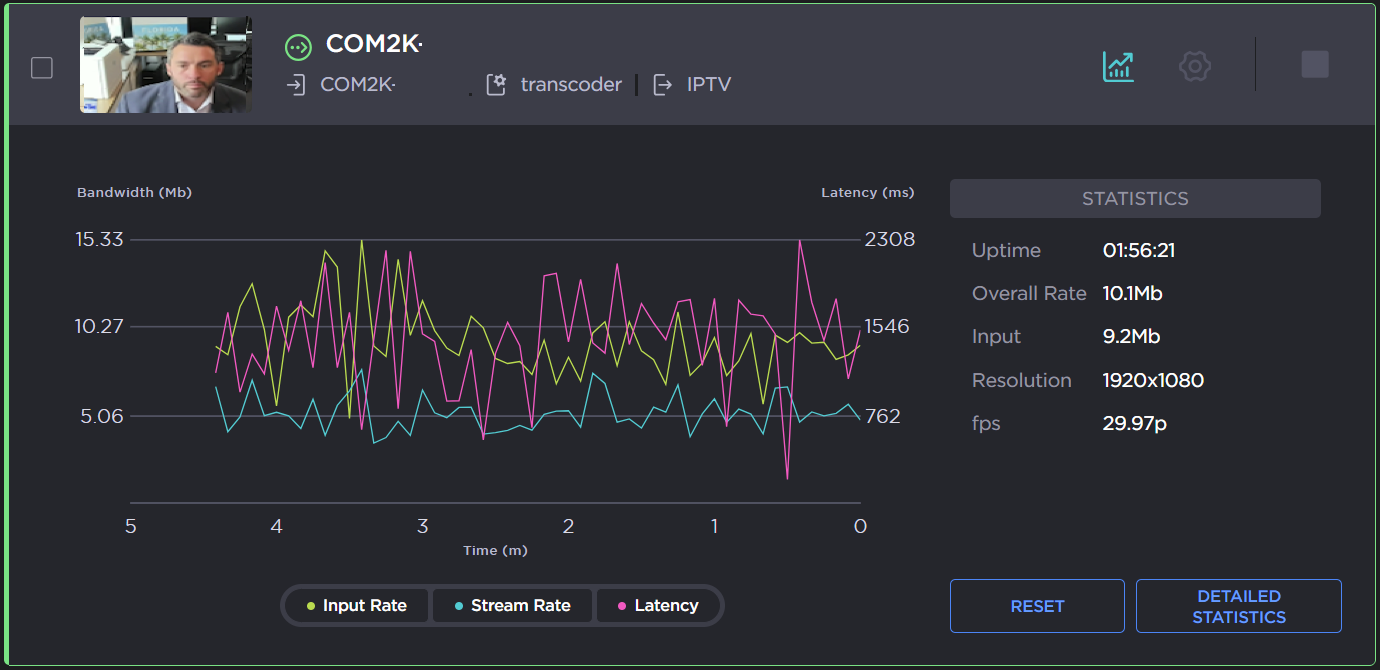

    • To view stream statistics, click the Statistics icon
       on the stream panel.

      From the statistics panel you can:
      1. Click Reset to reset the current stream statistics
      2. Click Detailed Statistics to open a separate page displaying all available stream statistics
      3. Alter the graph by (de)selecting the exposed data – Input Rate, Stream Rate, or Latency
    • To start or stop the stream, click the Start/Stop icon
      /
      on the stream panel.
    • To Start, Stop, or Delete one or multiple streams, select the check boxes on the far left of the stream panel(s), then click the desired action button at the top of the page.
    • To add a stream, click the Add Stream button. For details, see Adding New Streams
    • To modify the sort order, click the Sort dropdown menu. The default is set to sort by Name, in Ascending order.
    • To search for specific streams, click the Search icon
       and type in key words to identify the stream. If no related stream is found, the search page will return No Search Results.
    • To filter streams by status, click the Streaming, Alert, or Inactive buttons that appear in the status filter bar.
      The Stream Status is color coded, and the Stream State is indicated by the State icon. The possible Stream States and Statuses are listed below:

      StatusColor Possible StatesIconDescription
      ACTIVEGreen
      • CONNECTED

      The stream is connected and active.

      STOPPEDGray
      • OFFLINE
      • ERROR

      The stream is stopped.

      If this state appears unexpectedly, the stream may be offline or experiencing an error.

      WARNING


      Amber
      • STARTING
      • GENERAL ERROR
      • TRANSCODER ERROR

      The stream is attempting to connect and initialize, please wait a few seconds.

      Should this state persist, connection may be inhibited due to general or transcoder errors.

      • NO DATA
      • INPUT ERROR

      The stream's Kraken Input has no valid data, or is connected (i.e. to a remote SRT source) but without any active data delivered into Kraken.

      Alternatively, the stream may be experiencing an input error (i.e. unable to establish a connection to an SRT source).

      • OUTPUT ERROR


      The stream's Kraken Output is experiencing an output error (i.e. unable to establish a connection to an SRT destination).

Mobile Interface

To open the Streams List View:

  1. Tap

    to open the Sidebar.

  2. Go to Streaming > Streams.
    The Streams page opens, displaying the list of defined streams for the encoder.

  3. Tap the Filter icon
    to  hide/show the stream Status Filter bar.
  4. Tap the Select icon
    to select multiple streams at a time, then tap Actions in order to Stop, Start, or Delete them.
  5. To modify the sort order, tap the Sort icon
    . The default is set to sort by Name, in Ascending order.
  6. To search for specific streams, click the Search icon
     and type in key words to identify the stream. If no related stream is found, the search page will return No Search Results.
  7. To filter streams by status, click the

    (streaming),
    (alert), or
    (inactive) buttons that appear in the status filter bar.
    The Stream Status is color coded, and the Stream State is indicated by the State icon. The possible Stream States and Statuses are listed below:

    StatusColor Possible StatesIconDescription
    ACTIVEGreen
    • CONNECTED

    The stream is connected and active.

    STOPPEDGray
    • OFFLINE
    • ERROR

    The stream is stopped.

    If this state appears unexpectedly, the stream may be offline or experiencing an error.

    WARNING


    Amber
    • STARTING
    • GENERAL ERROR
    • TRANSCODER ERROR

    The stream is attempting to connect and initialize, please wait a few seconds.

    Should this state persist, connection may be inhibited due to general or transcoder errors.

    • NO DATA
    • INPUT ERROR

    The stream's Kraken Input has no valid data, or is connected (i.e. to a remote SRT source) but without any active data delivered into Kraken.

    Alternatively, the stream may be experiencing an input error (i.e. unable to establish a connection to an SRT source).

    • OUTPUT ERROR

    The stream's Kraken Output is experiencing an output error (i.e. unable to establish a connection to an SRT destination).
  8. To add a stream, tap the Add button. For details, see Adding New Streams

Note

For information on configuring individual streams, see Configuring Stream Parameters > Mobile Interface.

For information on viewing or editing stream statistics, see Stream Statistics > Mobile Interface.
