Outputs List View

The Outputs List view displays a summary of defined outputs for Kraken, including the Output Name, Destination (output) URL, and Status for each output. It also provides an option for you to delete an output.

Web Interface

To open the Outputs List View:

  1. Click Streaming from the sidebar, and select the Outputs tab.

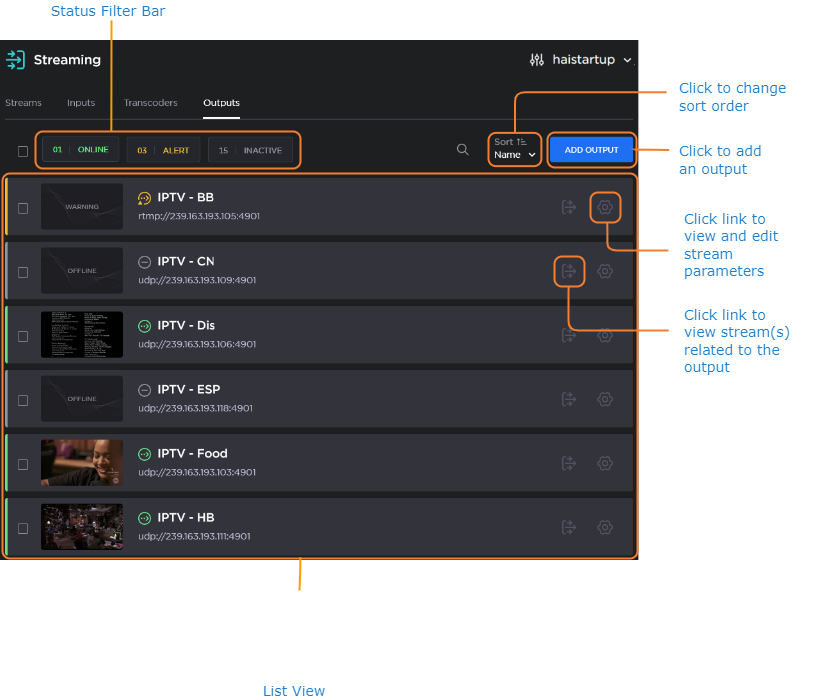

    The Outputs List View opens, as shown in the following example, displaying the defined outputs.
  2. From here, you can perform the following tasks:
    • To add an output, click Add Output.
    • To filter the outputs list view by status, click Streaming, Alert, or Inactive in the status filter bar.
    • To modify the sort order, click the Sort dropdown menu. The default is set to sort by Name, in Ascending order.
    • To search for specific outputs, click the Search icon
       and type in key words to identify the output. If no related output is found, the search page will return No Search Results.
    • To view details or modify the components of an output, click the Settings icon
       in the output panel. See (4.0) Configuring Output Parameters and Output Settings
    • To delete one or more existing output(s), check the checkbox(es) next to the output(s) in the list, and click the Delete button that appears at the top of the list.
    • To view the streams associated with each output, click the Streams icon
      at the far right of the output panel.
  3. To apply your changes, click Apply.
Mobile Interface

To open the Outputs List View:

  1. Tap
     to open the sidebar.
  2. Go to Streaming > Outputs.
    The Inputs List view opens, as shown in the following example.
  3. From here, you can perform the following tasks:
    • Tap the Filter icon
       to  hide/show the input Status Filter bar.
    • To delete outputs, tap the Select icon
      , select the number of outputs you wish to delete,
      then tap Actions > Delete
    • To modify the sort order, tap the Sort icon

      and select the desired sorting options. The default is set to sort by Name, in Ascending order.
    • To search for specific outputs, tap the Search icon
      and type in key words to identify the output. If no related output is found, the search page will return No Search Results.
    • To add a new output, tap the Add button. See Adding New Outputs
    • To filter the outputs list view by status, tap the

      (streaming),
       (alert), or
       (inactive), buttons in the status filter bar.
    • To view/configure output information, corresponding streams, or settings, tap the More Options menu
       on any available input. For details, see Configuring Output Parameters and Output Settings
  4. To apply your changes, click Apply.
