Routes Pane

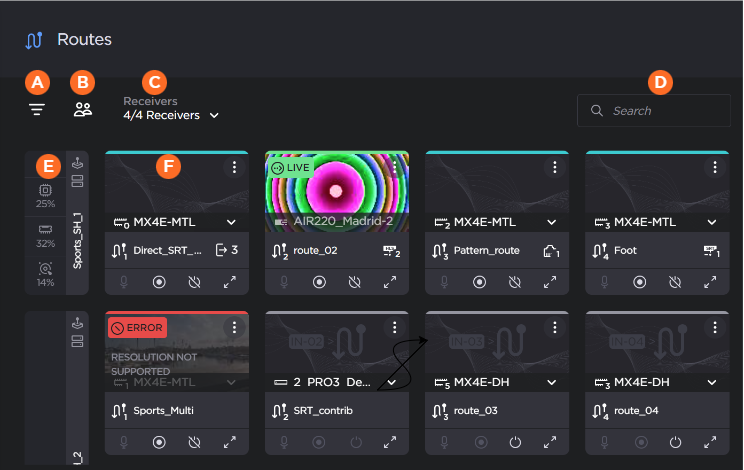

The Routes pane of the Master Control screen displays the available receivers and associated route tiles.

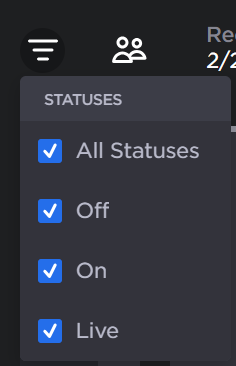

	The Status Filter button allows you to make the number of tiles more manageable by changing the selections on the dropdown menu to display only the selected route status. Status Filter

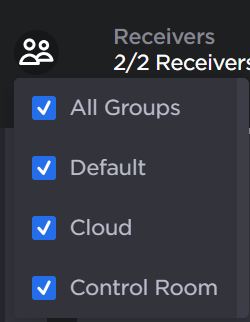

	The Groups Filter buttons allow you to make the number of tiles more manageable by changing the selections on the dropdown menu to display only the selected route status or groups. Groups filter
	The Receivers Dropdown allows you to select which receivers are shown in the routes pane. The number identifies how many receivers that are currently displayed. For example, "1/4 Receivers" indicates one of the four connected receivers is displayed.

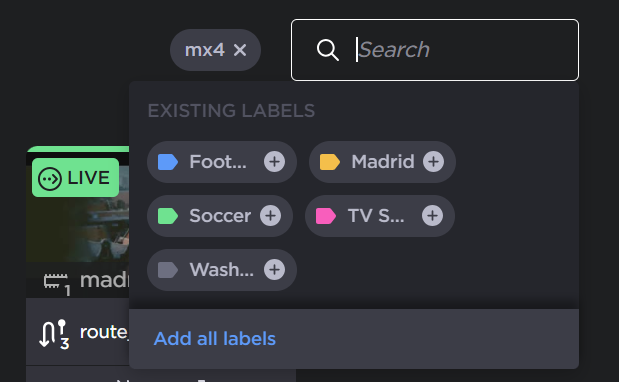

	You can also use the Search Textbox to find the receivers you desire. Select an appliance label or type a string in the text box and press the Enter key. For each additional string or label you enter an AND operation is performed by the search. Search textbox
	The Receiver Toolbar is the left vertical bar and its associated route tiles appear to the right. The receiver toolbar provides the receiver name and quick stats on processor, memory, and disk usage. Clicking the icon opens another browser tab to directly access the receiver's web interface. Clicking the icon takes you to the receiver on the Appliances page.
	Route Tiles are assigned to the inputs of the receivers. The Route tiles consist of a thumbnail preview (if Live) and a variety of controls and status information. See the following section for more details.

Route Tiles

There are small differences in the route tile between the StreamHub and Makito decoder devices. See the information in the following tabs for samples of each device. See Using Master Control for more details.

StreamHub

Makito Decoder

Note

No thumbnail preview appears for Makito X Decoders.

External Receivers

Note

No thumbnail preview appears for External Receivers.

	Route Status	Colored bar indicates the current status of the route. Live, File Forward (StreamHubs only), or Record (StreamHubs only) Running (but not Live) Warning Inactive/Offline Error If the route is currently Live, File Forwarding, or Recording, a corresponding status box appears under the bar: , , or . Note If data bridge is enabled on a transmitter and the connection is assigned to the StreamHub, a icon appears in this area: Databridge in Route Tile

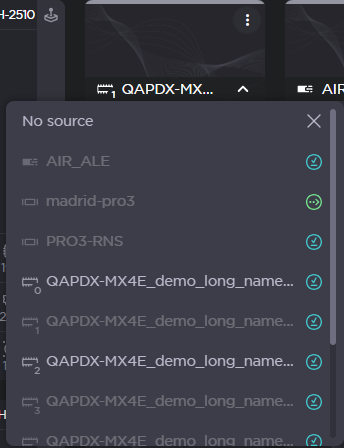

	Source Icon and Name	Shows the type of source, the input number (Makito only), and the source name. When route is disabled, clicking the source names opens a dropdown to select the route source. Sources dropdown
	Route Name	Note Editable only on StreamHub, Cloud StreamHub, and Makito X4 Decoder version 1.7+
	Talkback Enable button (StreamHub only)	Enables or disables talkback for the route, if applicable.
	Start/Stop Record button (StreamHub only)	Click the button to start recording the source. Click the button to stop the record.
	Route Enable button (StreamHub and Makito only)	Click the button to disable the route. Click the button to enable the route.

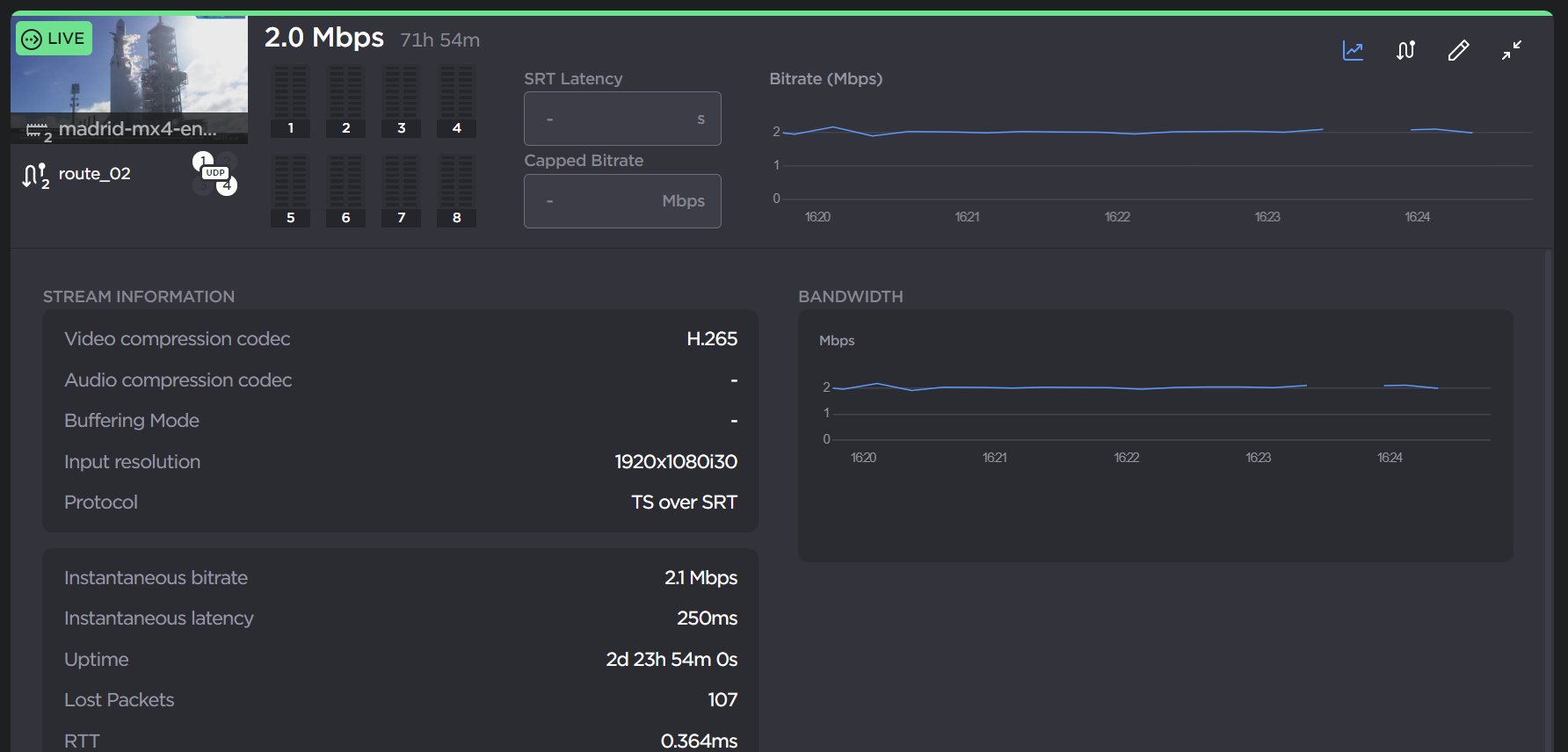

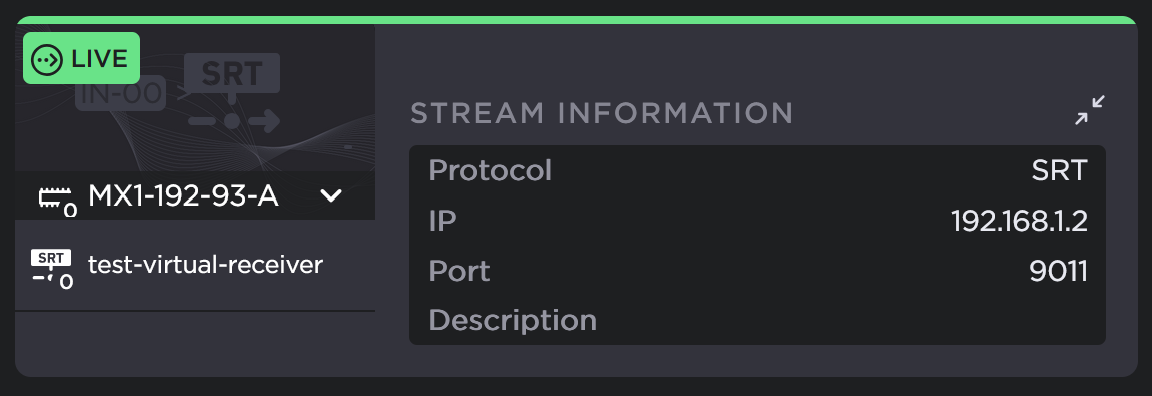

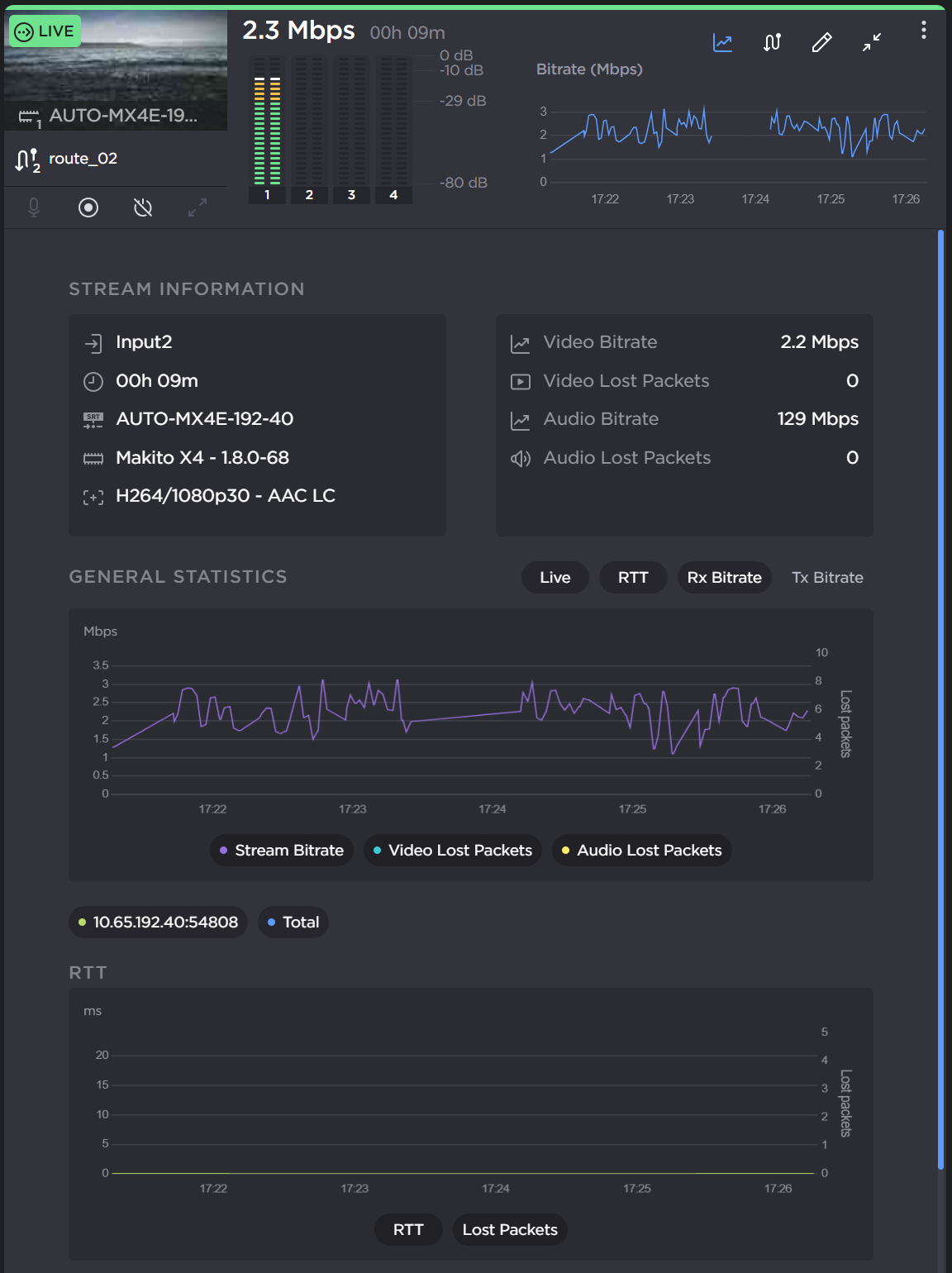

	Expand Route Details button	Click the Expand button on the desired tile to open the route information and telemetry view. See Viewing Destination Status for more details. Sample screenshots of StreamHub, Makito Decoder, and External Receiver routes are shown below: StreamHub Expand StreamHub Makito Decoder Expand Makito External Receiver Expand External Receiver

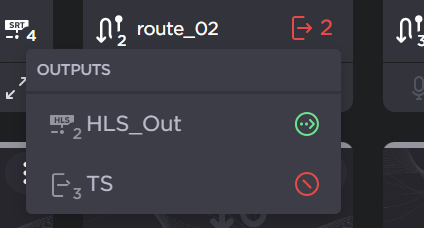

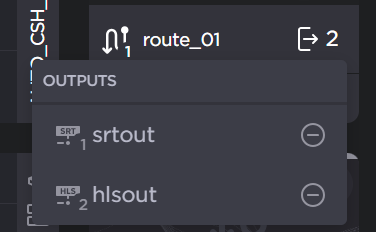

	Assigned output (StreamHub and Makito only)	Icon definition depends on receiver type: StreamHub Shows the assigned output number and protocol. If multiple outputs/protocols are used, then a icon appears with the number output listed. Clicking the icon shows more details of the output: Route outputs The color of the icon changes to red if there is an error with one of the outputs: Makito Decoder Indicates which SDI output is in use by the route.
	More Options (StreamHub and Makito only)	Click the button to show more options for the route, allowing you to rename and edit the selected route.
