Unit Front Panel

The unit front panel allows you to:

Configure the unit
Start/stop live
Start/stop record
Forward stored files
Edit various unit settings

Home Menu

The Home Menu provides easy access to each option:

Start a Live

Start a Record

Forward Stored Files

Configuring Data Bridge

Configuring Network Interfaces

Settings Menu

The Settings Menu provides the following icons:

Mission Configuration (Optional)

Input/Output Settings

Network Settings

Destination Profiles

Live Profiles

Record Profiles

Forward Settings

SD Card Management

Device Settings

Device Information

Status Bar

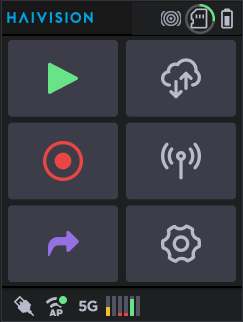

On the front panel the status bars on the top and bottom of the panel, icons indicate the unit state. For example:

Available icons and their meanings are shown in the following table.

Status Icon	What it means
Battery Lowest icon Battery low icon Battery half icon Battery high icon Battery full icon	Battery levels.
Bars icon	Bars Pattern selected
Black pattern icon	Black Pattern selected.
Circles icon	Circles Pattern selected.
3G icon 4G icon 5G icon	Cellular connections and their signal levels.
Bridge enabled icon Bridge disabled icon	Data bridge enabled/disabled. See FKN_Configuring a Data Bridge.
Ethernet icon Multiple Ethernet icon	Ethernet connections.
HDMI off icon	HDMI input selected but no received stream.
HDMI icon	HDMI input selected receiving a stream.
Intercom icon	Intercom communication with master room. See FKN_Using the Intercom.
Live at start icon	Live at startup (if enabled). See FKN_Enabling/Disabling Auto-Live at Startup.
Location icon	Location (if enabled). See FKN_Enabling/Disabling the Unit Location.
Missions icon	Missions selected if the unit is linked with a Manager supporting the Story Centric Workflow. See FKN_Selecting a Story.
USB icon Multiple USBs icon	One or two USB keys and the memory space used.
SD Card icon	SD card detected and memory space used.
SD Card hot folder icon	SD card in Hot Folder. See FKN_Transmitting Files via the Hot Folder.
SD Card locked icon	SD card locked. Add, change or remove content on the card cannot be done if locked. Remove SD card and slide the Lock switch on the side of the card.
SDI off icon	SDI input selected but no received stream.
SDI icon	SDI input selected receiving a stream.
Power icon	Unit connected to power supply.
Video return icon	Video Return enabled and receiving a stream. See FKN_Receiving a Video Return.
WiFi AP mode icon	Wifi connection configured in access point mode. See FKN_Configuring a Wi-Fi Access Point.
WiFi Off icon WiFi Low icon WiFi Medium icon WiFi Full icon	Wifi connection in client mode.
