Configuring a Wi-Fi Access Point

1. From the Home menu, tap >Wi-Fi >Mode >Access Point.

2. Tap to scroll down.

3. Tap .

4. Define the Wi-Fi settings:

   • Network Name: (automatically formatted as follows: "Pro_" followed by the unit hardware ID.)

   • Frequency Band: 2.4GHz or 5.0GHz.

   • Channel: Select the channel used (dynamic list according to the frequency band).

     • 2.4GHz: channel 1 to 11.

     • 5.0GHz: channel 36, 40, 44 and 48.



       Note

       In Access Point mode, 5GHz band is not available for Armenia, Belarus, Kazakhstan, Kyrgyzstan, and Russia.

   • Password: By default: Password.

5. Tap and select ADVANCED+.

6. Define IP settings (IP Address, Netmask and DNS server address).

7. Tap .

An icon indicates that the Wi-Fi Access Point is configured:

• A Wi-Fi Access Point is configured

• At least one client is connected to the Access Point

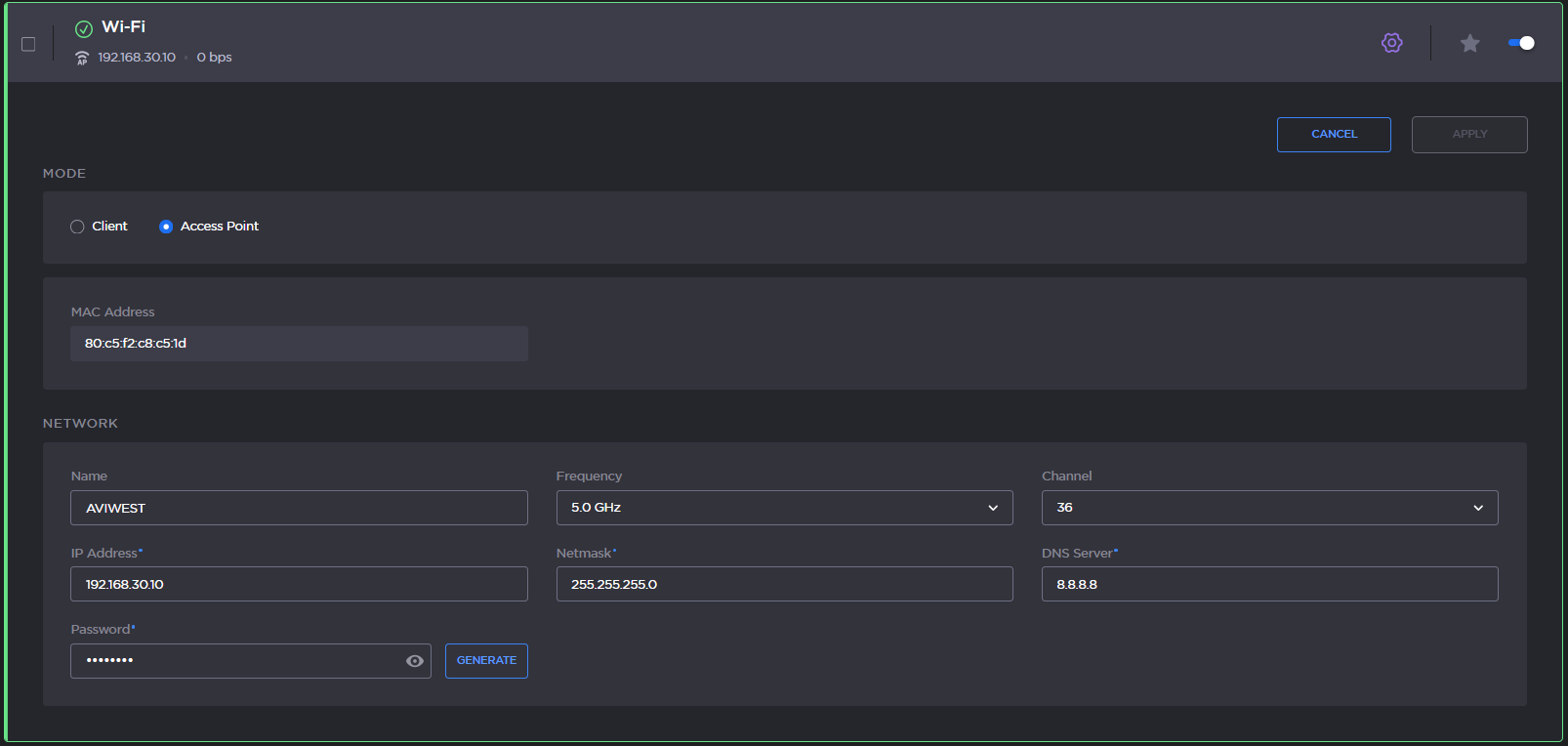

1. On the dashboard in the Networks section click  in the Wi-Fi entry.

2. In the Mode section, select Access Point.




3. Define the Wi-Fi settings in the Network section.

   • Name: (automatically formatted as follows: "ProductSeries_" followed by the unit hardware ID.)

   • Frequency Band: 2.4GHz or 5.0GHz.

   • Channel: Select the channel used (dynamic list according to the selected frequency band).

     • 2.4 GHz: channel 1 to 11.

     • 5.0 GHz: channel 36, 40, 44, and 48.



       Note

       In Access Point mode, the 5-GHz band is not available for Armenia, Belarus, Kazakhstan, Kyrgyzstan and Russia.

   • Enter the desired IP Address, the Netmask, and the DNS Server Address.

   • Password: By default: Password. Click the Generate button to create a new random password Click the



     icon to show the generated password.

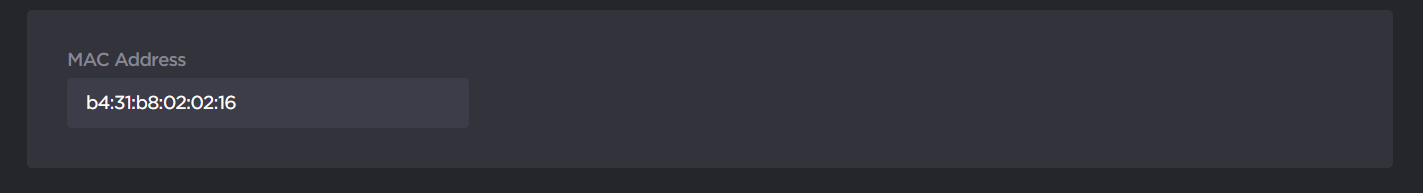

     Above these parameters, the MAC address assigned to the device's interface is indicated:



4. Click the Apply button.
