Properties

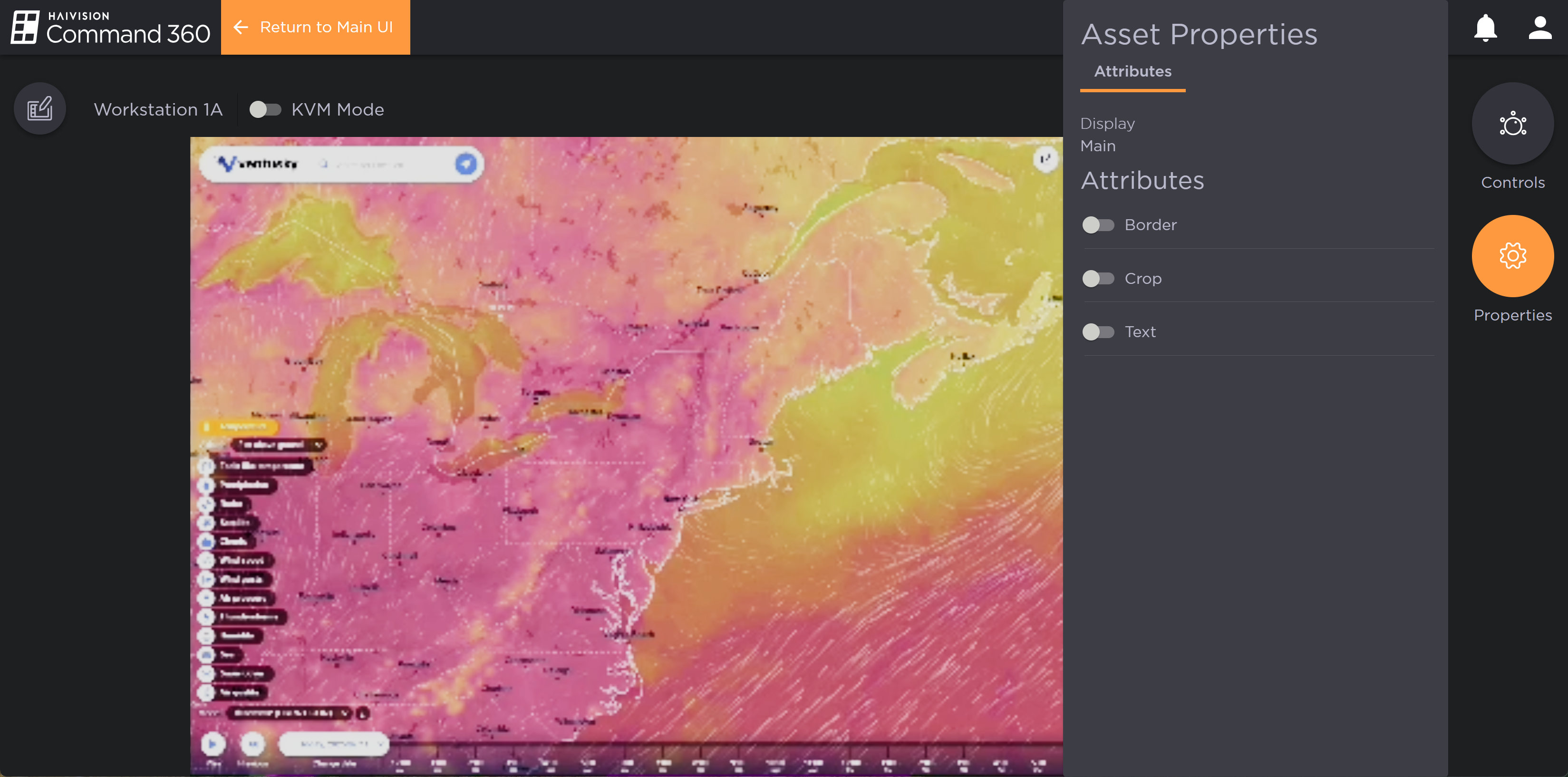

The Asset Properties button becomes available in the Activity Interface after entering the Modify Asset view. Use the Attributes toggles to edit the asset's appearance on the display.

Attributes

Asset Attributes, designated within the Properties window of the asset, allow users to add a border, crop content, and add text.

To edit asset attributes:

1. Drag and drop an asset from the asset tray onto the display.

2. Click on the asset. An orange border appears around the selected asset.

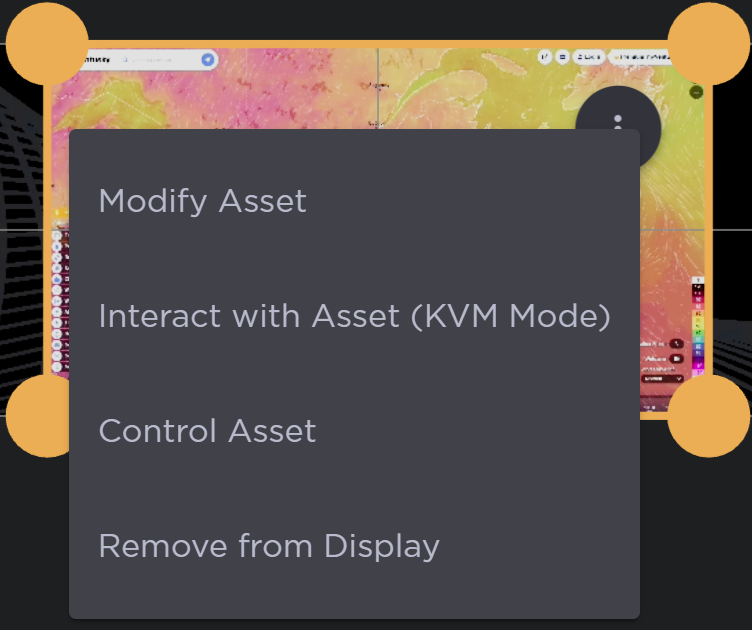

3. Click the icon > Modify Asset.



4. Click the Properties button to the right of the asset.



5. Under Attributes, click the toggle of the attribute you wish to enable. See the sections below for instructions on enabling and editing attributes.

Add Border

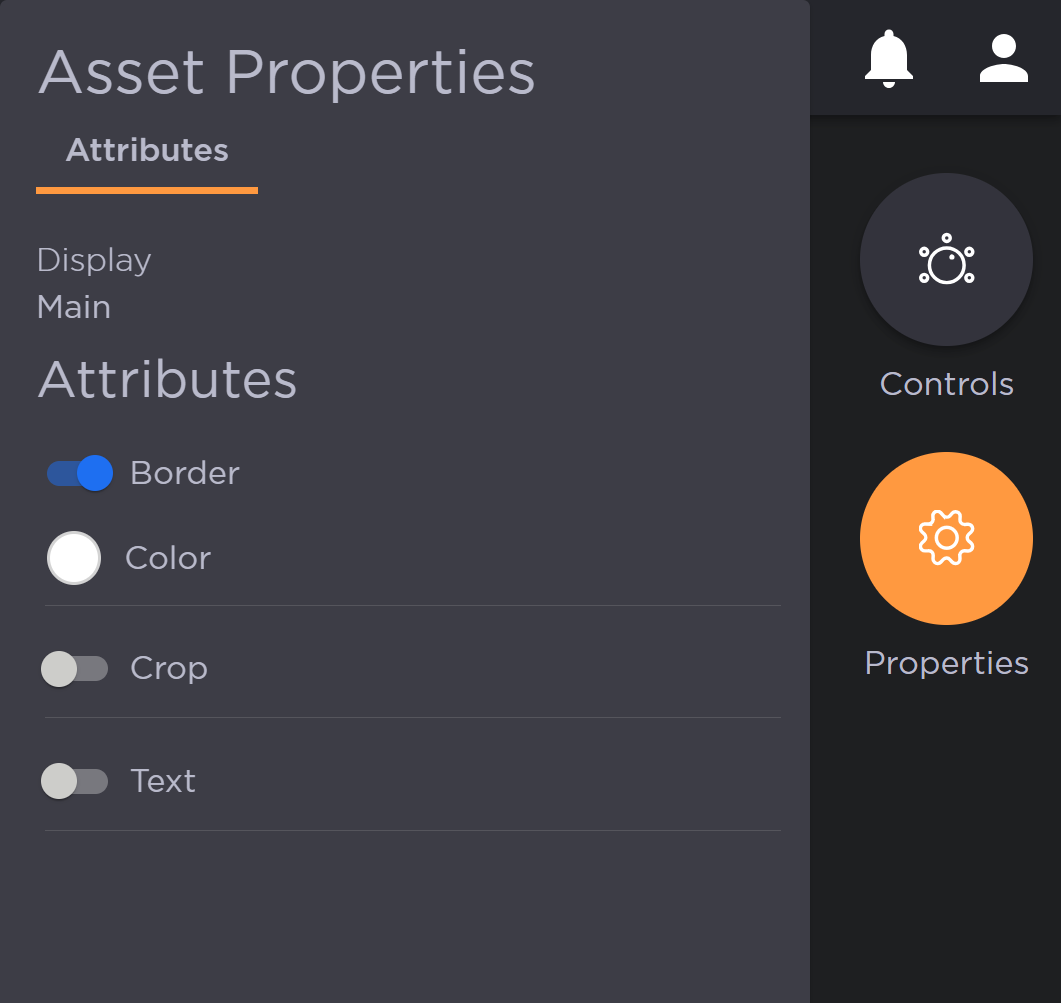

1. Click the Border toggle button to enable modifications.



2. Click the Color indicator beneath the toggle. Select a color.

3. Click anywhere outside of the Properties panel, then click Return to Main UI.

The border now appears around the asset on the display.

Crop Content

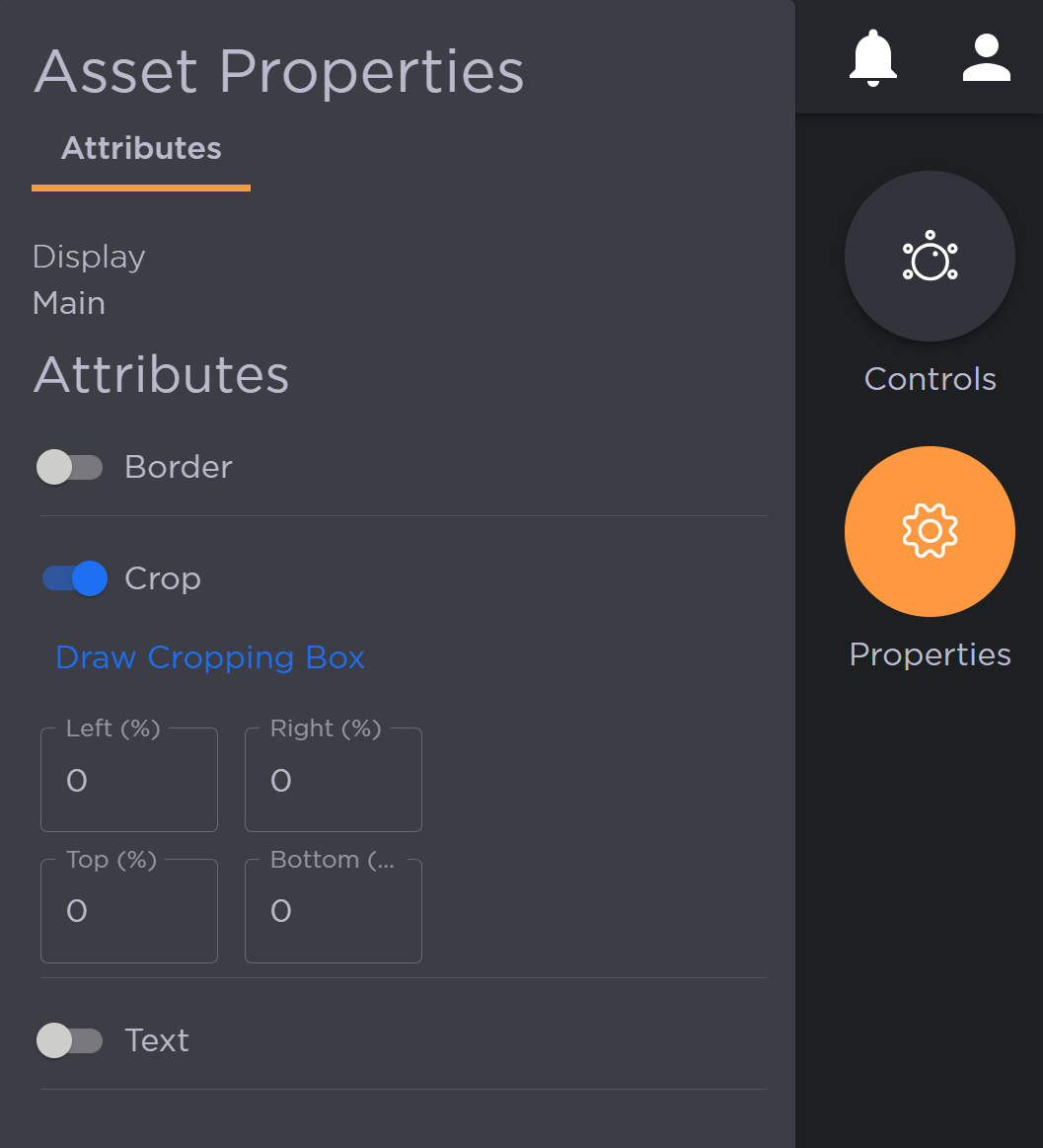

1. Click the Crop toggle button to expand cropping options.

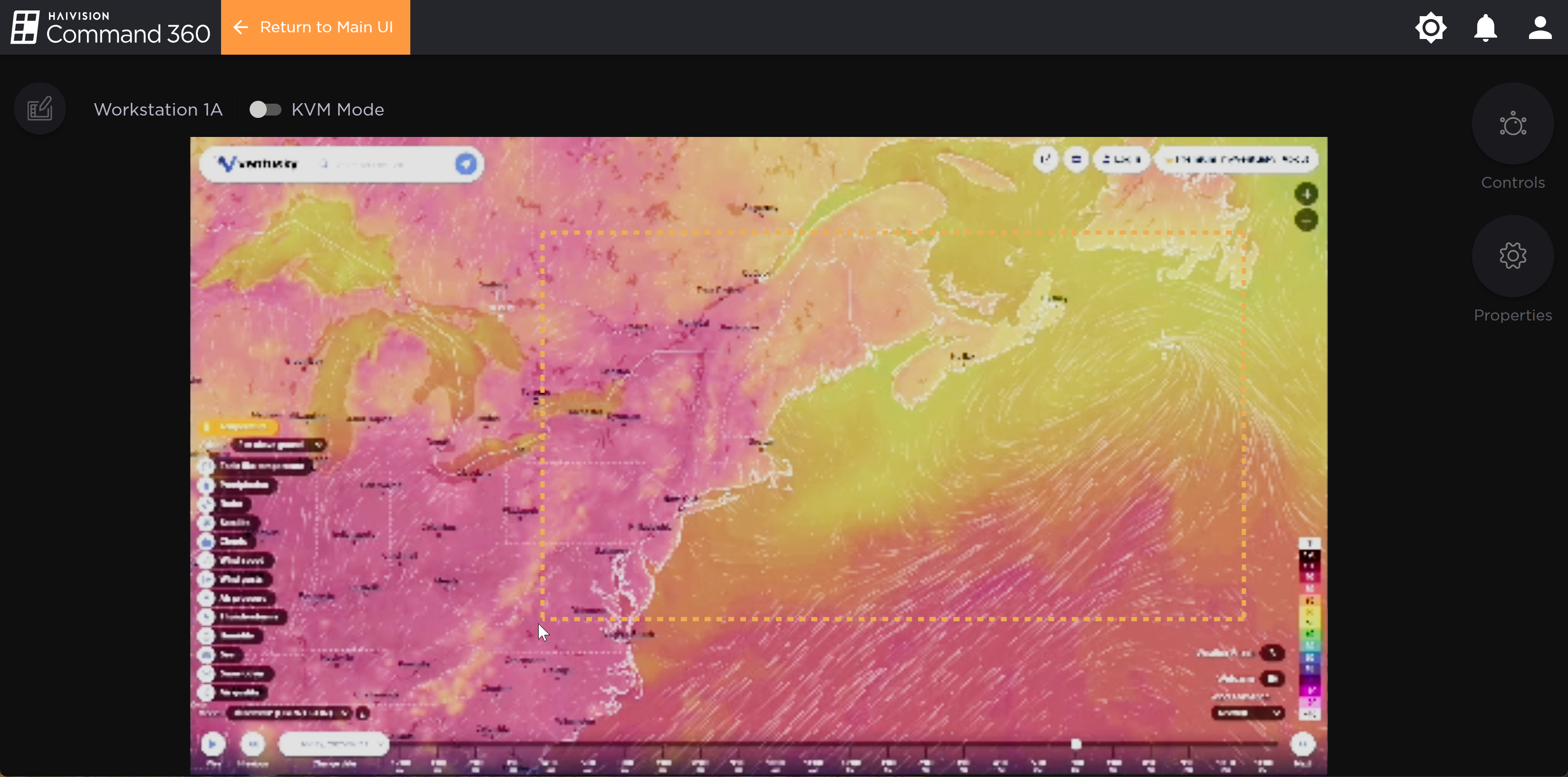

2. Select Draw Cropping Box to draw a free-hand square or rectangular box, that when cropped, displays the content inside the box on the canvas. The attributes window closes so the cropped image is fully visible.




   If unsatisfied with the results, click on the Properties button again and click Reset Cropping.

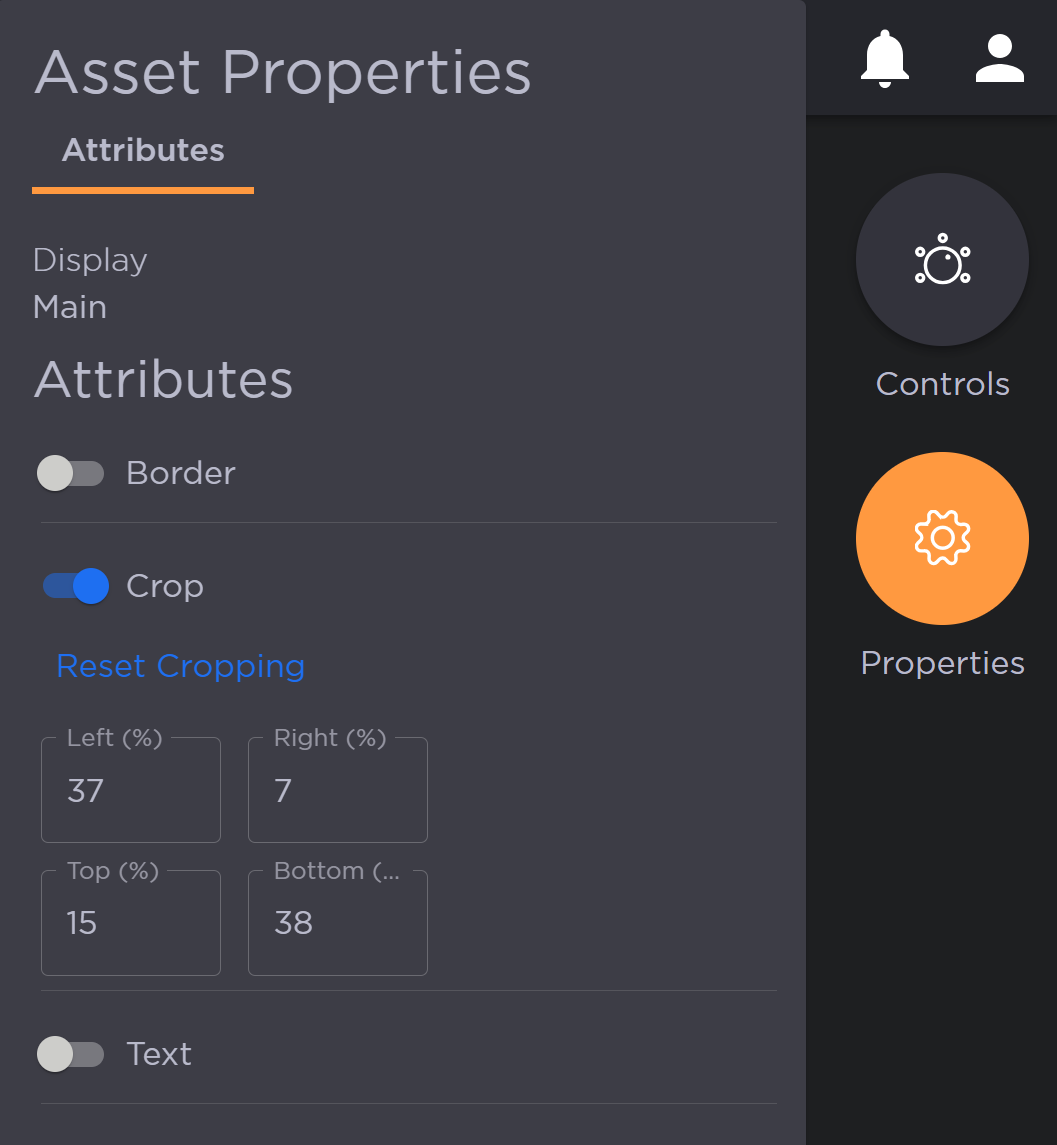

   Note that after the cropping, the Left/Right and Top/Bottom percentages are populated. These can be manually entered in lieu of the draw croppingoption.





   3. Click anywhere outside of the Asset properties window, then click Return to Main UI.

Add Text

To add text:

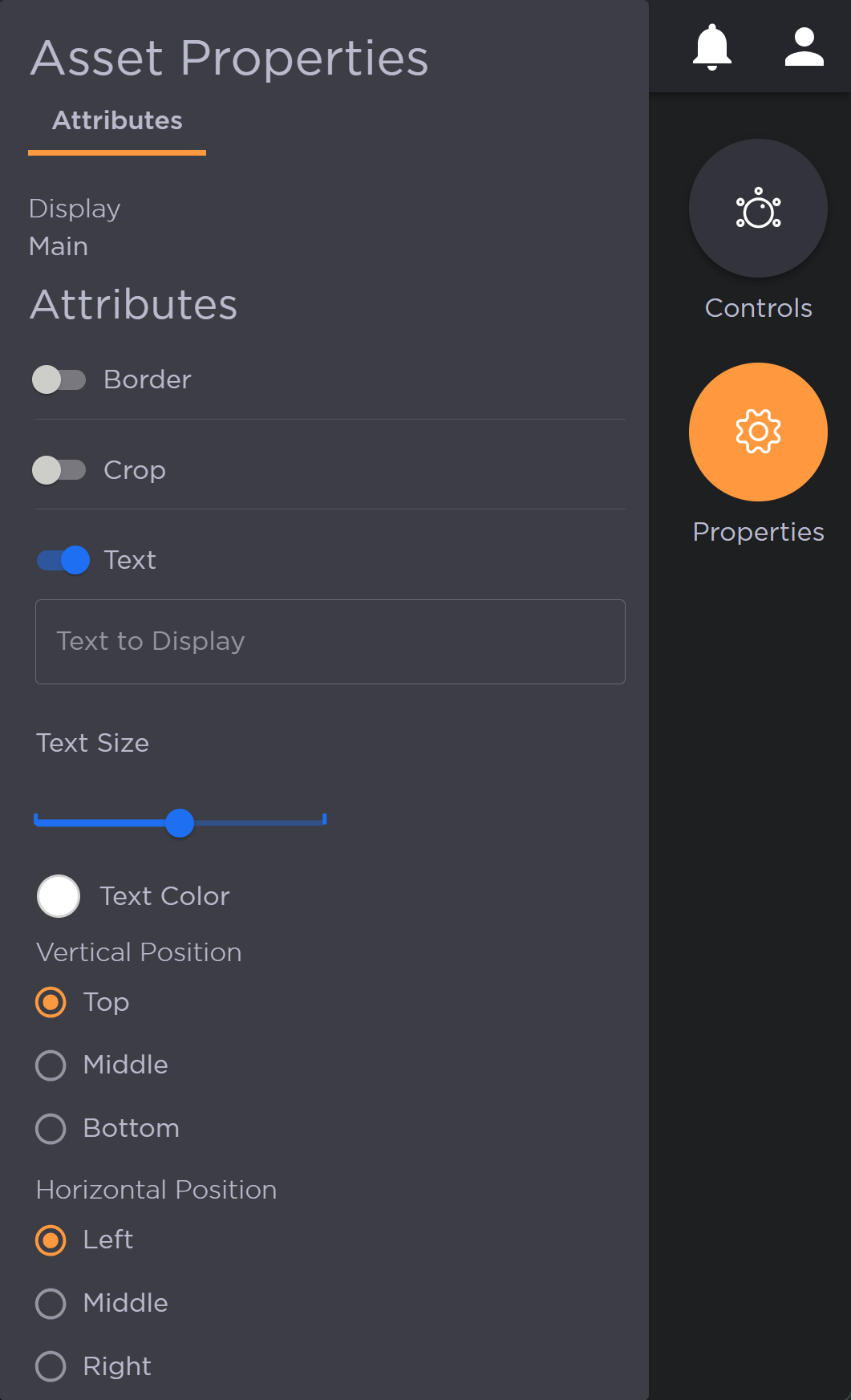

1. Click the Text toggle to expand text options.



2. Enter the Text to Display.

3. Drag the slider to edit the Text Size.

4. Click the color icon to edit Text Color.

5. Select the Vertical Position: Top, Middle, or Bottom.

6. Select the Horizontal Position: Left, Middle, or Right.

7. Click anywhere outside of the Asset properties window, then click Return to Main UI.
