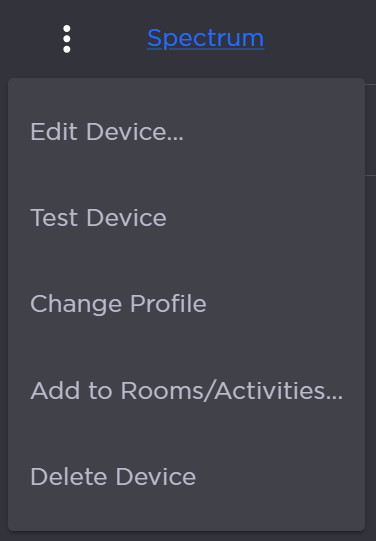

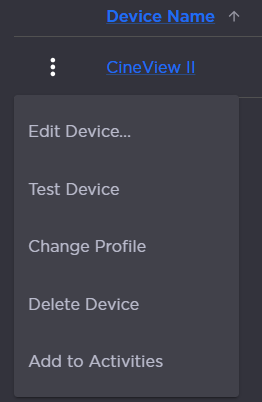

Device Options

Clicking the

icon on the far left of a device listing produces a drop-down menu for various device options. This topic describes the tasks associated with each option.

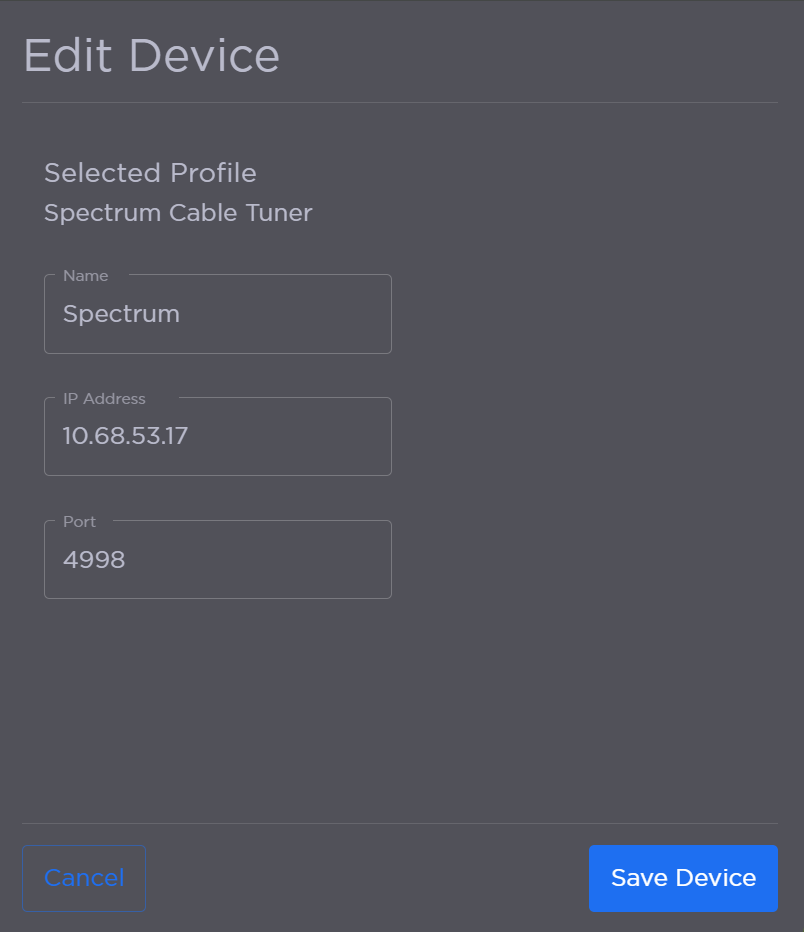

Edit Device

To edit device details:

1. Click theicon on the far left of a device listing and select Edit Device.



   From here, you can edit:

   • Name

   • IP Address

   • Port


2. Click Save Device when finished.

Test Device

The Test Device feature allows you to control a device that is in the same physical room or whose interface is accessible in some capacity. The device controls do not provide any feedback in the Command 360 interface.

To control a device:

1. On the Room Controls page, click theicon on the far left of a device listing.

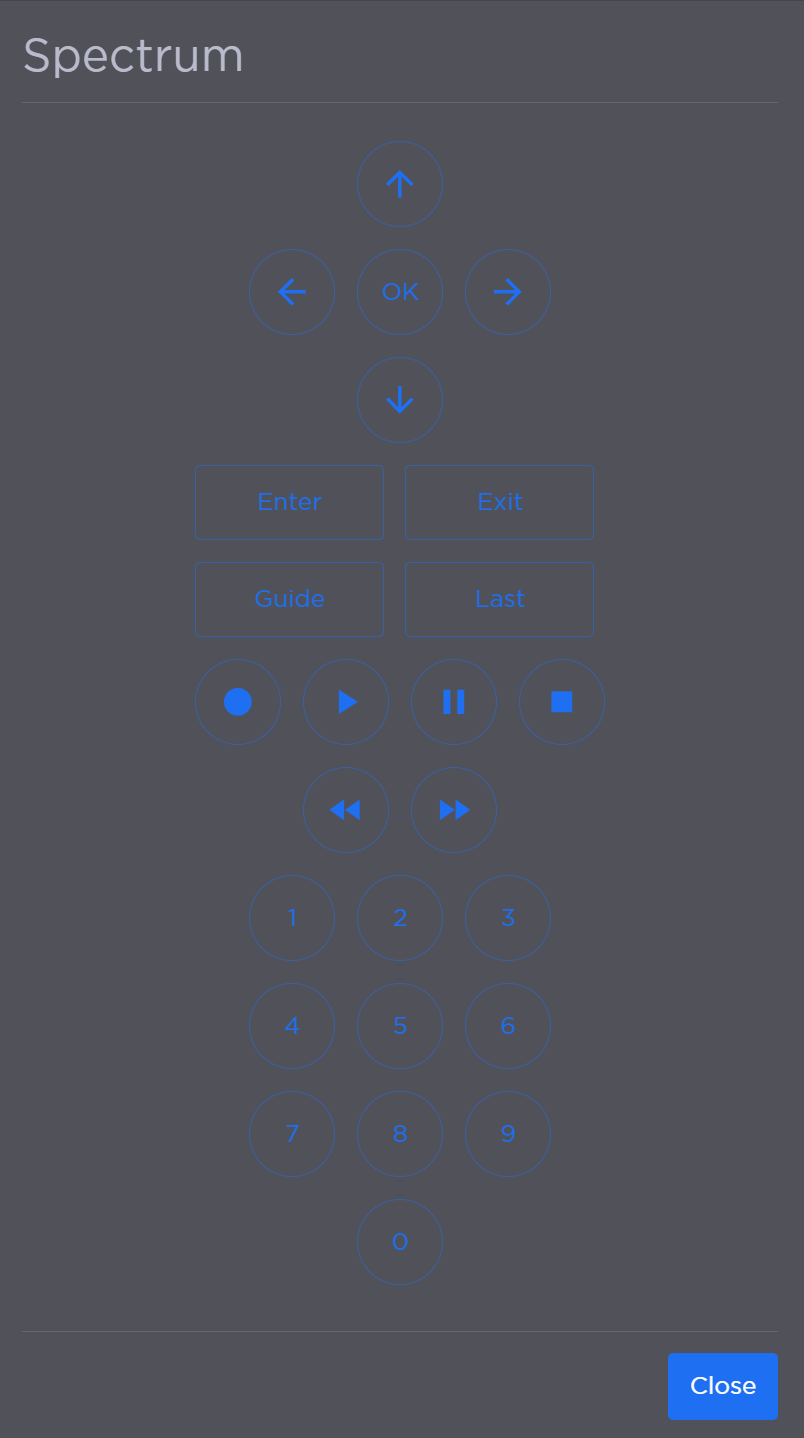

2. Click Test Device. A control UI opens on the right.



3. Use the controls to interact with the device.

4. Click Close when finished.

Change Profile

Changing the profile for a device allows you to easily swap control UIs and actions available for it.

To change a device's profile:

1. On the Room Controls page, click theicon on the far left of a device listing.

2. Click Change Profile.

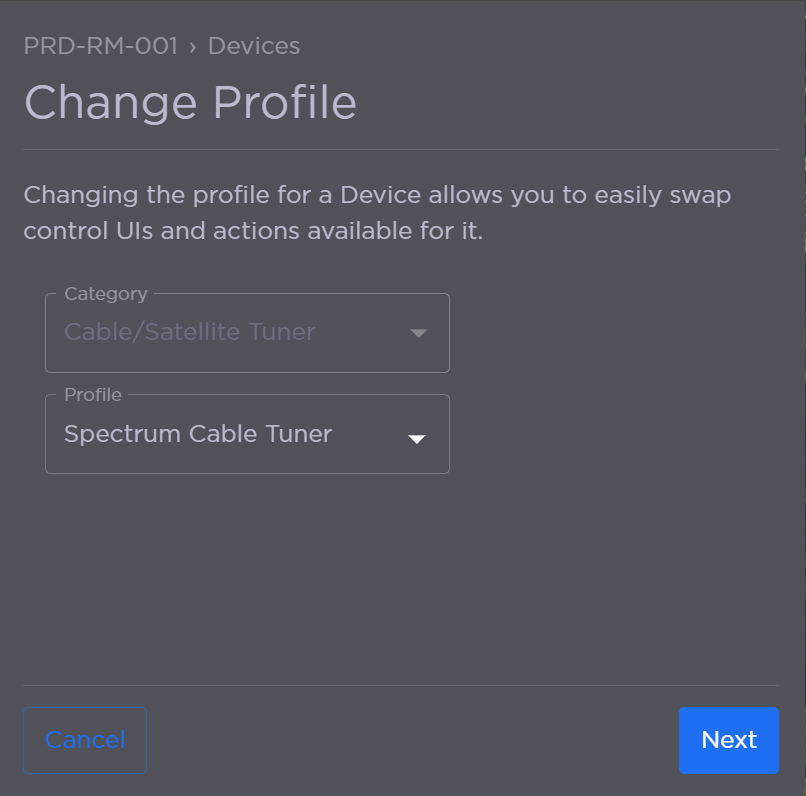

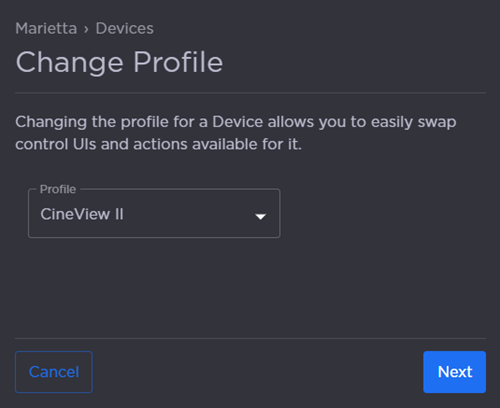

3. Select a new Profile from the drop-down menu.



4. Click Next.

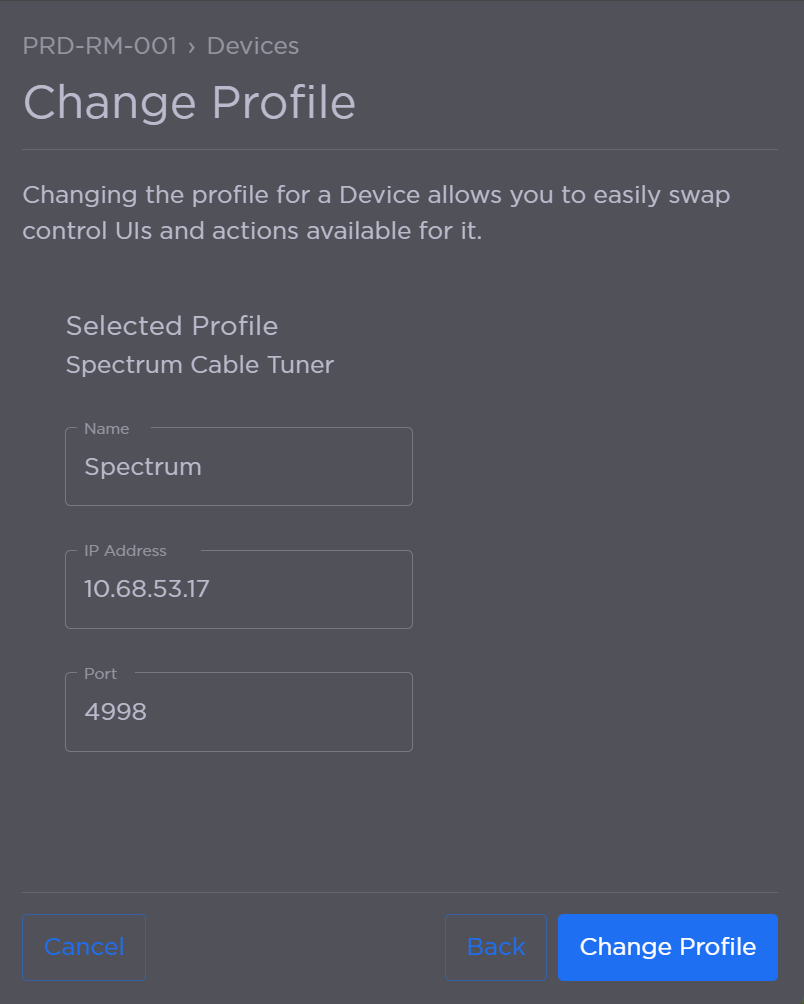

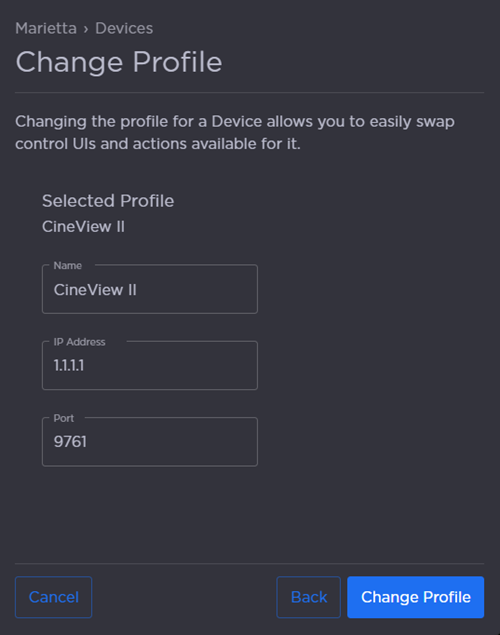

5. If needed, edit the device's Name, IP Address, and Port.



6. Click Change Profile when finished.

Delete Device

To delete a device:

1. On the Room Controls page, click theicon on the far left of the device listing.

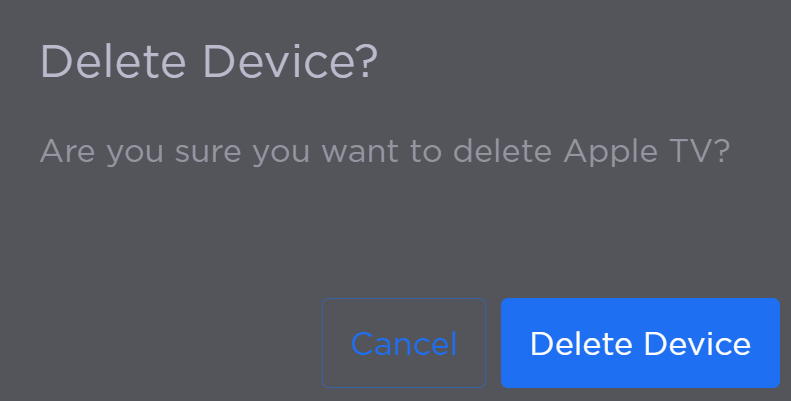

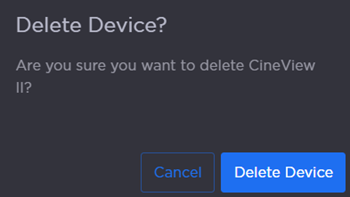

2. Click Delete Device. A confirmation prompt appears.



3. Click Delete Device to confirm.

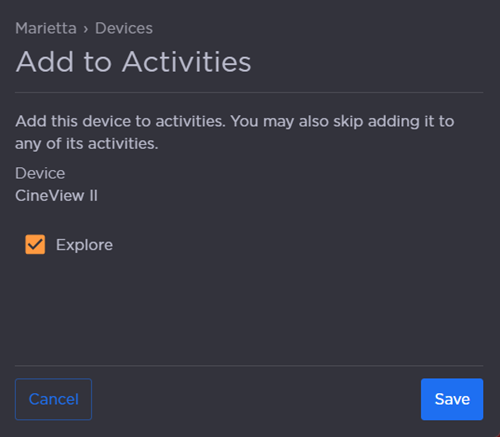

Add to Activities

To add a device to an activity:

1. On the Room Controls page, click theicon on the far left of a device listing.

2. Click Add to Activities.

3. Click the checkbox next to each activity to which you are adding the device.



4. Click Save when finished.
