Selecting a Destination Profile

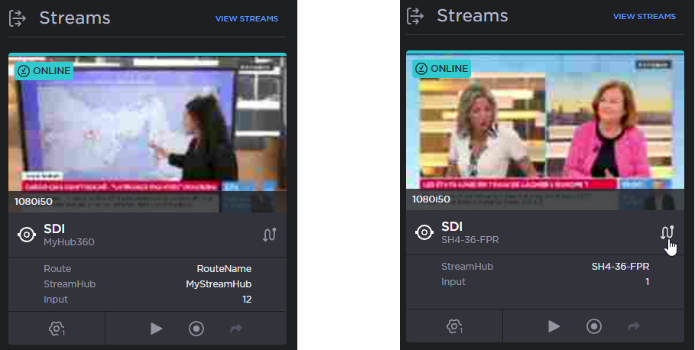

• When connected to a StreamHub, information such as StreamHub name and Input appear on the dashboard and on the unit panel.

• When connected to a Hub360, booking information such as Route, StreamHub name and StreamHub input appear on the dashboard and on the unit panel.

Unit Panel

1. From the Home menu, turn the wheel to select > .

2. A green dot () indicates the currently selected profile.

3. Turn the wheel to select another destination profile.

4. Press the wheel to confirm your choice.

5. Press the wheel again to confirm the modification of the destination profile.

Web Interface

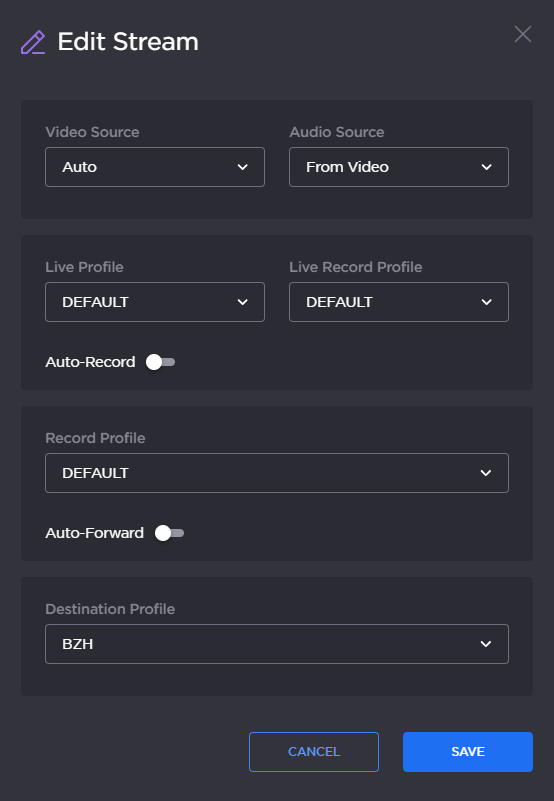

1. From the dashboard in the Streams section, click the icon. The encoder's current settings appear:



2. Select a pre-defined profile in the Destination Profile dropdown.

Tip

If none appear, see Adding a Destination Profile to add a profile.

3. Click the Save button.
