Quick Access Via a QR Code

1. Use the wheel to select > > Configuration > Mobile access.
   The unit starts the Wi-Fi Access Point mode.

2. Scan the QR code to connect to the access point.

3. Use the wheel to select .

4. Scan the second QR code to access the Web Interface.

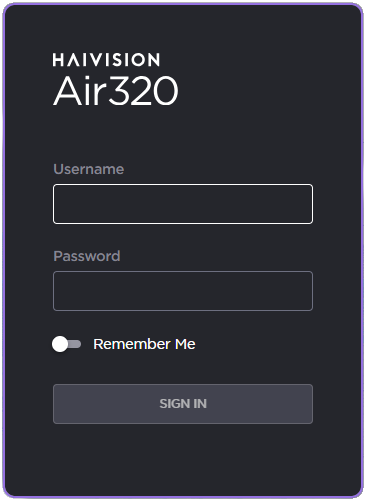

   The sign-in screen opens:

5. Enter the username and password.

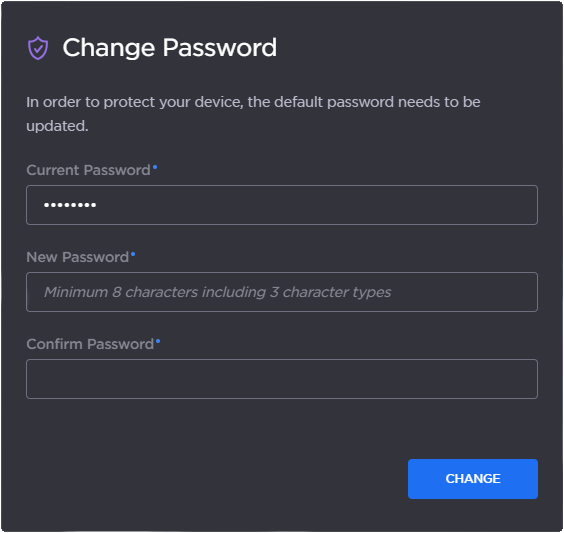

6. If this is your first sign-in to the transmitter, you are prompted to change the default password. Enter a new password following the recommendations in the New Password field and click the Change button.

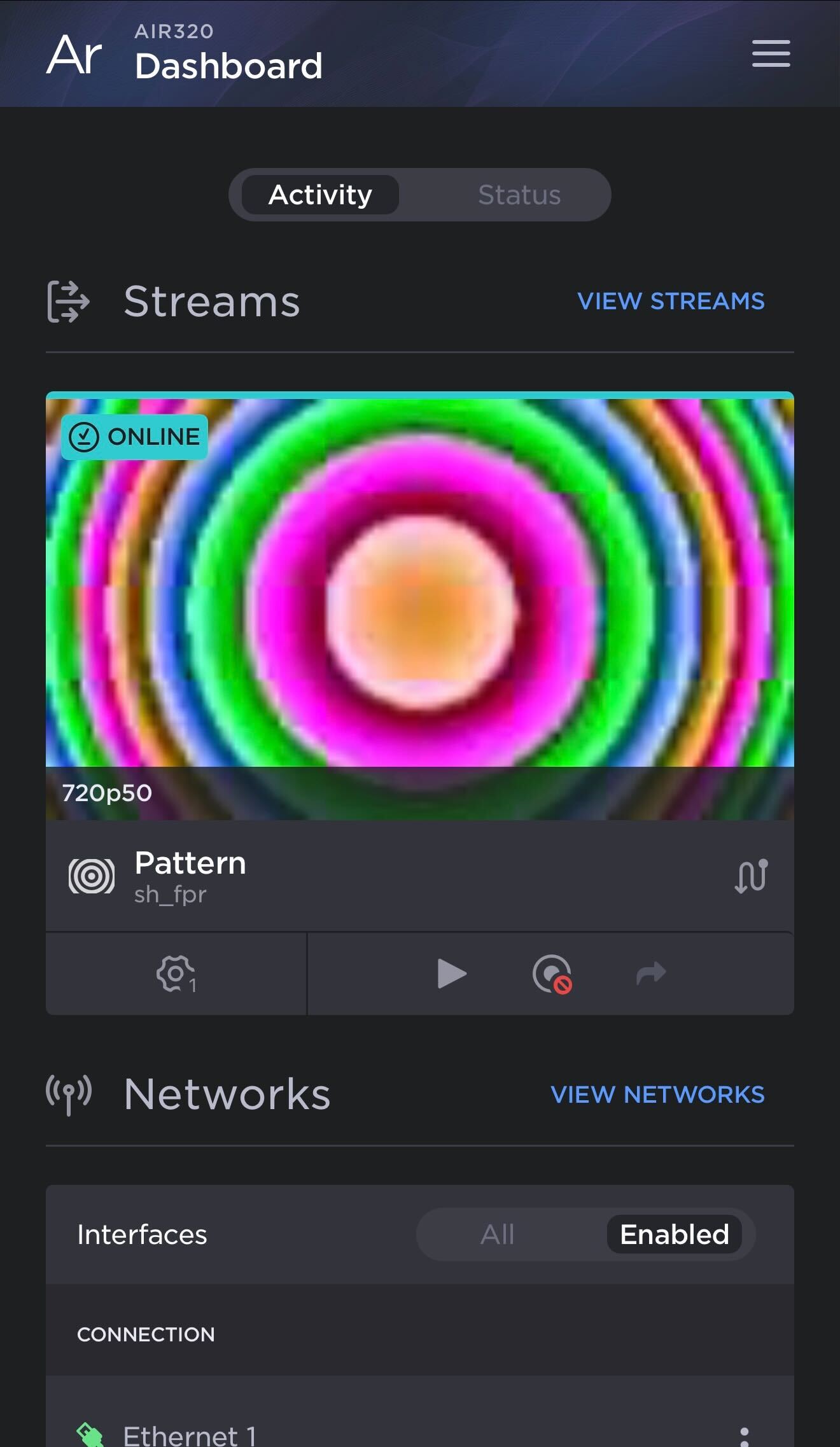

The unit's web interface opens.
