Configuring a Wi-Fi Access Point

See the sections below to configure the Wi-Fi access point.

Unit Panel

1. From the Home menu, tap > Wi-Fi > Mode > Access Point.

2. Tap to scroll down.

3. Tap .

4. Define the Wi-Fi settings:

   • Network Name: (automatically formatted as follows: "Pro_" followed by the unit hardware ID.)

   • Frequency Band: 2.4GHz or 5.0GHz.

   • Channel: Select the channel used (dynamic list according to the frequency band).

     • 2.4GHz: channel 1 to 11.

     • 5.0GHz: channel 36, 40, 44 and 48.

       Note

       In Access Point mode, 5GHz band is not available for Armenia, Belarus, Kazakhstan, Kyrgyzstan and Russia.

   • Password: By default: Password.

5. Tap and select ADVANCED+.

6. Define IP settings (IP Address, Netmask and DNS server address).

7. Tap .

An icon indicates that the Wi-Fi Access Point is configured:

• A Wi-Fi Access Point is configured

• At least one client is connected to the Access Point

Web Interface

1. On the dashboard in the Networks section, click in the Wi-Fi line.

2. In the Mode section, select Access Point.



3. Define the Wi-Fi settings in the Network section.

   • Name: (automatically formatted as follows: "ProductSeries_" followed by the unit hardware ID)

   • Frequency Band: 2.4GHz or 5.0GHz.

   • Channel: Select the channel used (dynamic list according to the selected frequency band).

     • 2.4GHz: channel 1 to 11.
       5.0GHz: channel 36, 40, 44 and 48.

   • Enter the IP Address, the Netmask, and the DNS Server Address.

   • Password: By default: Password. Click the Generate button to create a new random password Click the



     icon to show the generated password.

Note

• In Access Point mode, 5GHz band is not available for Armenia, Belarus, Kazakhstan, Kyrgyzstan and Russia.

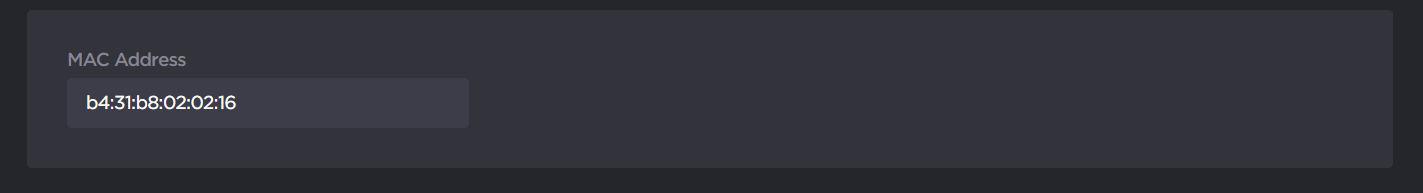

• Above these parameters, the MAC address assigned to the device's interface is indicated:

4. Click the Apply button.
