The power connectors for the Single-Height Chassis have the following pinout:

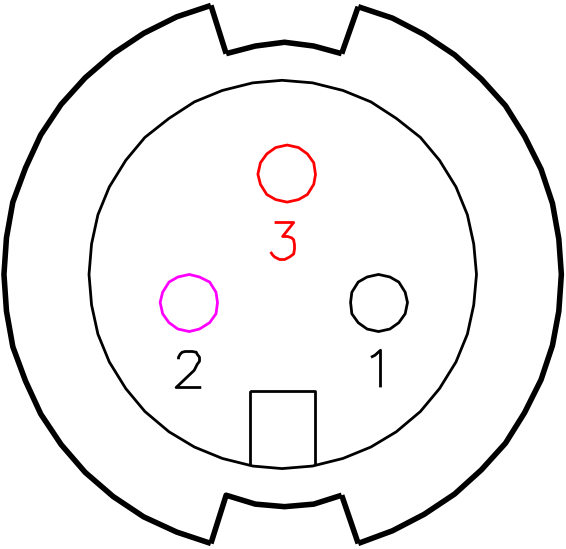

Single-Height - Power Connector
| Pin # | Description (Conxall P/N 16282-3SG-318) | |
|---|---|---|
| 1 | Reserved / Not Connected |
|
| 2 | Ground | |
| 3 | VCC=+12VDC | |
The power connectors for the Single-Height Chassis have the following pinout:
| Pin # | Description (Conxall P/N 16282-3SG-318) | |
|---|---|---|
| 1 | Reserved / Not Connected |
|
| 2 | Ground | |
| 3 | VCC=+12VDC | |
