_MB1_MB2_Power_Connector_Pinouts_Part_Nos

The power connectors for the Single-Height and Dual-Height Chassis have the following pinouts:

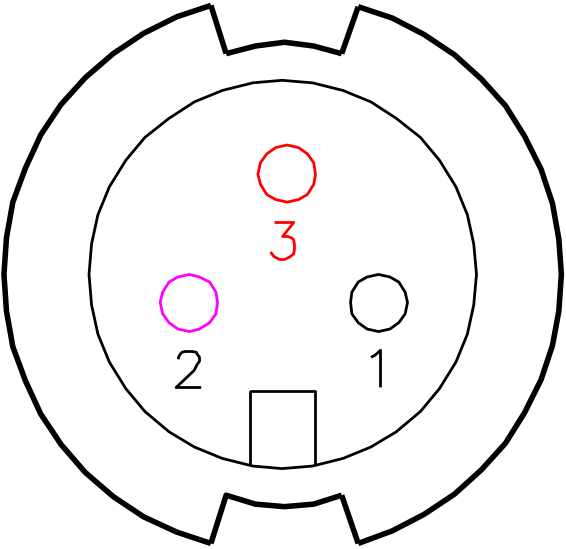

Single-Height - Power Connector

Pin #	Description (Conxall P/N 16282-3SG-318)
1	Reserved / Not Connected
2	Ground
3	VCC=+12VDC

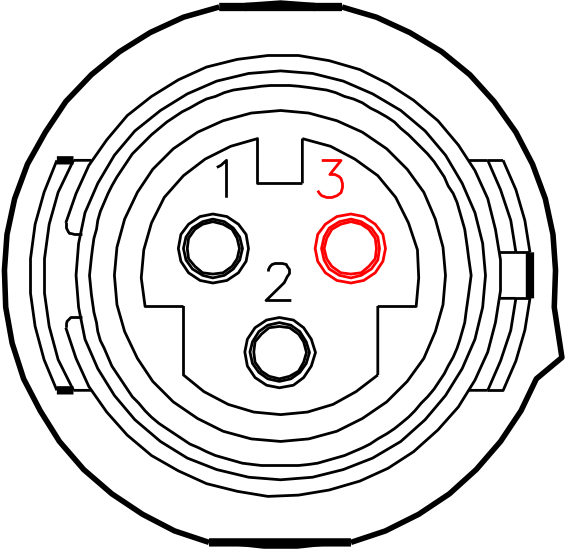

Dual-Height - Power Connector

Pin #	Description (Hirose P/N HR30-6R-3P(71))
1	Reserved / Not Connected
2	Ground
3	12VDC (+V)
