_Ethernet Connector_X1
The following tables provide the manufacturer names, part numbers, and pinouts for the Makito X1 Rugged Network connectors.
 | On Unit | Mating Connector | |
|---|---|---|---|
Manufacturer | LEMO | LEMO | |
Connector Type | Network Connector | Network Connector | |
Part Number | HEP.2M.312.XLNP | FGP.2M.312.XLCT |
Network Connector Pinout v2 | |
|---|---|
Contact # | Description |
1 | ETH B+ |
2 | ETH B- |
3 | ETH C+ |
4 | ETH C- |
5 | ETH D+ |
6 | ETH D- |
7 | ETH A+ |
8 | ETH A- |
9 | GND |
10 | SYS_RST# |
11 | N/C |
12 | N/C |
 | On Unit | Mating Connector | |
|---|---|---|---|
Manufacturer | Hirose | Hirose | |
Connector Type | Network Connector | Network Connector | |
Part Number | LF10WBRB-12S | LF10WBP-12P(31) |

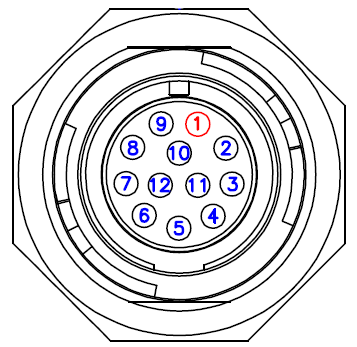

Network Connector Pinout | |
|---|---|
Contact # | Description |
1 | ETH A+ |
2 | ETH A- |
3 | ETH B+ |
4 | ETH B- |
5 | ETH C- |
6 | ETH C+ |
7 | ETH D- |
8 | ETH D+ |
9 | N/C |
10 | N/C |
11 | SYS_RST# |
12 | GND |
