Configuration Settings

Connection settings consist in a set of parameters that allow connecting devices to the StreamHub.

Note

Make sure that you are logged in to StreamHub as an Administrator.
These connection settings must fit the ones that you set previously when installing the server.

To configure connection settings:

In the menu bar, click on Settings.
Click the Network submenu.

Settings are split into 3 tabs : Product, NDI, Advanced.

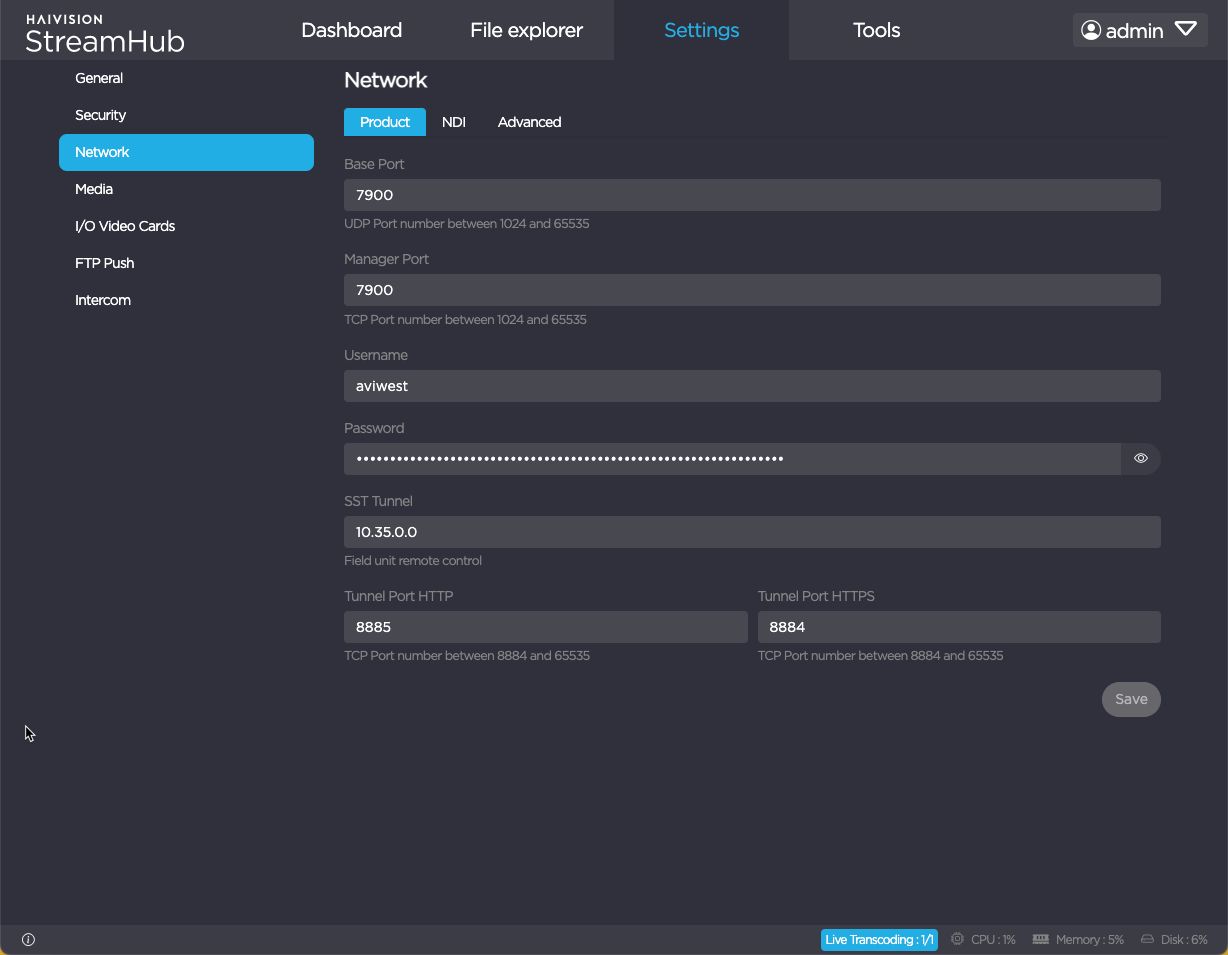

Product

Under the Product tab, you can adjust the following settings:

Name	Description
Base Port	Port used to connect field units to the StreamHub. The UDP base port must be within the 1024 – 65535 range. This port should be reserved for this usage. It should not be already in use by an IP Input.
Manager Port	Port used to connect the StreamHub to the Manager. The TCP port must be within the 1024 – 65535 range. The following ports are forbidden: 1935 (RTMP), 8181 (SNMP Web UI), 8884-8885 (Tunneling), 8886-8887 (SIP), 8888 (Connection), 8891 (RTSP), 8893 (API).
Username	Username to be used when connecting field units to StreamHub. It must include 6 to 20 characters, letters and digits (space and special characters are not allowed except underscore).
Password	Password to be used when connecting field units to StreamHub. It must include 6 to 20 characters, letters and digits (space and special characters are not allowed except underscore).
Enable AES	When your license includes the option, you can decide to enable AES encryption. Please refer to the Configuring AES encryption page.
SST Tunnel	IP address used to connect the StreamHub to field units when in remote control mode. By default, the IP address is 10.35.0.0. It should be modified only if local network is in 10.35.x.x. You should make sure that the address is not within the local network range.
Tunnel Port	TCP port used for the remote connection to field units web interface.

Important

Changing the Base Port or the Manager Port requires modifying the configuration of the router or firewall to which is connected the StreamHub server according to your changes (for more details, please refer to the Installation & Configuration Guide ).

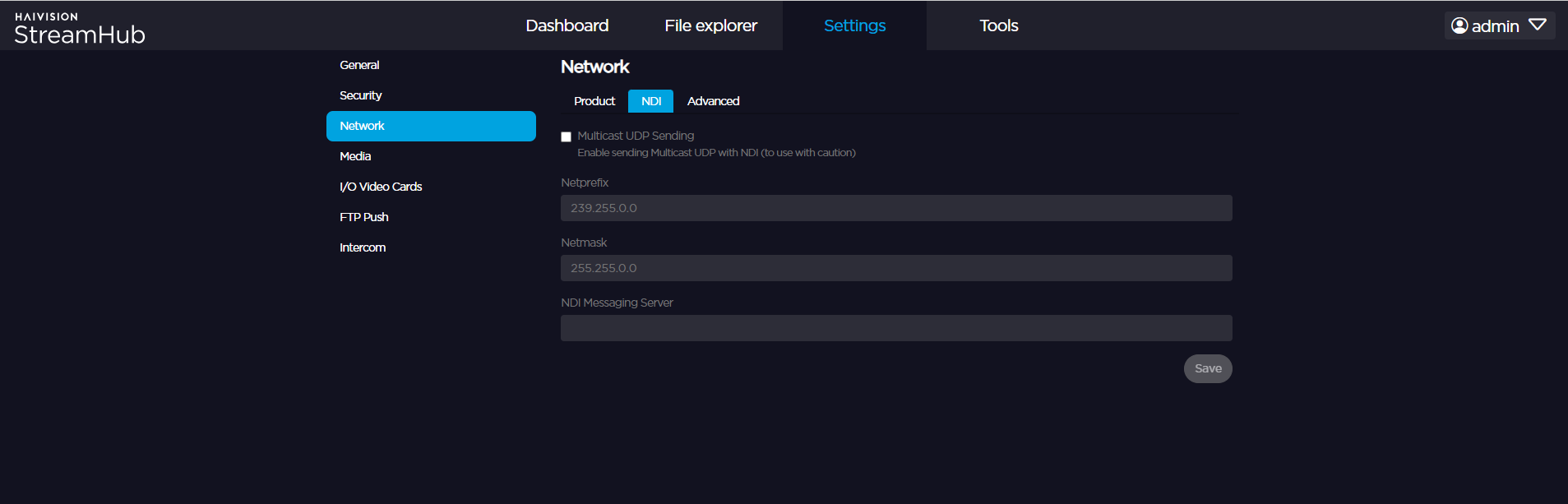

NDI

Under the NDI tab, enter the settings to set multicast UDP sending.

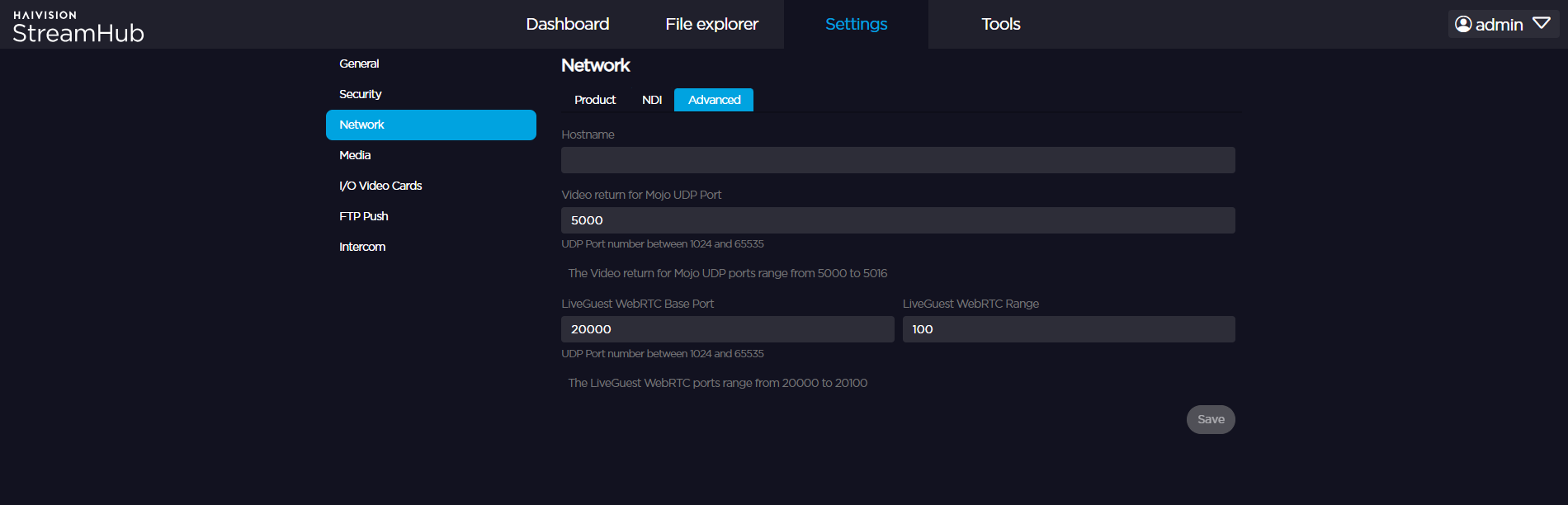

Advanced

Under the Advanced tab, set the connection ports used by Video Return and Liveguest functions.

Note

When clicking on Save, the StreamHub application restarts to take changes into account.
