Power Connector Pinouts (Single-Height Chassis)

The power connectors for the Single-Height Chassis have the following pinout:

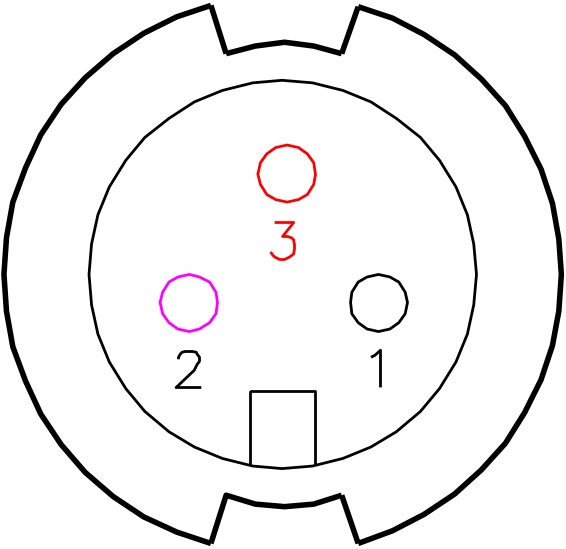

Single-Height - Power Connector

Pin #Description (Conxall P/N 16282-3SG-318)
1Reserved / Not Connected


Single-Height Power Connector


2Ground
3VCC=+12VDC
