LED Status Indicators

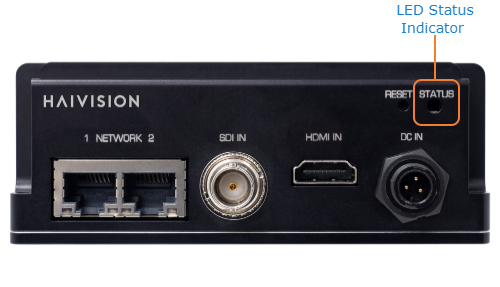

The LED colors and flashing (blinking) speed indicate the status (operational state) of the Makito FX encoder.

The following sections list the status LED behaviour for the Makito FX encoder:

General

Function	Description	Indication
BOOTING/INITIALIZATION SEQUENCE	Green solid	Upon connection to a power source, booting/initialization sequence has begun (10 seconds).
	Green slow blinking	Booting/initialization sequence in progress.
	Green solid	Booting/initialization sequence complete (No fault/Normal Operation).
STATUS	Off	No power.
	Green fast blinking	Reset button is pressed for less than four seconds. If the Reset button is not pressed, there is a power fault.
	Red fast blinking	Reset button is pressed for more than four seconds (Factory Reset enabled).
	Red slow blinking	Reset button is released after the Red fast blinking state (executing Factory Reset).

Network Port

Function	Description	Indication
LINK	Off	Not connected
	Green blinking once per second	Connected at 10 Mbps
	Green blinking twice per second	Connected at 100 Mbps
	Green blinking three times per second	Connected at 1000 Mbps
ACT	Off	No activity
	Green intermittent	Little activity (e.g., management). The LED should be lit when there is activity.
	Green solid	Intense activity (e.g., transmitting video traffic)
