Audio/Video

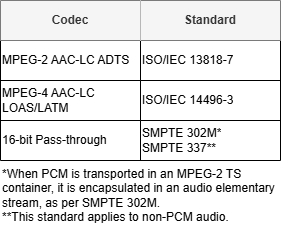

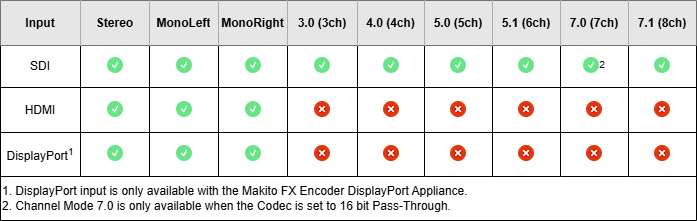

The MFX supports audio encoding of up to 4 stereo pairs (8 channels).

• SD-SDI (SMPTE 272M)

• HD/3G/6G/12G-SDI (SMPTE 299M)

• HDMI – 1 stereo pair (2 channels)

• Mono: 12-288 kbps

• Stereo: 14-576 kbps

• 3.0: 16-864 kbps

• 4.0: 18-1152 kbps

• 5.0: 20-1440 kbps

• 5.1: 20-1440 kbps

• 7.1:  25-2016 kbps

From 20 Hz to 22 kHz.

48 kHz

2

• 264/AVC (MPEG-4 AVC part 10, ISO/IEC 14496-10)

  • Profiles: Baseline, Main, High up to Level 5.2

• 265/HEVC (ISO/IEC 23008-2)

  • Profiles: Baseline, Main, High up to Level 5.1

• SD-SDI (SMPTE 259M-C — 270 Mbps)

• HD-SDI (SMPTE 292M, 274M, 296M — 1.485 Gbps)

• 3G-SDI (SMPTE 425M, 424M Level A — 970 Gbps)

• 6G-SDI (SMPTE 2081 — 6 Gbps)

• 12G-SDI (SMPTE 2082 — 12 Gbps)

• HDMI (1.4/2.0) + HDCP (1.4/2.3)

The following video resolutions and frame or field rates are supported:

• 3840x2160p @ 60/59.94/50/30/29.97/25/24/23.98 frames/sec

• 1920x1080p @ 60/59.94/50/30/29.97/25/24/23.98 frames/sec

• 1920x1080i @ 60/59.94/50 fields/sec *

• 1280x720p @ 60/59.94/50/30/29.97/25/24/23.98 frames/sec

• 720x576i @ 50 fields/sec *

• 720x480i @ 60/59.94 fields/sec *

• Only for native HEVC output (must be de-interlaced for H.264 output).

The following computer resolutions and frame or field rates are supported:

• 4096x2160p @ 30 frames/sec

• 3840x2400p @ 30 frames/sec

• 3440x1440p @ 60 frames/sec

• 2560x1440p @ 60 frames/sec

• 2048x1080p @ 60 frames/sec

• 1920x1200p @ 60 frames/sec

• 1680x1050p @ 60 frames/sec

• 1600x1200p @ 60 frames/sec

• 1600x900p @ 60 frames/sec

• 1440x900p @ 60 frames/sec

Note

Computer resolutions are available when using HDMI input interfaces.

4:2:0 or 4:2:2

8-bits or 10-bits per pixel

BT.709, BT.2020 (WCG)

SDR and HDR (HLG or PQ/ST-2084)

I, IP, IBP, IBBP, IBBBP, IBBBBP

Decimation / Interpolation available

Up to 2 x 1920x1080p60 or 1 x 3830x2160p60

• Capped variable bit rate (CVBR)

• Constant bit rate (CBR)

Available

Available
