Network Connector

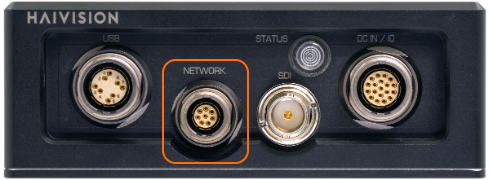

The following tables provide the manufacturer names, part numbers, and pinouts for the KX1 Network connector.
Network Connector | |||
|---|---|---|---|
 | On Unit | Mating Connector | |
Manufacturer | LEMO | LEMO | |
Connector Type | Network Connector | Network Connector | |
Part Number | HEN.1M.308.XLNP | FGN.1M.308.XLCT | |
Network Connector Pinout | |
|---|---|
Contact # | Signal |
1 | ETH A+ |
2 | ETH A- |
3 | ETH B+ |
4 | ETH C+ |
5 | ETH C- |
6 | ETH D+ |
7 | ETH D- |
8 | ETH B- |
