Inputs List View

The Inputs List view displays a summary of defined inputs for Kraken, including the Input Name, Connection (source) URL, and Status for each input. It also provides an option for you to delete an input.

Web Interface

To open the Inputs List View:

  1. Click Streaming on the sidebar and select the Inputs tab.

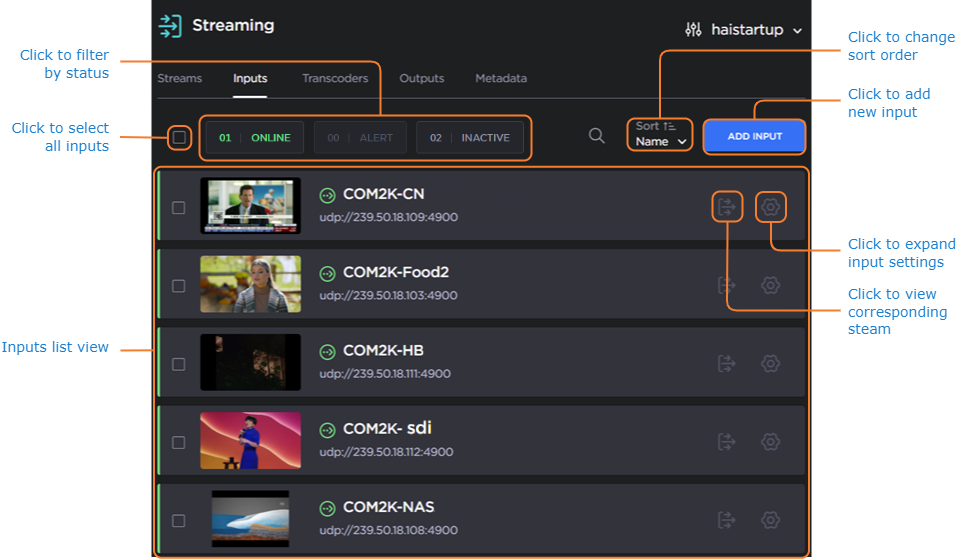

    The Inputs List view opens, as shown in the following example.
  2. From here you can perform the following tasks:
    • To add a new input, click the Add Input button. See Adding New Inputs
    • To filter the inputs list view by status, click either Streaming, Alert, or Inactive, in the status filter bar.
    • To modify the sort order, click the Sort dropdown menu. The default is set to sort by Name, in Ascending order.
    • To search for specific inputs, click the Search icon
       and type in key words to identify the input. If no related input is found, the search page will return No Search Results.
    • To view details or modify the settings for an input, click the Settings icon
      on the appropriate input panel. See Configuring Input Parameters and Input Settings
    • To view the input's corresponding stream name and status, click the Streams icon
       on the appropriate input panel.
    • To delete one or multiple inputs, check the checkbox(es) of the input(s) you want to delete and click the Delete button at the top of the inputs list.
  3. To apply your changes to the input settings, click Apply
Mobile Interface

To open the Inputs List View:

  1. Tap
    to open the sidebar.
  2. Go to Streaming > Inputs.
    The Inputs List view opens, as shown in the following example.
  3. From here you can perform the following tasks:
    • Tap the Filter icon
       to  hide/show the input Status Filter bar.
    • To delete inputs, tap the Select icon
      , select the number of inputs you wish to delete,
      then tap Actions > Delete
    • To modify the sort order, tap the Sort icon
      and select the desired sorting options. The default is set to sort by Name, in Ascending order.
    • To search for specific inputs, tap the Search icon
       and type in key words to identify the input. If no related input is found, the search page will return No Search Results.
    • To add a new input, tap the Add button. See Adding New Inputs
    • To filter the inputs list view by status, tap the
      (streaming),
      (alert), or
      (inactive), buttons in the status filter bar.
    • To view/configure input information, corresponding streams, or settings, tap the More Options menu
      on any available input. For details, see Configuring Input Parameters and Input Settings
  4. To apply changes to the input settings, click Apply
