From the Metadata Detail View, you can define a small set of static KLV objects (i.e., mission IDs and security classification) for KLV and CoT metadata sources. This allows customers to modify erroneous or insert missing metadata within outbound TS steams. These options are available:
Configure a mission ID string of up to 127 characters: When the mission ID is configured, any received UAS KLV dataset will be processed in order to modify the existing mission ID or add a mission ID element if not there with the configured value.
Enable or disable the update/generation of the MISB ST0102.12 security data sets: When this feature is enabled, you can configure the MISB ST0102 security parameters, such as the classification (Unclassified, Restricted, Confidential, Secret, or Top Secret), the classifying country, and the object country/ies (up to 6) (using the proper ISO 3-letter country code). See Metadata Settings for the full list of MISB ST0102 parameters.
In both cases, the mission ID or security data will get replaced or inserted with the ones created by Kraken based on the configuration.
Note
Metadata insertion and KLV decimation/filtering are mutually exclusive. If metadata insertion is specified, it will override KLV tag filtering.
Web Interface
To configure insertion of static KLV objects:

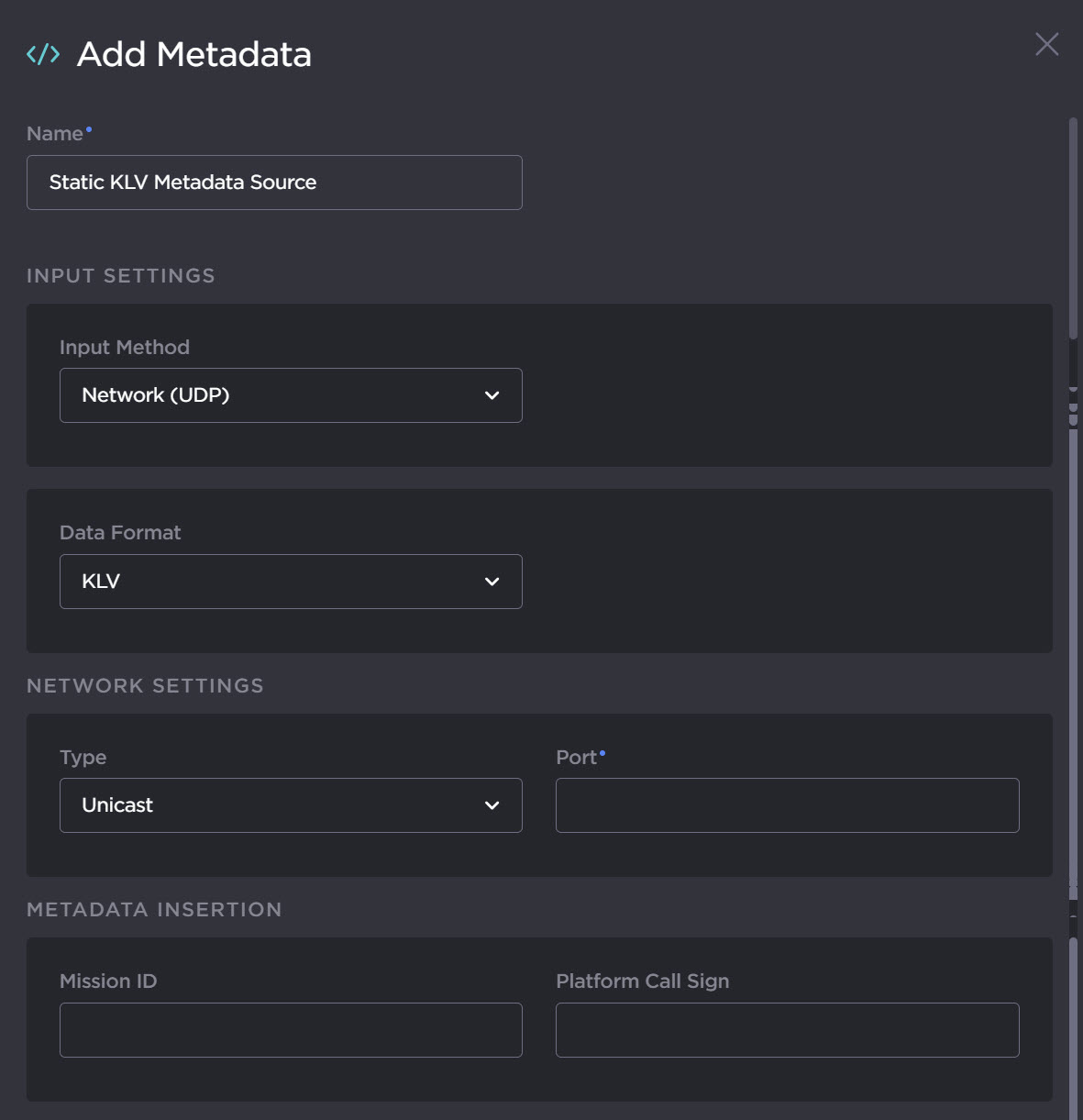

From the Metadata List View, click the Settings icon to open the metadata source details, or click Add Metadata to to add a new metadata source. See Adding New Metadata Sources.
Select Video Source, or Network (UDP) as the Input Method.
If Network (UDP) is selected, choose KLV as the Data Format, and configure the Network settings.
In the Metadata Insertion section, adjust the Mission ID and Platform Call Sign as desired. See Metadata Settings for details.

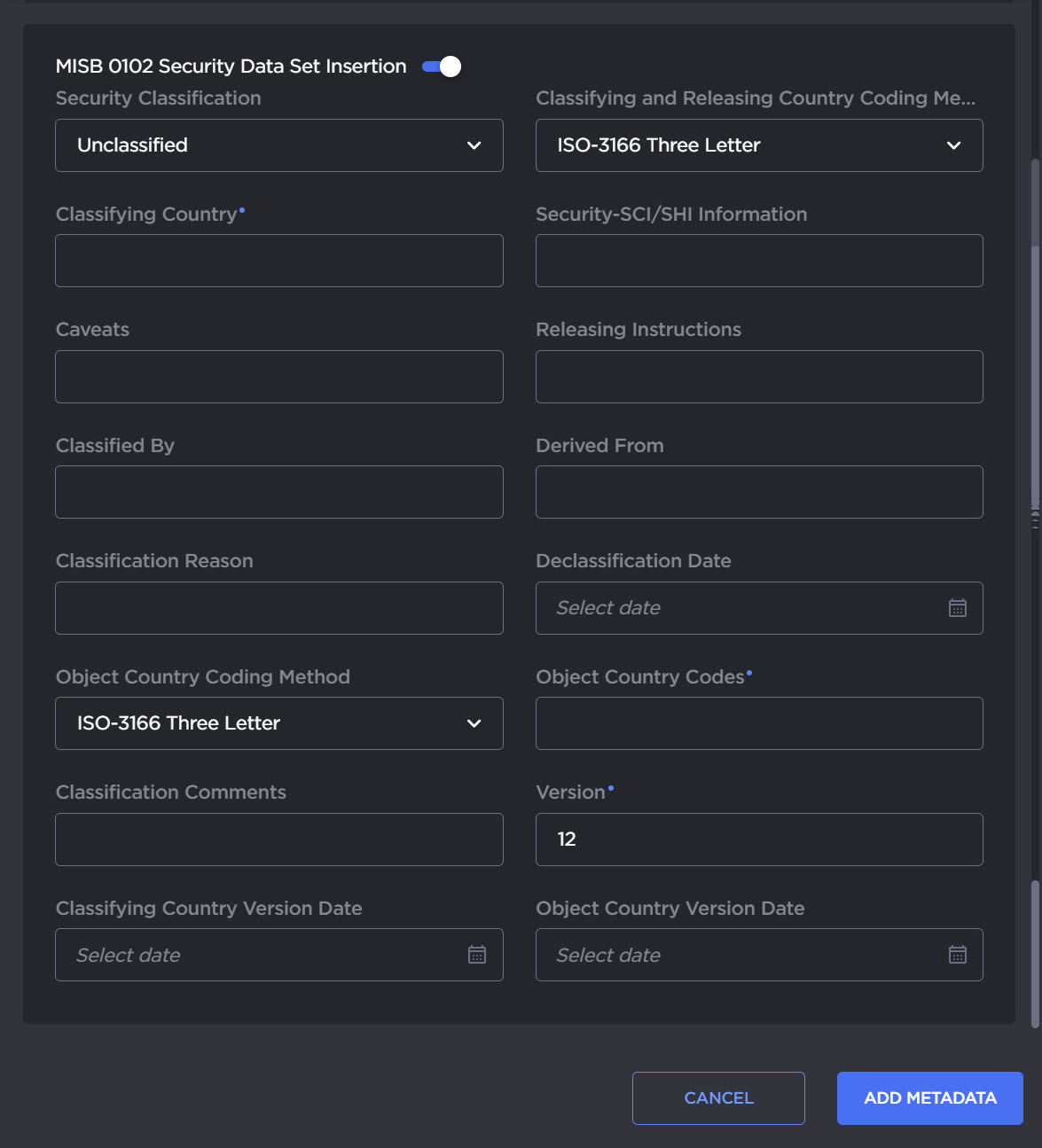

To enable the update/generation of MISB 0102 security data sets, toggle MISB 0102 Security Data Set Insertion on (as shown in the following example).
Fill in the mandatory parameters:
Select a Security Classification, Classifying and Releasing Country Coding Method, and Object Country Coding Method from the drop down menus.
Specify a Classifying Country, Object Country Codes, and Version number. For details, see Metadata Settings.
When applicable, fill in the remaining optional parameters. For details, see Metadata Settings.
Click Add Metadata (if adding a new source) or click Apply (if modifying an existing source).
Mobile Interface
To configure insertion of static KLV objects:
From the Metadata List View, tap the More Options icon and select Settings from the bottom menu bar to open the metadata source details. To add a new metadata source, tap Add. See Adding New Metadata Sources.
Select Video Source, or Network (UDP) as the Input Method.
If Network (UDP) is selected, choose KLV as the Data Format, and configure the Network settings.
In the Metadata Insertion section, adjust the Mission ID and Platform Call Sign as desired. See Metadata Settings for details.
To enable the update/generation of MISB 0102 security data sets, toggle MISB 0102 Security Data Set Insertion on. Scroll down the list to view all parameters.
Fill in the mandatory parameters:
Select a Security Classification, Classifying and Releasing Country Coding Method, and Object Country Coding Method from the drop down menus.
Specify a Classifying Country, Object Country Codes, and Version number. For details, see Metadata Settings.
When applicable, fill in the remaining optional parameters. For details, see Metadata Settings.
Tap Add Metadata (if adding a new source) or tap Apply (if modifying an existing source).
