Configuring CoT Retransmission

From the Metadata Detail View, you can configure CoT retransmission of COT metadata received over a UDP interface. The metadata will be retransmitted as a CoT/UDP unicast or multicast stream so that multiple CoT listeners can access the source CoT data.

Web Interface

To configure CoT Retransmission:

  1. From the Metadata List View, create or modify a UDP CoT metadata source to retransmit. For details on setting up the metadata source, see Configuring Metadata Parameters.

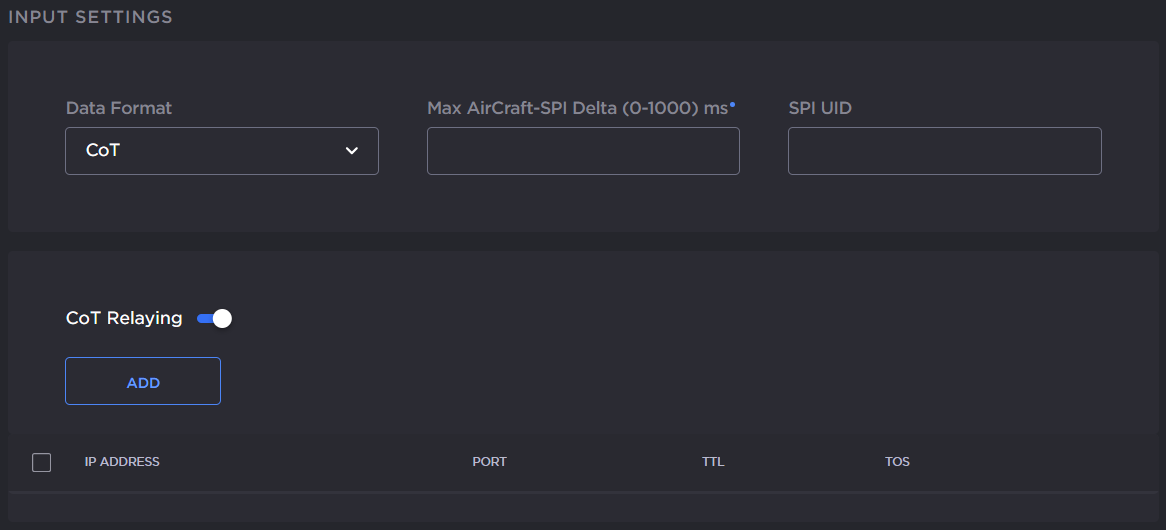

  2. On the Metadata Detail View, select CoT as the Data Format, and toggle CoT Relaying on (as shown in the following example).
  3. To add a CoT retransmission destination, click the Add button.

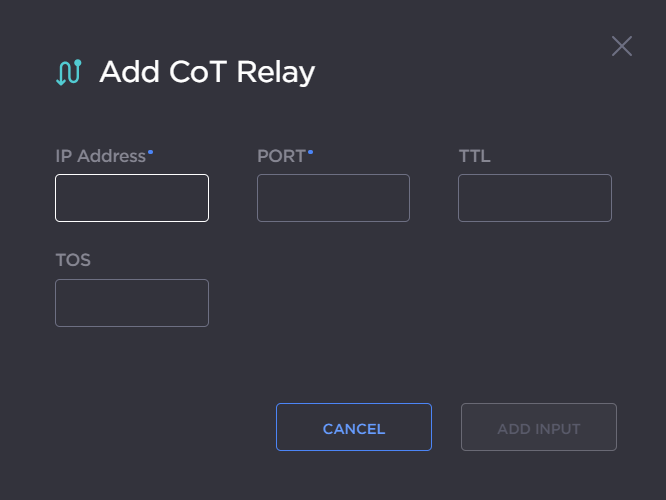

  4. On the Add CoT Relay dialog, enter the IP Address and Port for the destination.
  5. Click Add Input

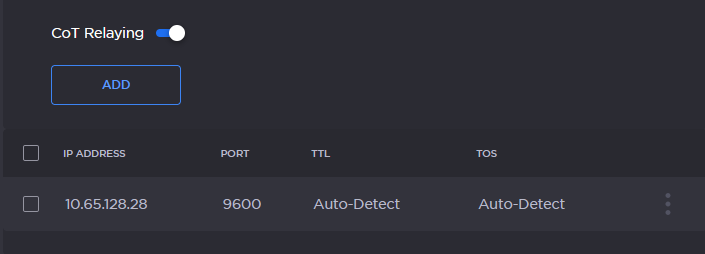

    The CoT Relay input is added to the list:

  6. To edit or delete a CoT relay destination, click the More Options menu
     and select Edit or Delete.
Mobile Interface

To configure CoT Retransmission:

  1. From the Metadata List View, create or modify a UDP CoT metadata source to retransmit. For details on setting up the metadata source, see Configuring Metadata Parameters.
  2. On the Metadata Detail View, select CoT as the Data Format, and toggle CoT Relaying on (as shown in the following example).
  3. To add a CoT retransmission destination, tap Add.
  4. On the Add CoT Relay dialog, enter the IP Address and Port for the destination.
  5. Tap Add
    The CoT Relay input is added to the list:

  6. To edit or delete a CoT relay destination, tap the More Options menu
    and tap Edit or Delete.
