Breakout Power Entry Connector
The following connector pinout information pertains to an optional breakout cable.
If you would like to receive the accessory demo cable, contact Haivision support.
Manufacturer | Hirose |
|---|---|
Connector Type | DC IN +28V Power Connector |
Part Number | LF10WBJ-4P |
Power Entry Connector Pinout | |
|---|---|
Contact # | Description |
1 | +28V DC IN |
2 | GND |
3 | N/C |
4 | N/C |

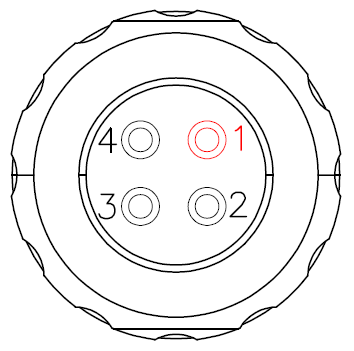

Power Connector Pin Locations
