Sources Pane

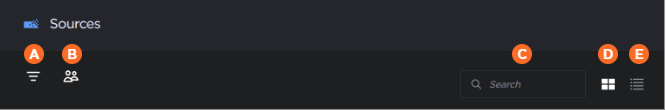

The Sources pane of the Master Control screen displays the connected encoders, receivers, and transmitters as individual tiles. The Sources pane includes a toolbar at the top to allow you to configure how you want to view your source tiles:

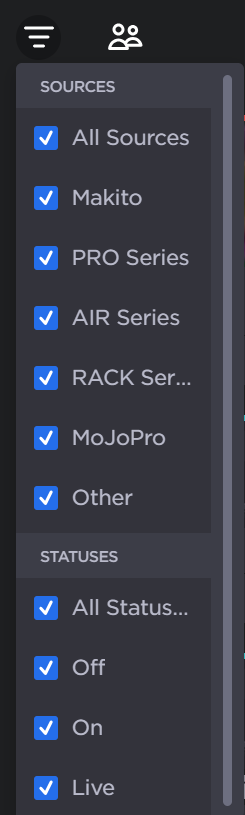

	Use the   Sources Filter button in the toolbar to make the number of tiles more manageable by changing the selections on the dropdown menus to display only the selected source types or status.

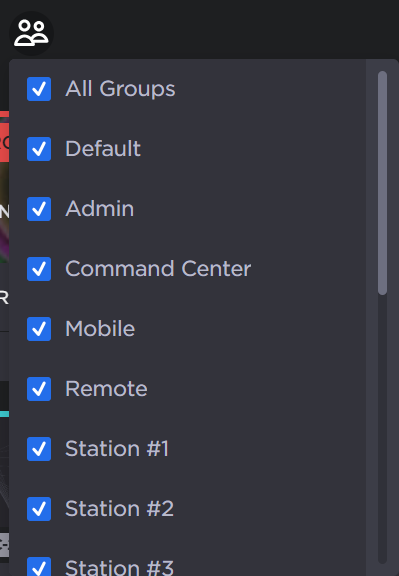

	Use the   Groups Filter button in the toolbar to make the number of tiles more manageable by changing the selections on the dropdown menus to display only the selected groups.

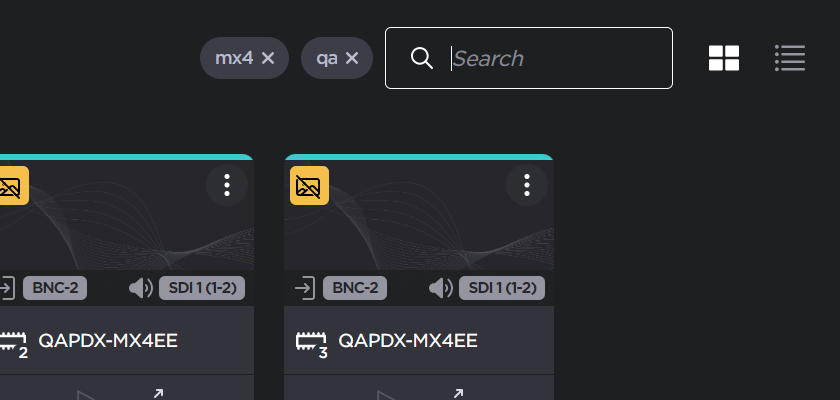

	You can also use the search text box to quickly find the source appliances you desire. Type a string in the text box and press the Enter key. For each additional string you enter an AND operation is performed by the search.
	The   Tile (icon) view icon switches the display of the source tiles into a simplified grid view. See the following section for more details.
	The   Detailed view icon switches the display of the source tiles to a detailed list view. See the following section for more details.

Tile and Detailed Views

Clicking the

Tile View

In

Tile view, each source tile consists of a thumbnail preview and various status and control items.

	Stream Status	Colored bar indicates the current status of the stream. If the stream is currently Live, a Live status box appears under the bar. Live, File Forward (Transmitters), or Record (Transmitters)  Running (but not Live)  Live with Warning  Inactive  Starting Live  Error
	Input Video Source (Makito only)	Shows the assigned video source for the stream.
	Video Encoder Core (Makito or Pro4 only)	Indicates the assigned video encoder core for the stream.
	Start/Start Stream buttons	Buttons to start/stop the Live stream.
	Expand Stream Details button	Expands the tile to show detailed information about the source, including bitrate graphs, options to change the latency and change the maximum bitrate, and modem status (field units only). See Viewing Source Status for more details.
	Stream Name and Bitrate	Shows the name of the stream and the current received bitrate.
	Input Audio Source (Makito only)	Shows the assigned audio source for the stream.
	Volume Meters	Indicates the current left/right channel volume. Only appears when the stream is Live.
	More Options	Button to show more options for the source, allowing you to access the source web interface   or go directly to the source appliance in the Appliances menu  .

Note

When a transmitter is in data bridge mode, a

icon appears in the tile next to the Stream Status:

Detailed View

In

Detailed view, the same information from tile view is available, plus additional statistics and status.

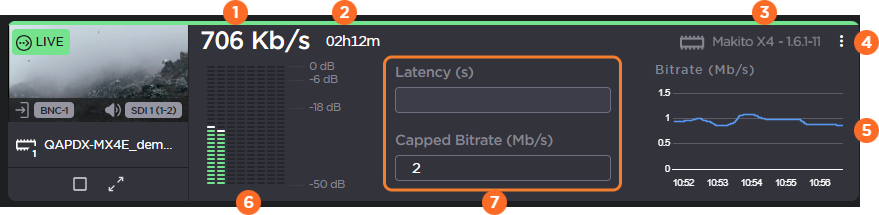

	Bitrate	Instantaneous bitrate of the source stream.
	Elapsed Time	If applicable, the elapsed time of the source being Live.
	Device Type and Version	Lists the appliance model and current firmware version.
	More Options	Button to show more options for the source, allowing you to access the source web interface   or go directly to the source appliance in the Appliances menu .
	Bitrate Graph	Graph of the bitrate for the previous five minutes.
	Volume Meters	More detailed view of the volume meters showing up to eight audio channels.
	Latency and Capped Bitrate	Current values, which may be changed during a Live stream.
