Creating a Proxmox VM from an OVA

To run Haivision Media Platform under Proxmox Virtual Environment:

1. Download the virtual appliance (.ova) package from Haivision's Support Portal.

2. Log into your Proxmox Virtual Environment web interface.

3. Enable imports on your storage location:

   1. In the left sidebar, click Datacenter.

   2. Click Storage, select the storage location, and click the Edit button.

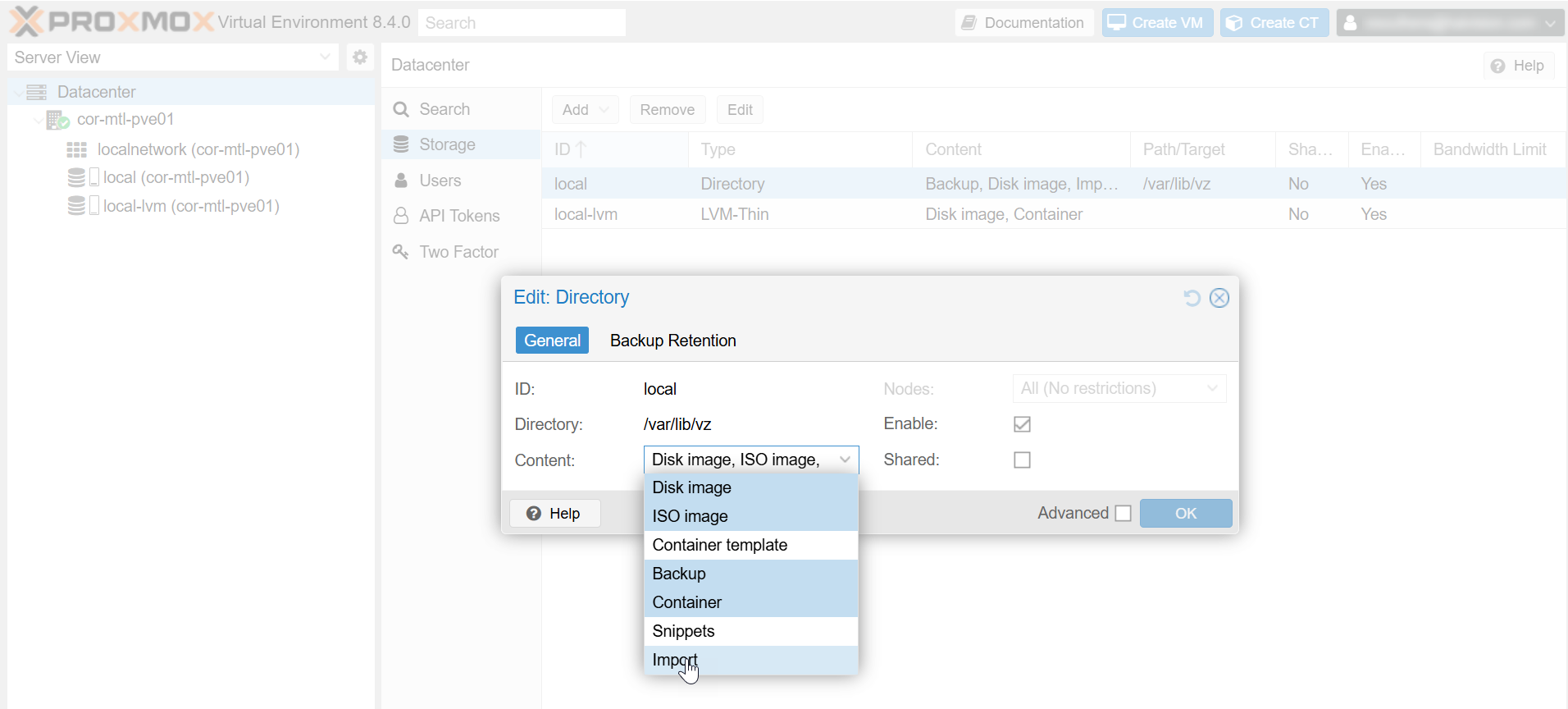

   3. In the content dropdown, ensure that Import is selected:



   4. Click the OK button.

4. Upload the .ova file into your Proxmox Virtual Environment:

   1. In the left sidebar, click the storage location you just edited.

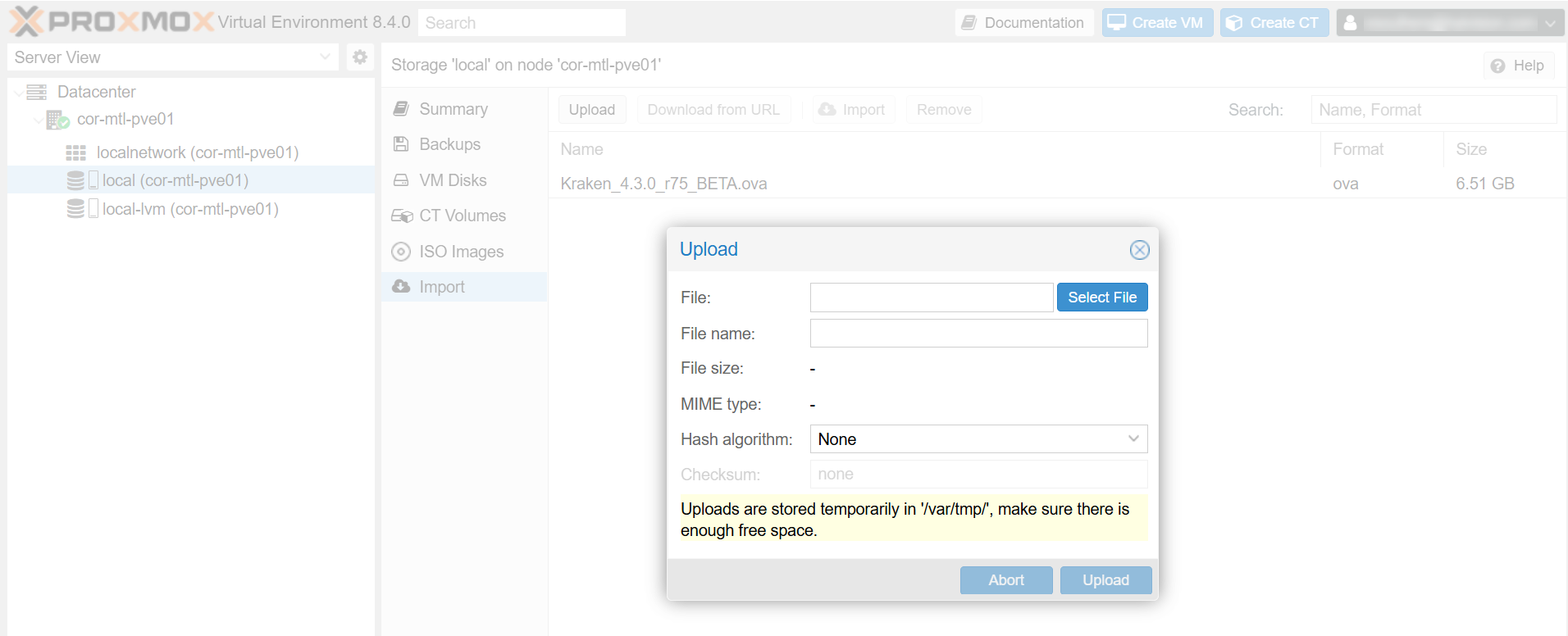

   2. Click Import in the submenu, and click the Upload button.



   3. Select the .ova file to upload and click the Upload button.

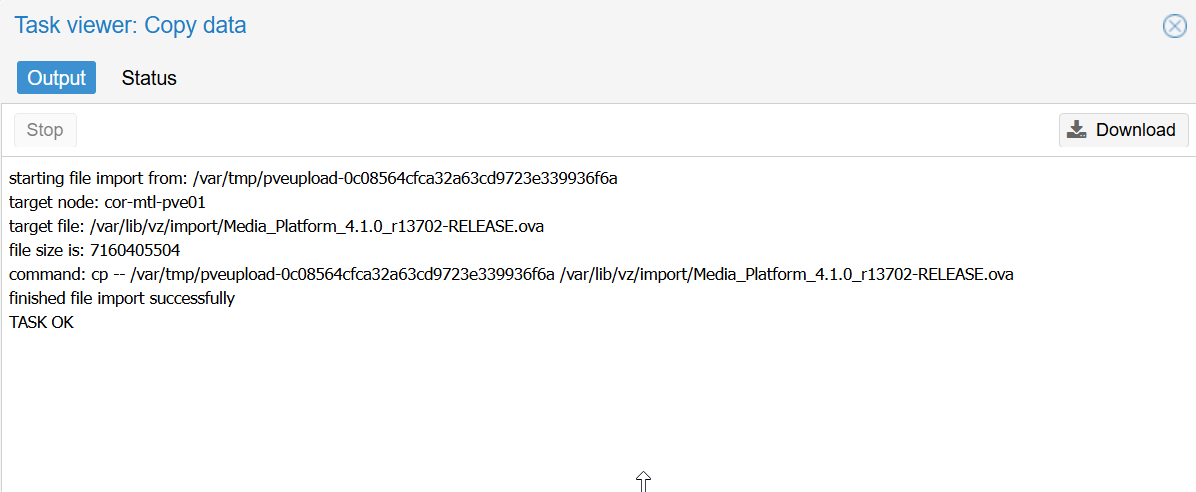

   4. When the upload completes, a text summary appears. Close the window.



5. Create a VM from the .ova file:

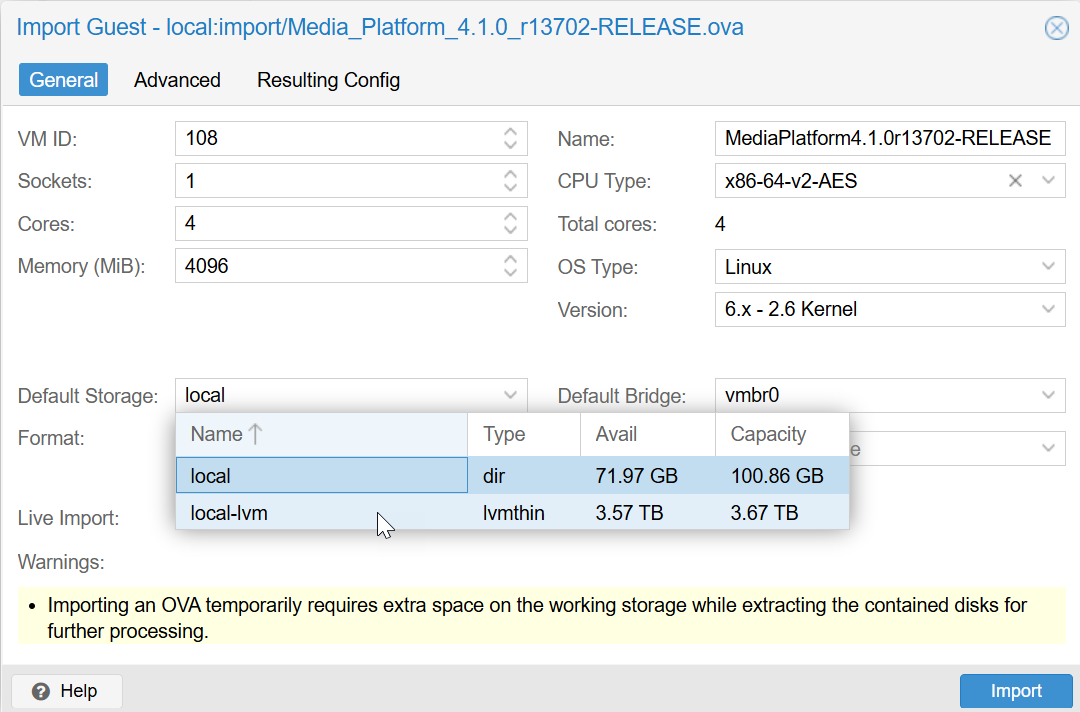

   1. Double click the imported file and an Import Guest window appears.

   2. In the Default Storage dropdown, select a thin-provision device:

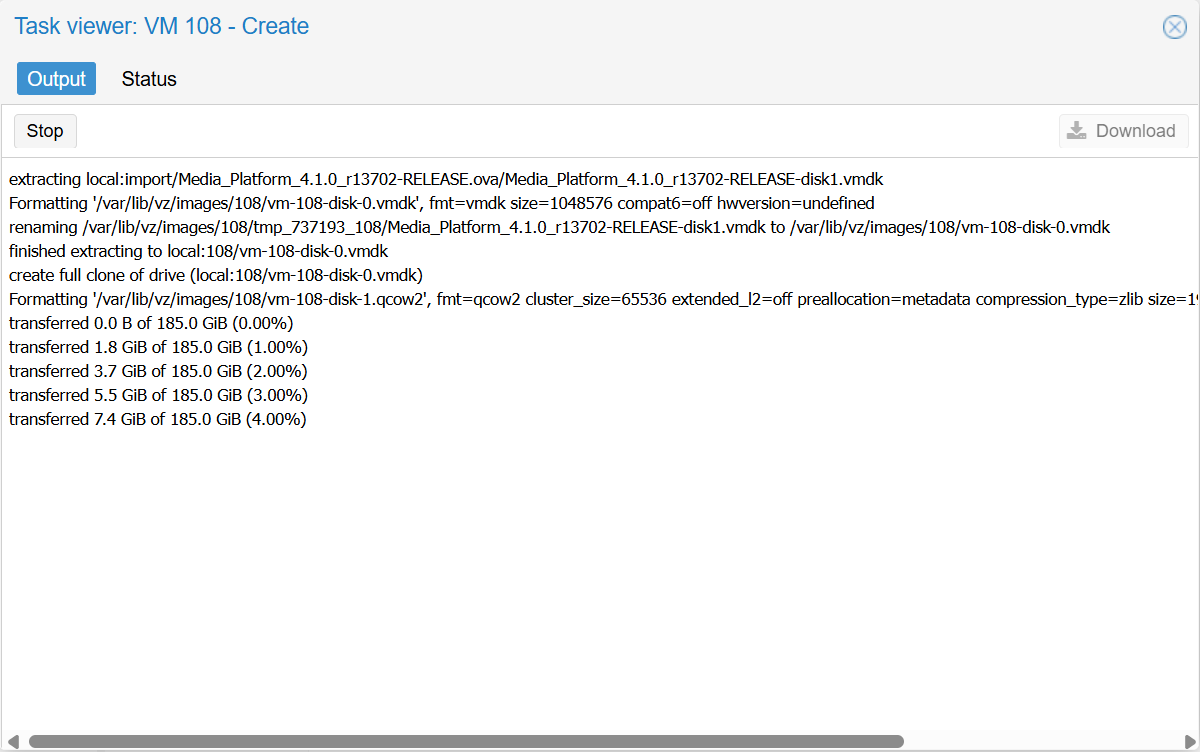

   3. Click the Import button. A status window appears during the import process:

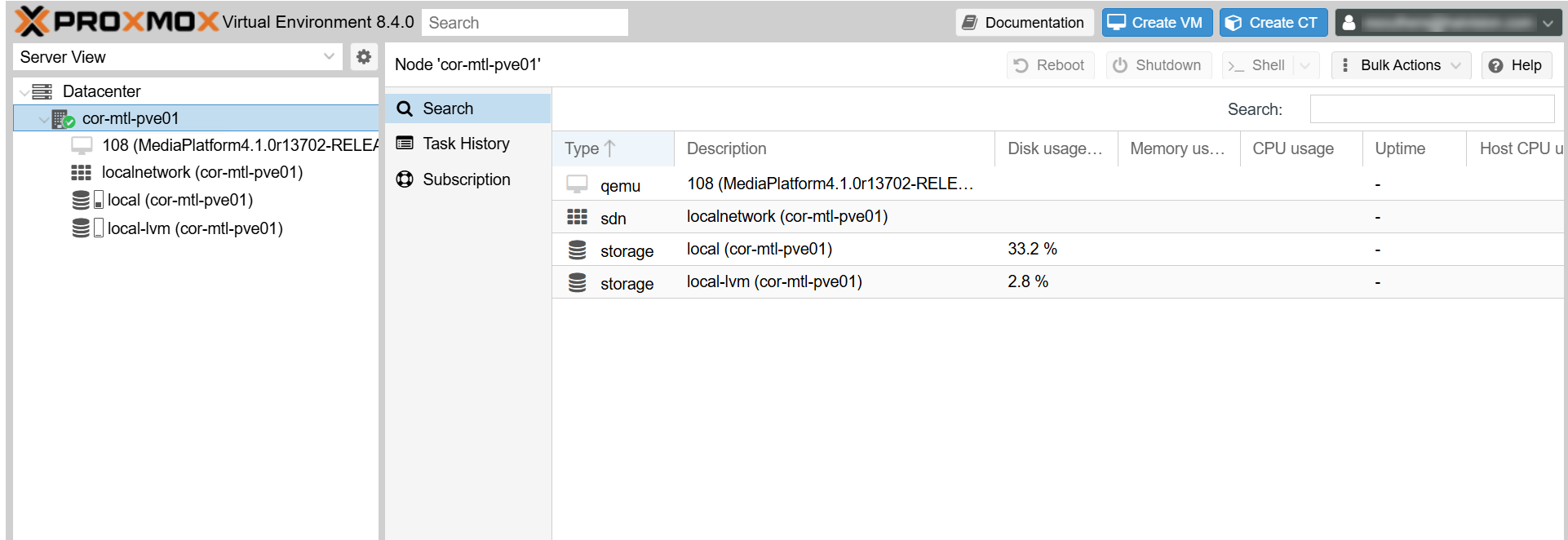

6. After the import completes, the VM is created and shown in the VM list:

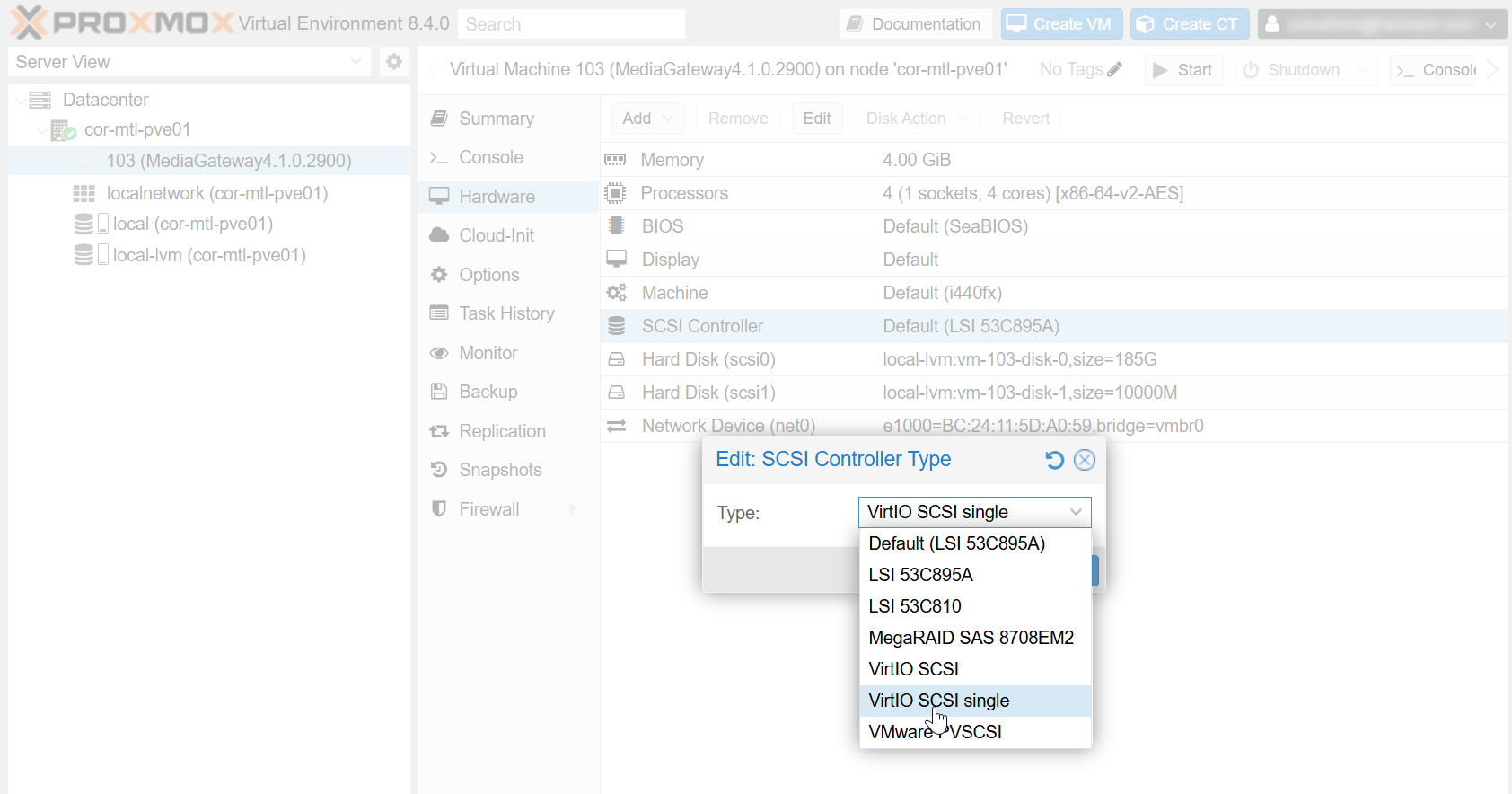

7. Change the SCSI Controller type. If you do not change the controller type, the VM will fail to boot.

   1. In the sidebar, select the newly created VM.

   2. Click Hardware in the submenu.

   3. Double click the SCSI Controller entry.

   4. In the dropdown, select VirtIO SCSI or VirtIO SCSI Single.



8. Update the amount of memory and number of processors per the requirements for your HMP instance. Double click on each entry to change each value.

   • Use the following minimum VM specifications: 12 CPU cores, 16GB RAM, 200GB HDD for OS and apps (thin provision recommended)

   • Using an external, customer-provided NFS for HMP asset storage is strongly recommended for HMP Virtual Machine implementations.

   • Be aware that the default virtual assets disk size is only 9GB.

   • Contact Haivision Technical Support before attempting to resize or replace the virtual disk, as this requires access to the HMP command line interface (to configure the virtual disk devices, LVM, file system, and OS).

Note

Haivision VM images use two disks: Disk 1 is thin-provisioned and set up to grow up to 100GB; Disk 2 is thin-provisioned up to 10GB and should be replaced by your organization's preferred asset storage, NFS mount, or VM storage disk.

Important

Reserve sufficient virtual resources (CPU, RAM, NIC, and HD) to avoid adverse effects to system performance.

Start the VM

1. In the left sidebar, select the new VM and click Console in the submenu.

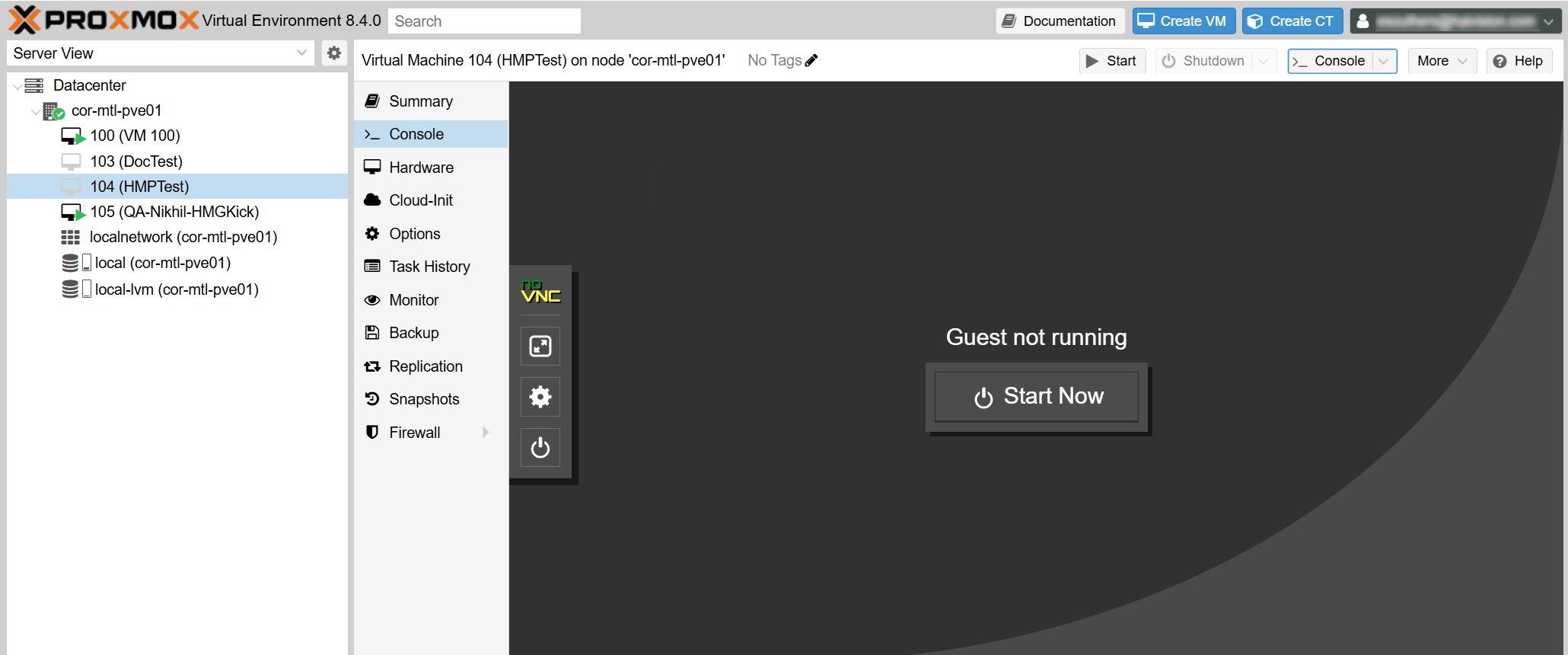

2. Click the Start Now button:

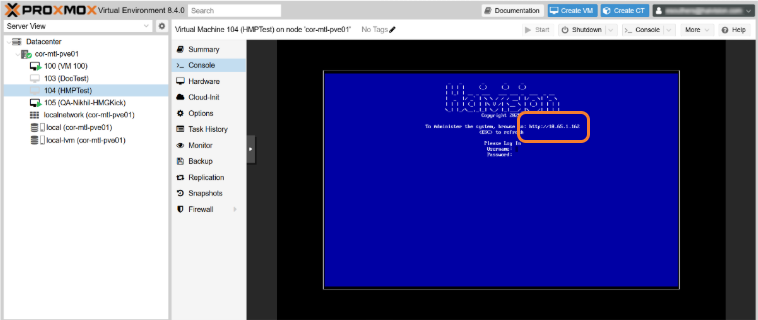

3. After a few minutes the Console UI appears. Make note of the IP address assigned to your VM:



Continue to Signing in to Your Proxmox VM.

For more details on using the Console UI, refer to Using the Console UI with Haivision Hardware.
