Connecting the Makito X4 Decoder

Switch to the Makito X4 Decoder tab or enter the URL for the Makito X4 Decoder web interface.

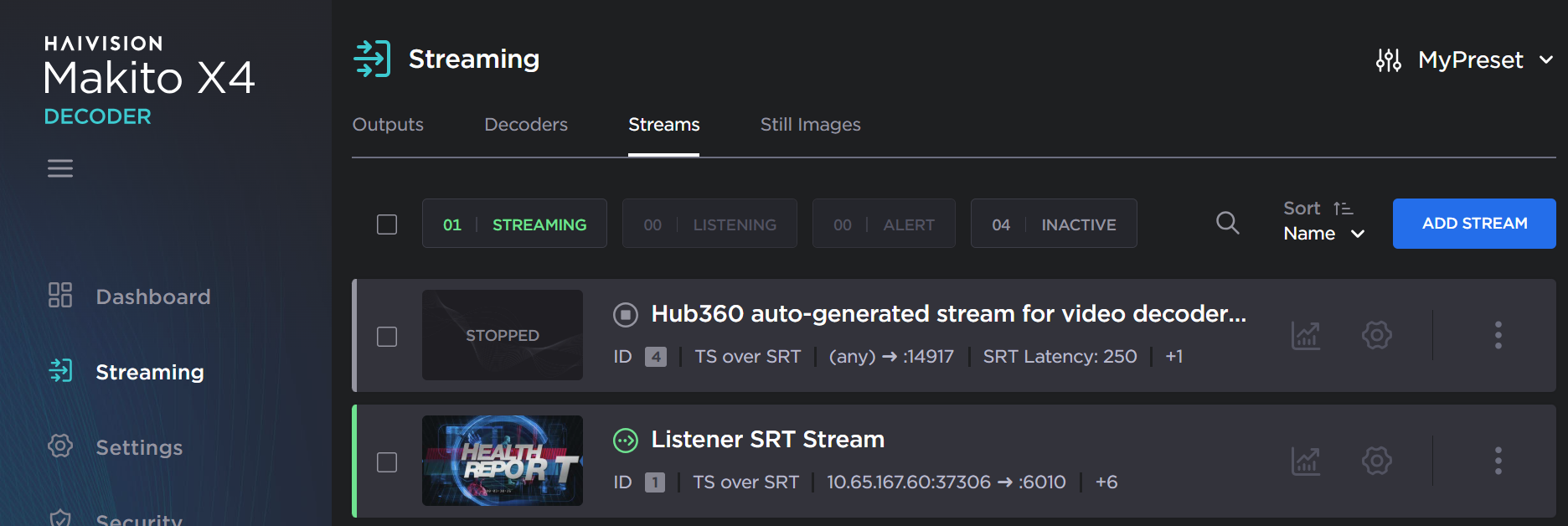

In the sidebar, click Streaming and then click Streams in the navigation toolbar.

Click the Add Stream button to add the stream to the Makito X4 Decoder.

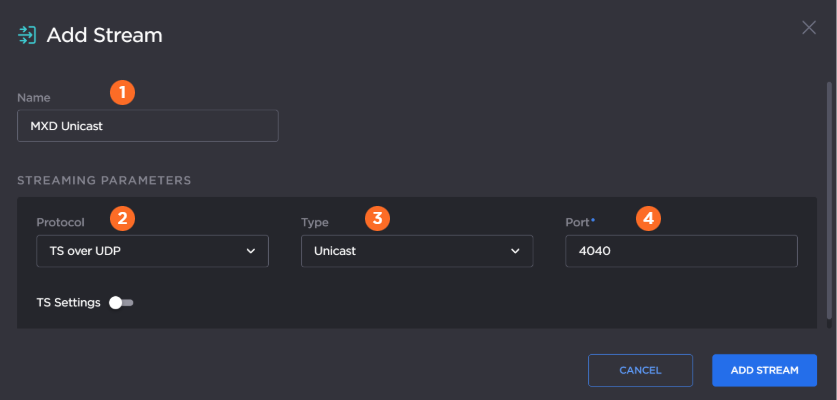

On the Add Stream screen:

• Enter a



  name and the



  protocol.

• For this example, we are using unicast TS over UDP. So, you need to include the



  type and



  port information.

Click the Add Stream button.

Repeat steps #2 and #3 as needed to define additional streams.

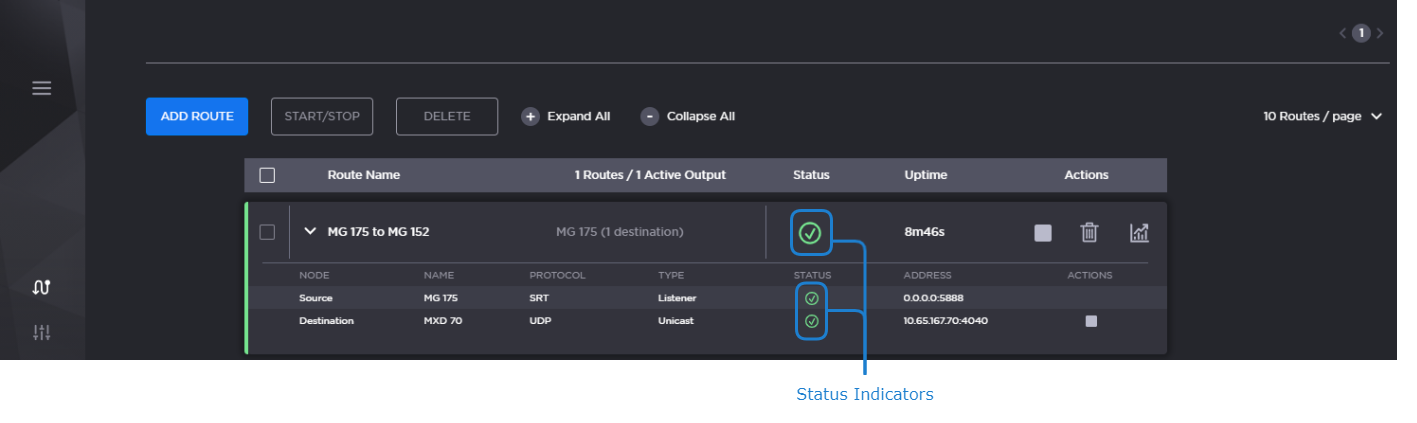

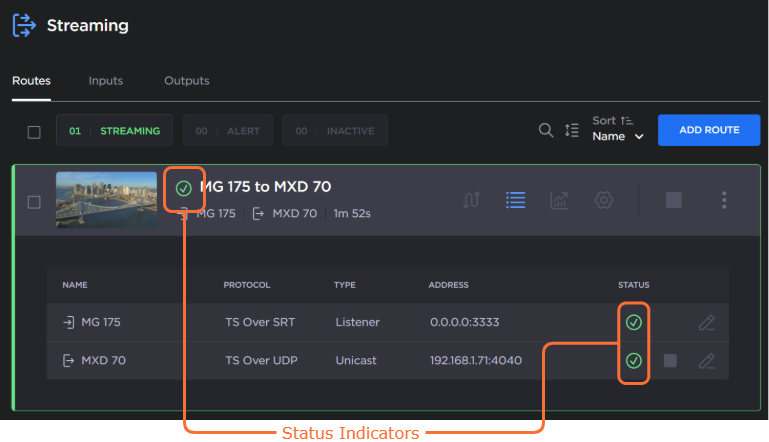

To ensure that everything is set up properly, verify that the streams have green status indicators on each device.
