Updating the Firmware

Note

Ensure that the battery is properly charged before starting to update.
The firmware can be updated from Hub 360 or Manager (v3.3.0 and higher).

Note

The firmware can be updated from Hub 360 or Manager (v3.3.0 and higher).

Unit Panel

Download the firmware file from the Haivision Support Portal.
Copy the .fw firmware file that you downloaded to an SD card or USB flash drive.
Insert the SD card or connect the USB flash drive to the transmitter.
From the Home menu, tap > > Firmware.
A message displays information about the firmware version and asks for confirmation. Tap Yes and Confirm.

Web Interface

Download the firmware file from the Haivision Support Portal.
In the sidebar, click Settings.
Click the Update tab.

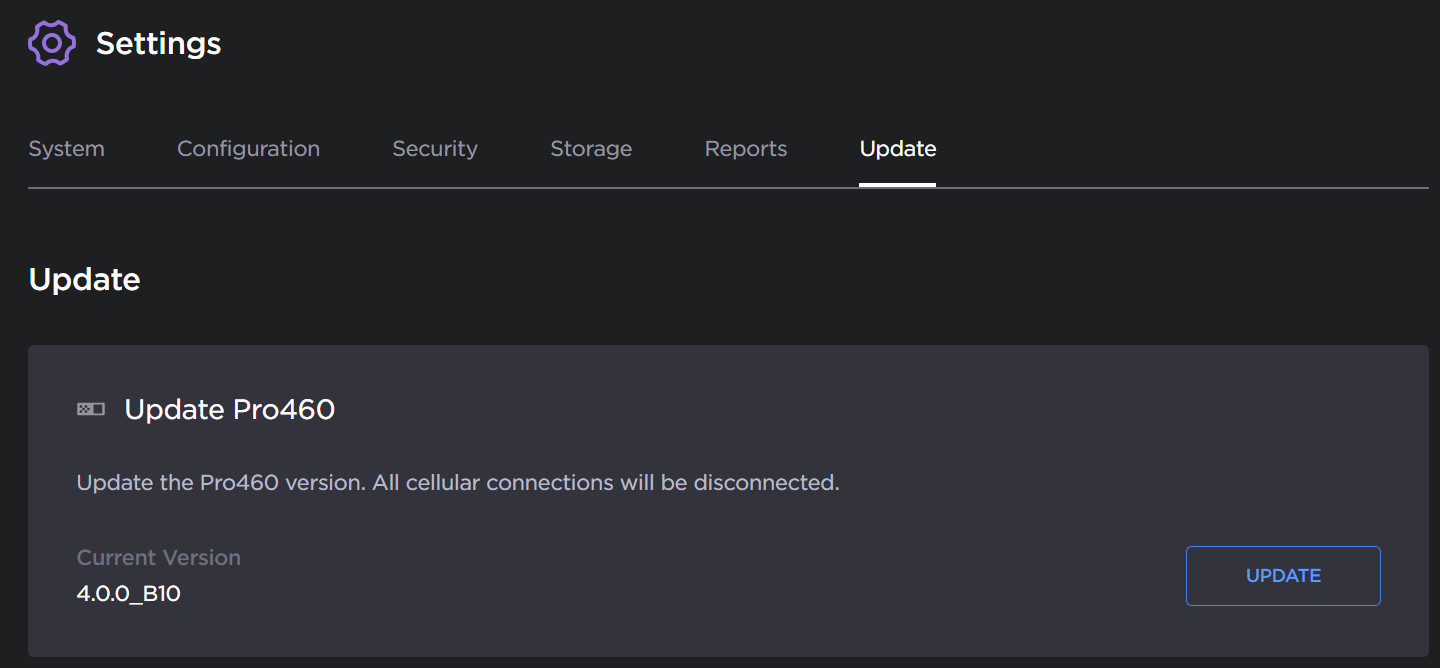

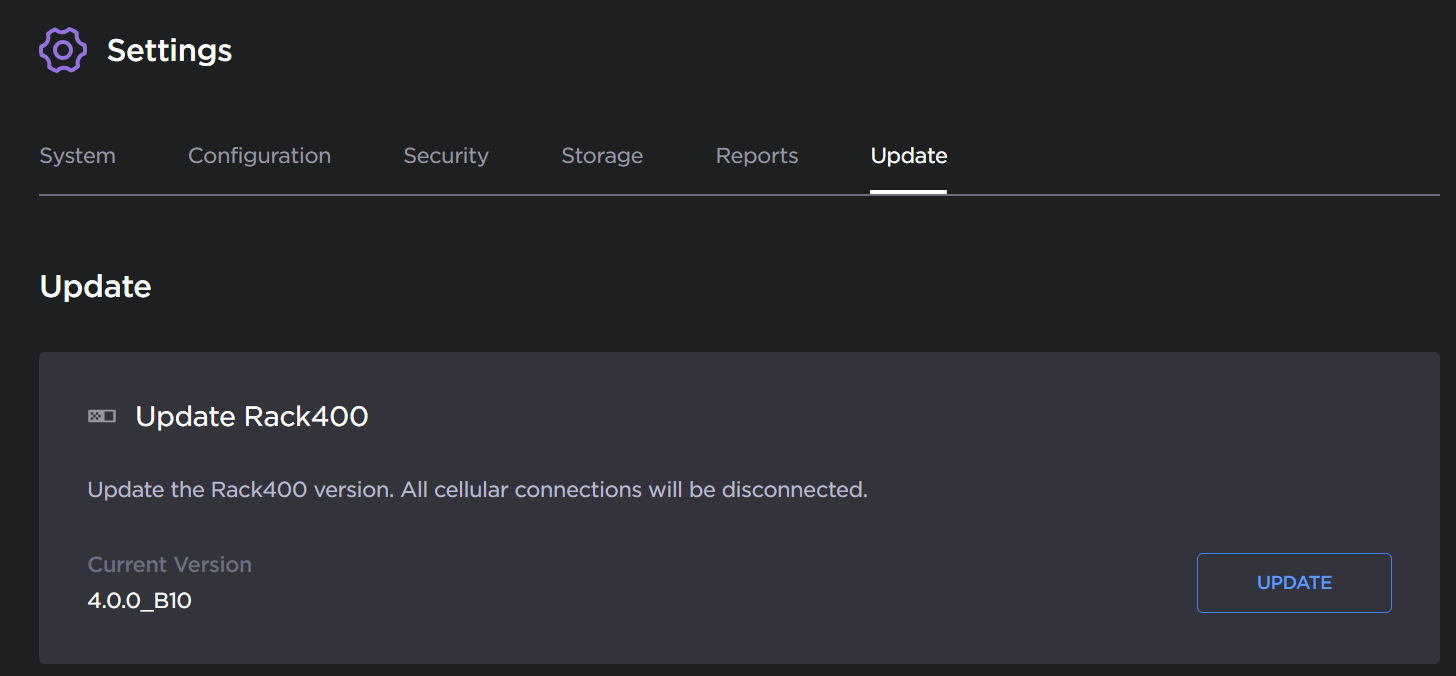

Update Button
Update button
Click the Update button.
Drag and drop or click the Browse button to select the .fw software file that you saved.

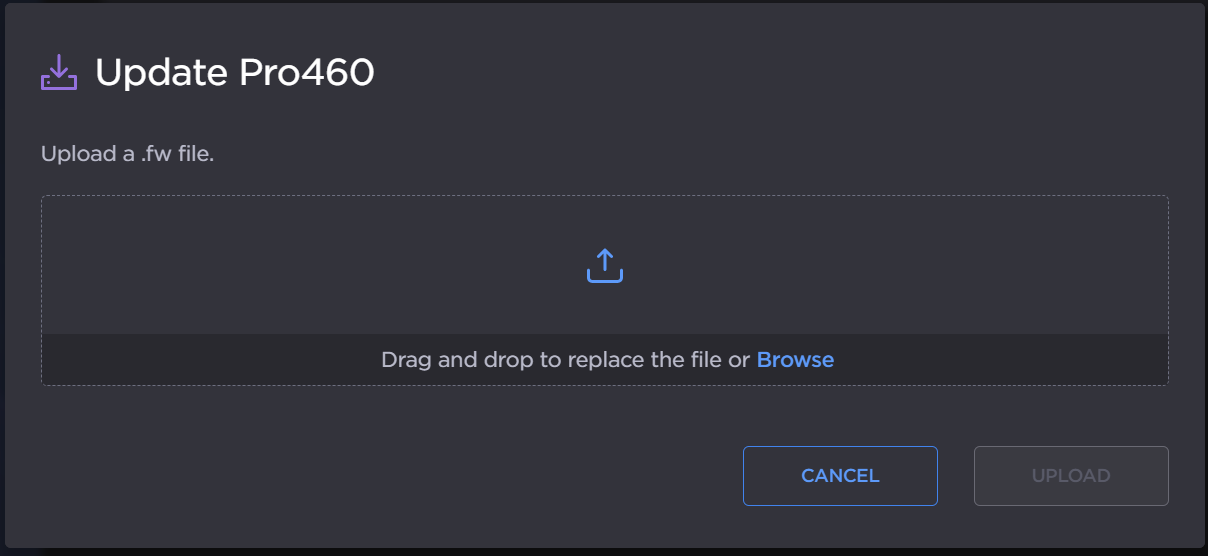

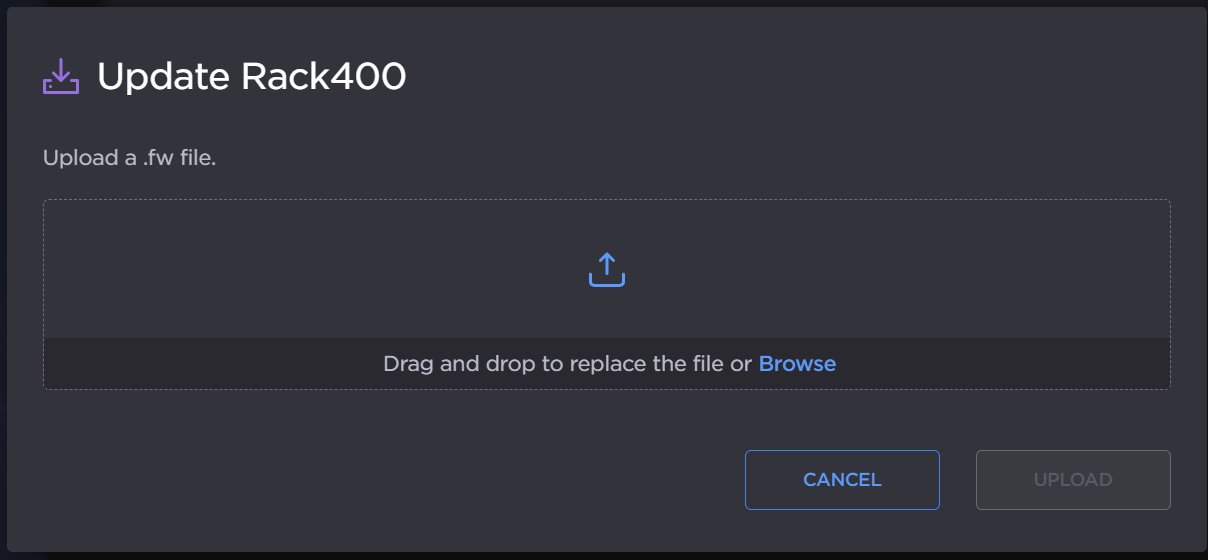

Upload dialog
Upload dialog
Click the Upload button.
Follow the instructions on the screen.

Note

The update may take several minutes, depending on whether it is a major update or not. During the update, do not perform any actions on the system. At the end of the process, a message appears to reboot the unit, depending on the firmware version uploaded.
