Starting a Live (MultiMode)

To start a live:

1. From the Home menu, tap



   . The video preview appears on screen. When tapping



   , the Live menu displays additional information for each encoder.








   Enabling / Disabling encoder




   Selected Source




   Selected Live Profile




   Selected Destination Profile


   Note

   • Video source must be all SDI or all Pattern.

   • All inputs must have the same resolution and the same frame rate.

   You can modify settings before starting the Live action:

   • To select another Source:

     1. Tap the field beside .

     2. Tap a different source.

   • To select another Live profile:


     1. Tap the field beside .

     2. Tap a different Live profile.

   • To select another Destination profile:


     1. Tap the field beside .

     2. Tap a different Destination profile.

2. Tap to start the Live for all encoders. Video previews appear on screen.

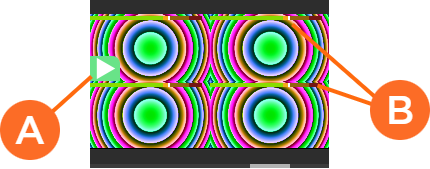

   Live icon blinking when running

   Audio bars indicating audio levels

3. Tap an encoder to display more information.

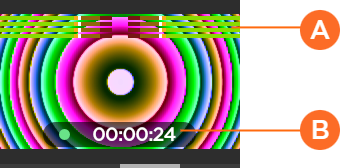

   Audio bars indicating audio levels

   Live duration

4. Tap



   to display some indications about the Live action:








   End-to-end Latency configured in the Live Profile or modified remotely from StreamHub interface




   Network bitrate




   Source standard




   Live duration


   Note

   See the StreamHub User Guide to set another delay during Live operation.

5. Tap  to display all encoders and on to display additional information such as the bitrate for each encoder or ancillary data.

To stop the Live for all encoders:

1. Tap.

2. Tap  > Stop Live.

To stop the Live for a single encoder:

1. Tap the preview of the encoder that you want to stop.

2. Tap .

3. Tap  > Stop Live.

To start a live:

1. On the Dashboard, in the Streams section, click the



   icons under each stream to check the settings are configured as required (video source, live profile, and destination profile).


   Note

   • Video Source must be all SDI or all Pattern.

   • All inputs must have the same resolution and the same frame rate.

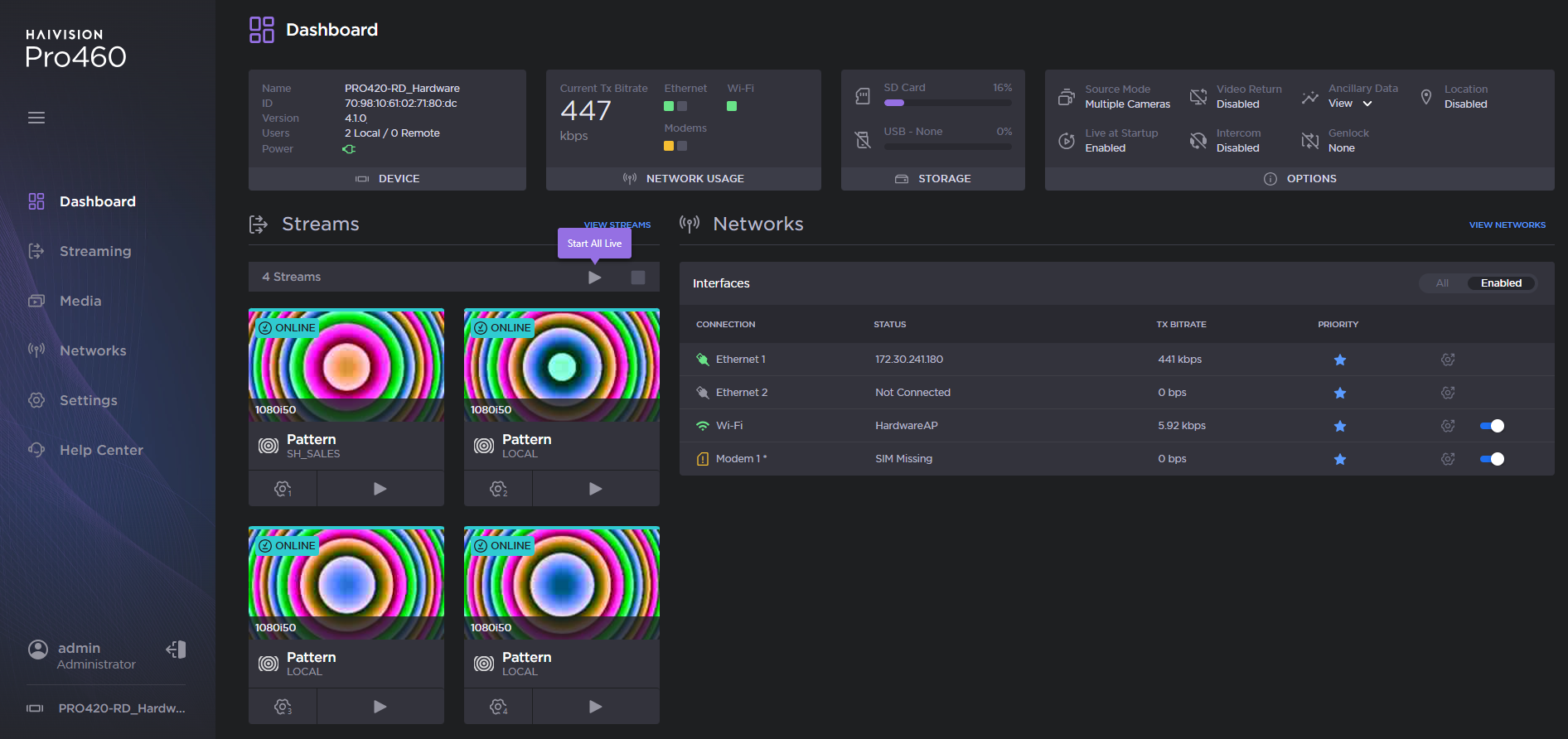

2. Click the  icon above the streams to start the Live for all encoders.

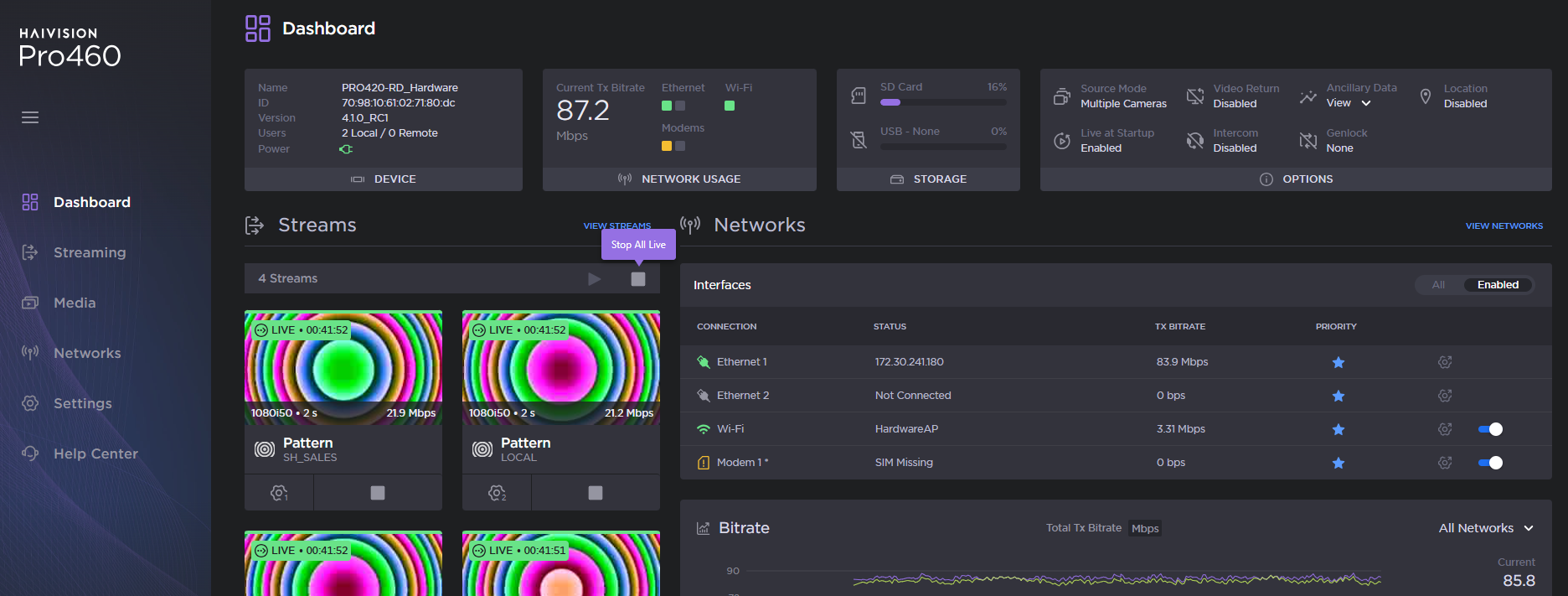

To stop the Live:

1. Click the  icon above the streams.

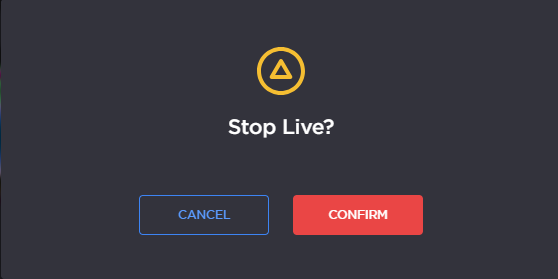

2. Confirm to stop the video transmission.



Note

Before starting a live, make sure that the REC button, the Live profile, and the Destination profile have been configured. Please see FKN_Configuring the Camera's REC Button and FKN_Configuring Live Profiles.

To start a live:

• Press the camera's REC button.

The Live is in progress.
