Adding an APN to the Database

Add and configure new APN settings to suit your requirements, so that they can be easily selected from the list.

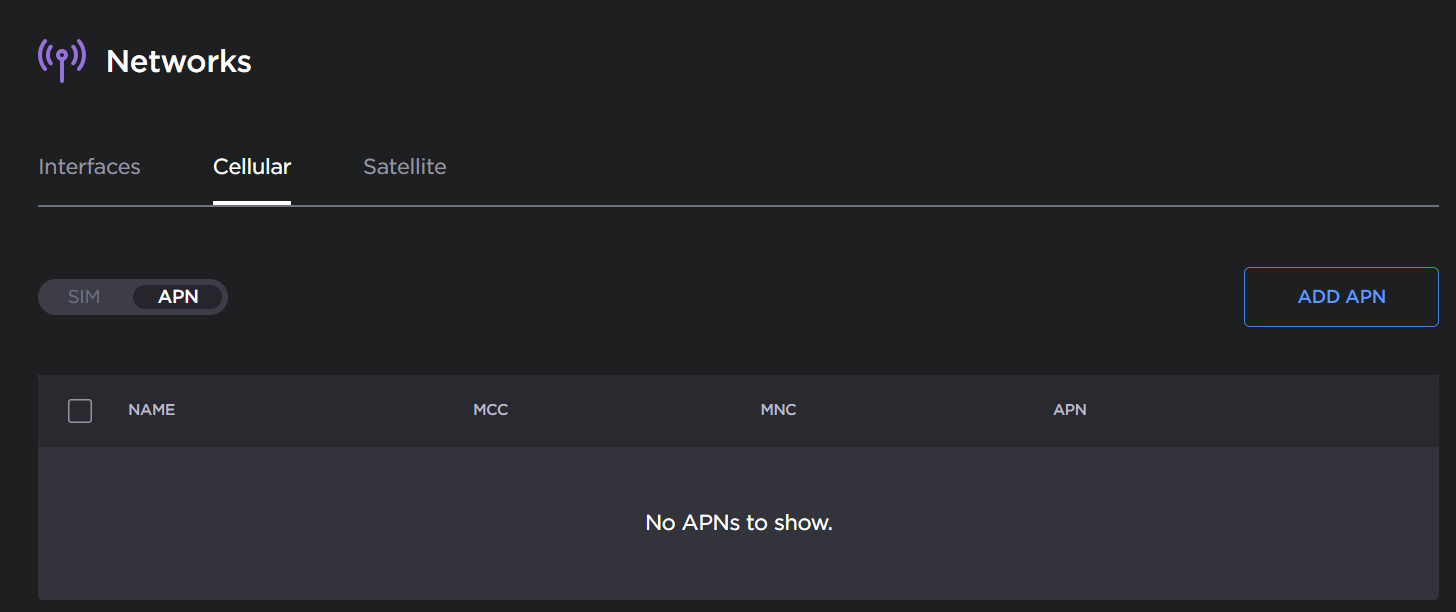

1. From the web interface, click Network > Cellular > APN.

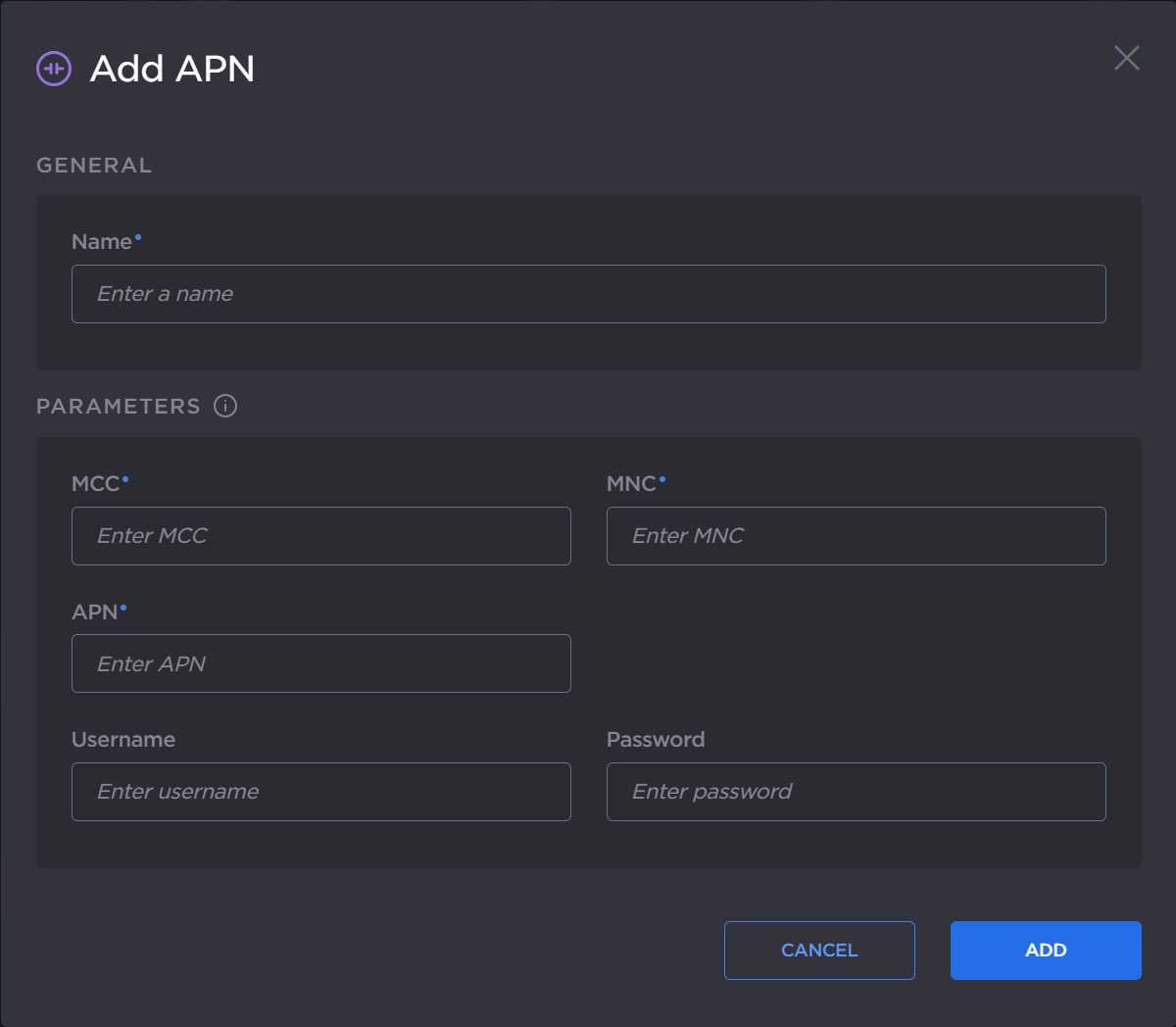

2. Click the Add APN button. The Add APN dialog appears:




3. In the General section, enter a Name.

4. Fill in the parameters fields (MCC, MNC, and APN).



   Note

   If needed, refer to mcc-mnc.com for assistance.

5. If required, enter a Username and a Password.

6. Click the Add button.

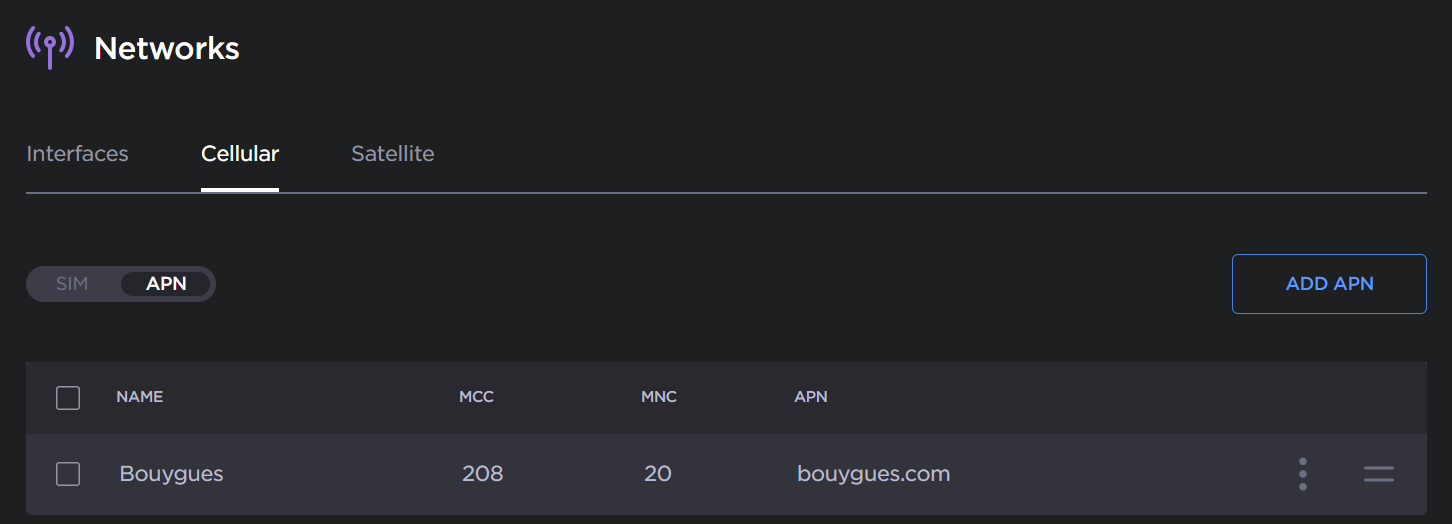

The new APN appears in the APN database, and you can select it from the scrolling list when configuring a cellular interface operating within the same network.
