Interfaces

Audio/Video

3G-SDI Input	Connector type: BNC connector Impedance: 75Ω Complies with SMPTE 292M and SMPTE 424M level A and level B-DS (limited to one SDI stream for level B-DS) Supported Embedded Audio at 48kHz
HDMI Input	Connector type: Type A Complies with HDMI 2.0 Fully shielded HDMI cable is mandatory
HDMI Output	Connector type: Type A Complies with HDMI 2.0 Fully shielded HDMI cable is mandatory

Intercom Headset

Connector type: 4pins (TRRS) 3.5 mm Audio Jack
(Signal complies with Apple and Samsung headsets)

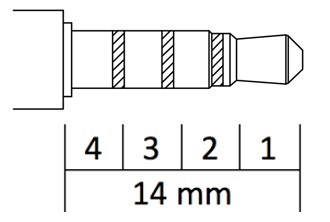

Pins (Mating plugs)
1. Tip (Left HP)
2. Ring1 (Right HP)
3. Ring2 (Ground)
4. Sleeve (Microphone)

Ethernet	1 Ethernet port 10/100/1000 Base-T RJ45 connector Green LED indicates link Orange LED indicated speed (on: 1000BT, off: 10/100BT)
Wi-Fi	Tri-band 2.4GHz, 5GHz and 6GHz 802.11 a/b/g/n/ac/ax

Internal	128 GB
USB	Two USB 3.1 Type A connectors One USB 3.1 Type C connector

DC Input	Input type: USB-C Automatic under-voltage protection at 12.5 Volts Automatic over-voltage protection at 22 Volts
AC/DC Adapter	Manufacturer: EDAC POWER ELEC. Model: EU106A DC Output: 5V⎓ 3A, 9V⎓ 3A, 12V⎓ 3A, 15V⎓ 3A AC Input: 100-240V-1.5A, 50-60Hz
