Installing the Unit

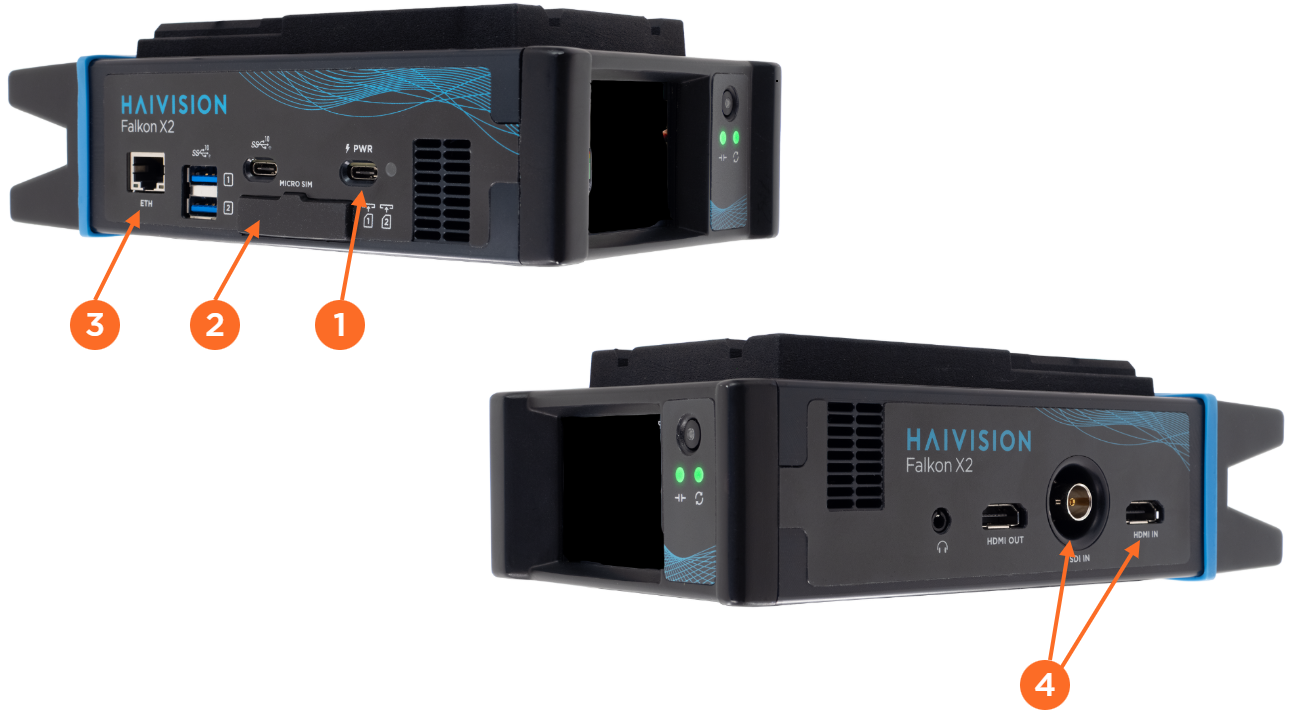

Follow the steps outlined below to install the unit. The image labels show the step numbers in the process.

1. Install the external battery onto the unit side or connect the AC/DC adapter and the power cable.

Important
We recommend using the AC/DC adapter (USB-PD 3.0 compliant) and USB-C connector delivered with Falkon X2.

The USB-C adapter must provide 65W to charge the internal battery.

2. Insert SIM cards into the slots.

3. For Ethernet transmission, connect the Ethernet cable.

4. Connect the video input cable to the SDI or HDMI input port.
