Adding a Destination Profile
To add a destination Profile from the Unit Panel or from the Web Interface, see the tabs below.
only possible from the Web UI → modify
In the sidebar, click Streaming > Destination.
Click the Add Profile button.

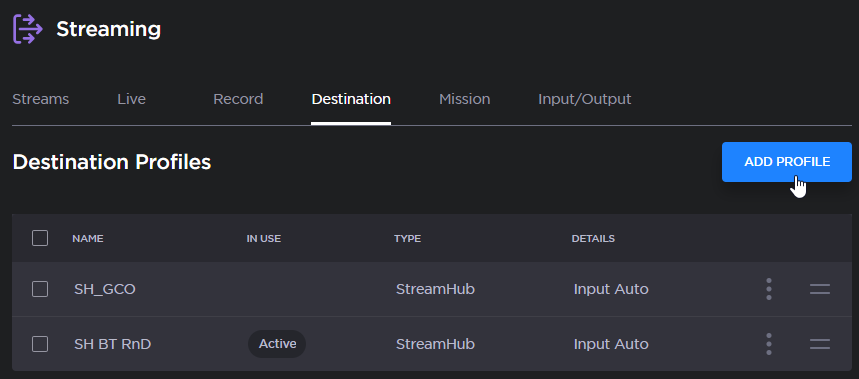

Add Profile button
The Add Destination Profile dialog appears:

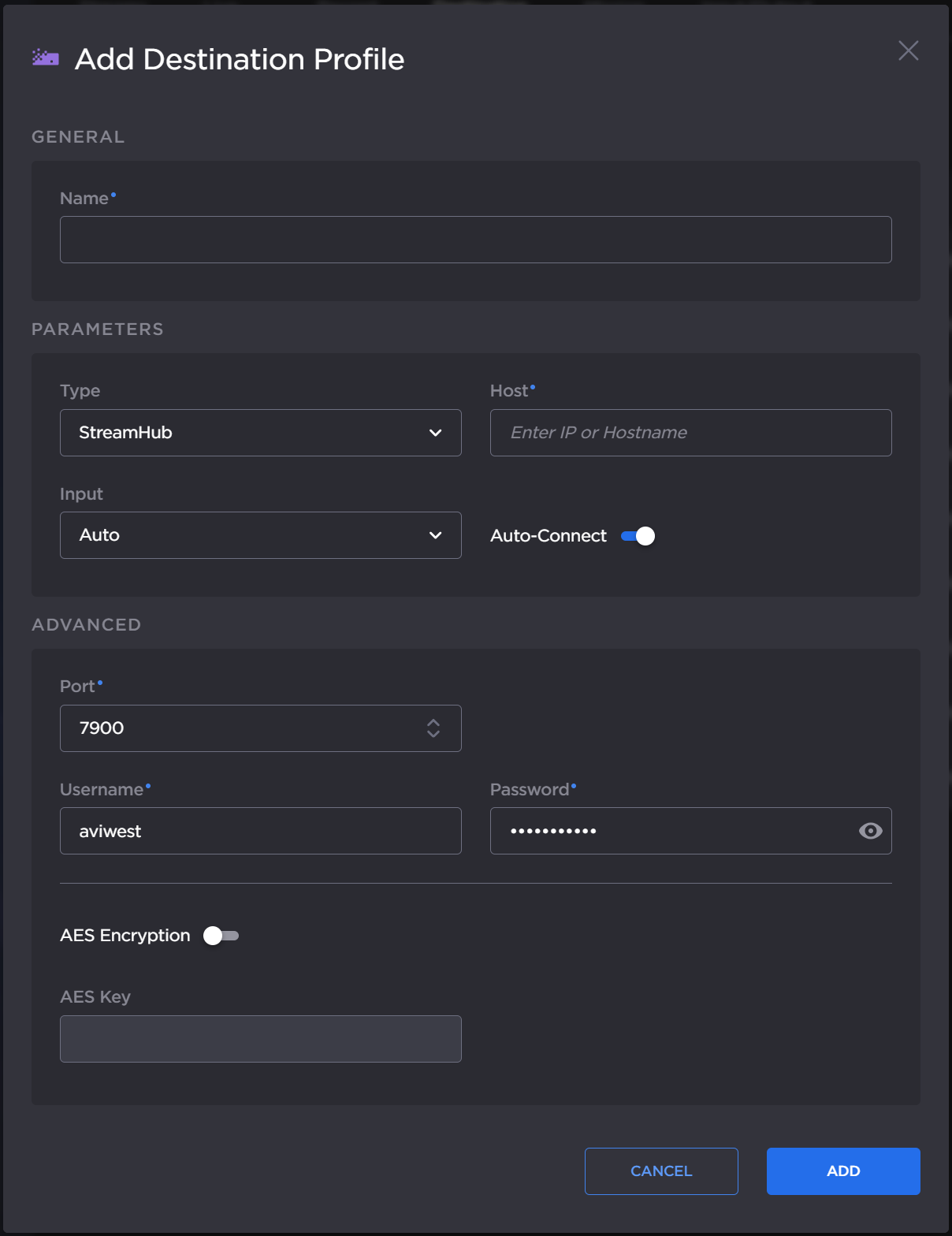

Add Destination Profile dialog
Enter a Name for the Profile.
Select the type of Destination Profile (StreamHub, Manager, Hub360, or SRT Receiver) in the Type dropdown list.
Configure the settings as shown in the table below in https://haivisioninfocenter.atlassian.net/wiki/spaces/falkon/pages/928911704#DestinationProfileSettings.
Click the Add button.
To select the newly created Destination Profile, see Selecting a Destination Profile.
Destination Profile Settings
Note
These settings may have been changed by the system administrator.
Enable the Auto-connect option to automatically connect to a receiver when the unit is powered on.
Hub 360 | Manager | SRT Receiver | StreamHub |
|---|---|---|---|
|
|
|
|
