Interfaces

Connector type: BNC connector
Impedance: 75Ω
Complies with SMPTE 292M and SMPTE 424M level A and level B-DS (limited to one SDI stream for level B-DS)
Supported Embedded Audio at 48kHz

Connector type: Type A
Complies with HDMI 2.0
Fully shielded HDMI cable is mandatory

Connector type: Type A
Complies with HDMI 2.0
Fully shielded HDMI cable is mandatory

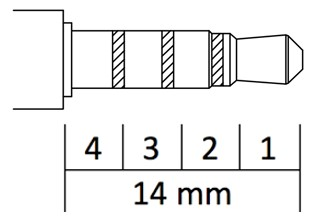

Connector type: 4pins (TRRS) 3.5 mm Audio Jack
(Signal complies with Apple and Samsung headsets)

Pins (Mating plugs)
1. Tip (Left HP)
2. Ring1 (Right HP)
3. Ring2 (Ground)
4. Sleeve (Microphone)

Headphone Dynamic Range (20-kHz Filter): 100 dB
Headphone THD+N: -70 dB max
Headphone Load Impedance: 16Ω or higher
Headphone Output Power: 2 x 55mW max (16Ω)
Headphone Full Scale output voltage: 0.65V_RMS
Microphone Bias : 2.5V
Microphone Maximum Level : 0.5V_RMS

1 Ethernet port
10/100/1000 Base-T
RJ45 connector
Green LED indicates link
Orange LED indicated speed (on: 1000BT, off: 10/100BT)

Dual-band 2.4GHz, 5GHz and 6GHz
802.11 a/b/g/n/ac/ax

128 GB

Two USB 3.1 Type A connectors
One USB 3.1 Type C connector

Input type: USB-C
Automatic under-voltage protection at 12.5 Volts
Automatic over-voltage protection at 22 Volts

Manufacturer: EDAC POWER ELEC.
Model: EU106A
DC Output: 5V 3A, 9V 3A, 12V3A, 15V 3A
AC Input: 100-240V-1.5A, 50-60Hz
