Importing the Unit Configuration

1. In the sidebar, click Settings.

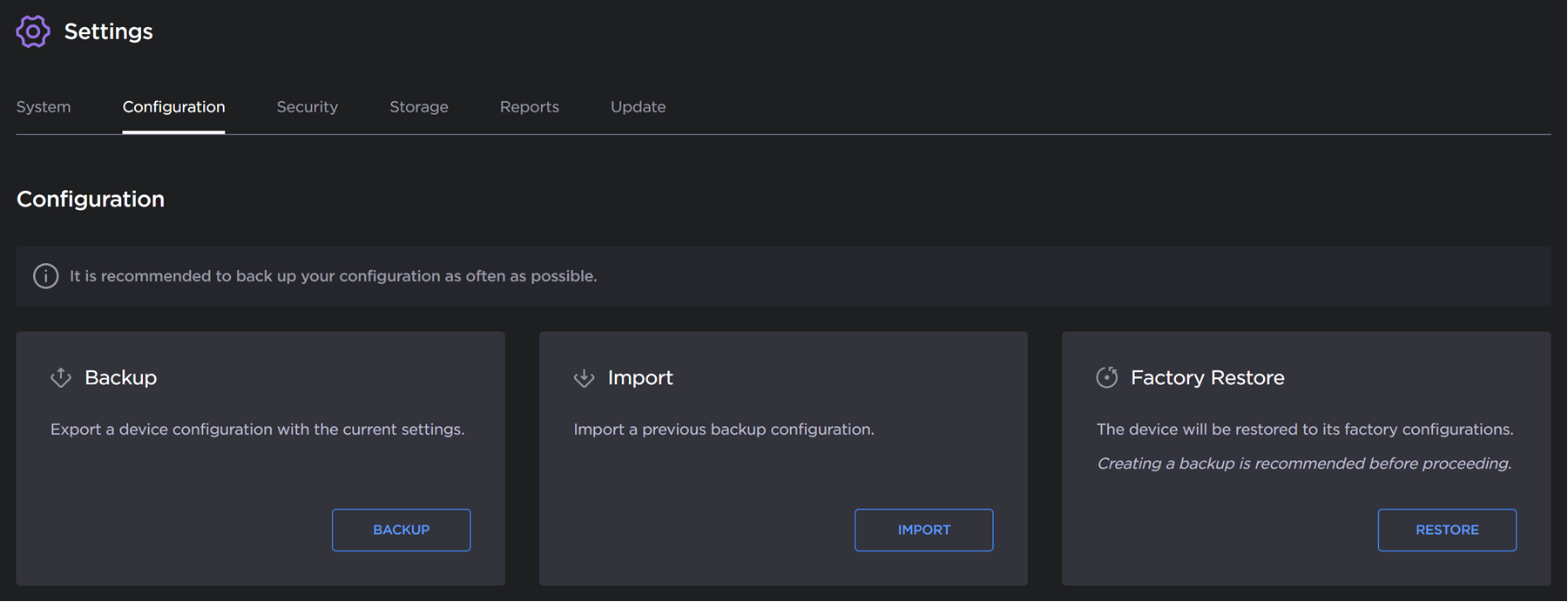

2. Click the Configuration tab.



3. Click the Import button.

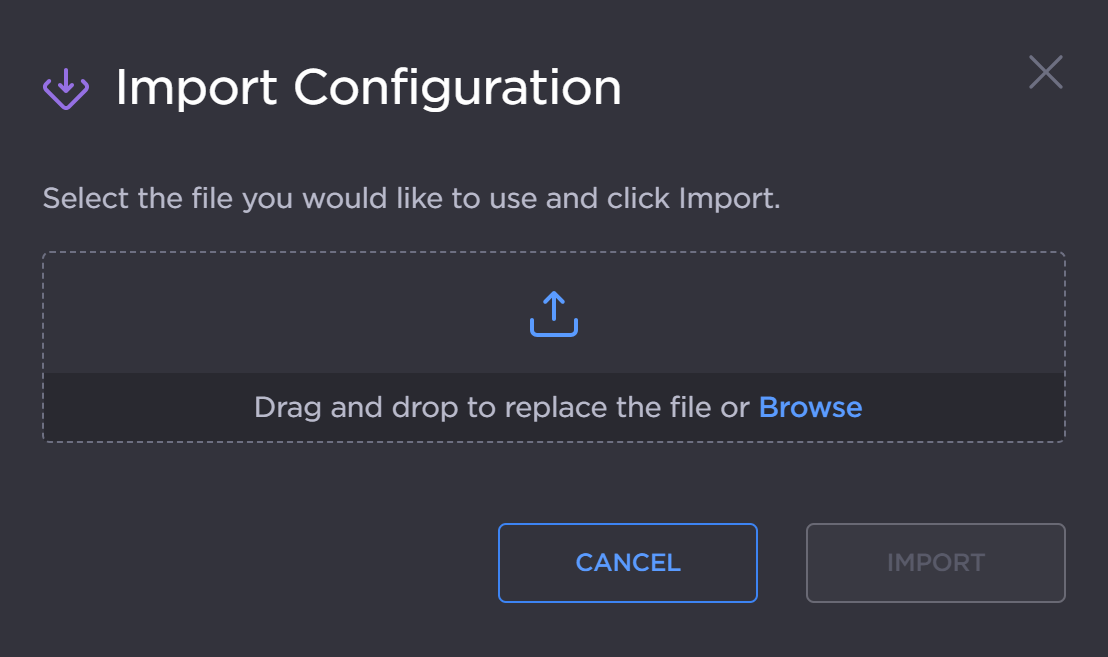

4. Drag and drop or click Browse to select the .awj file to be imported.



5. Click the Import button.

The unit supports automatic reconfiguration at startup or after detecting the insertion of a USB flash drive containing specific configuration files in its root directory.

• For an overall configuration: the file must be named autoconfig.awj.

• For a configuration related to network only: the file must be named networkconfig.awj or networkconfig.conf. If both are present, only networkconfig.conf will be used.

• For a Destination Profile auto-configuration: the file must be named destinationconfig.awj.


Note

If autoconfig.awj, networkconfig.xxx, and destinationconfig.awj are present, only autoconfig.awj will be used.

The reconfiguration is rejected when:

• the file format is not valid.

• the file is not applicable for the product (e.g., Pro4 configuration file applied on Rack400).

• the unit is in operation (Live, Forward, Record).

Note

• When the unit is reconfigured, the Activity LED blinks blue for 2 seconds.

• When reconfiguration is rejected, the Activity LED blinks red for 2 seconds .
