Adding a Destination Profile

You can add a destination Profile from the Web Interface.

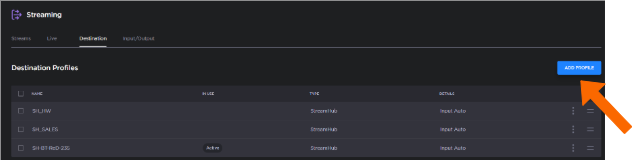

1. In the sidebar, click Streaming > Destination.

2. Click the Add Profile button.

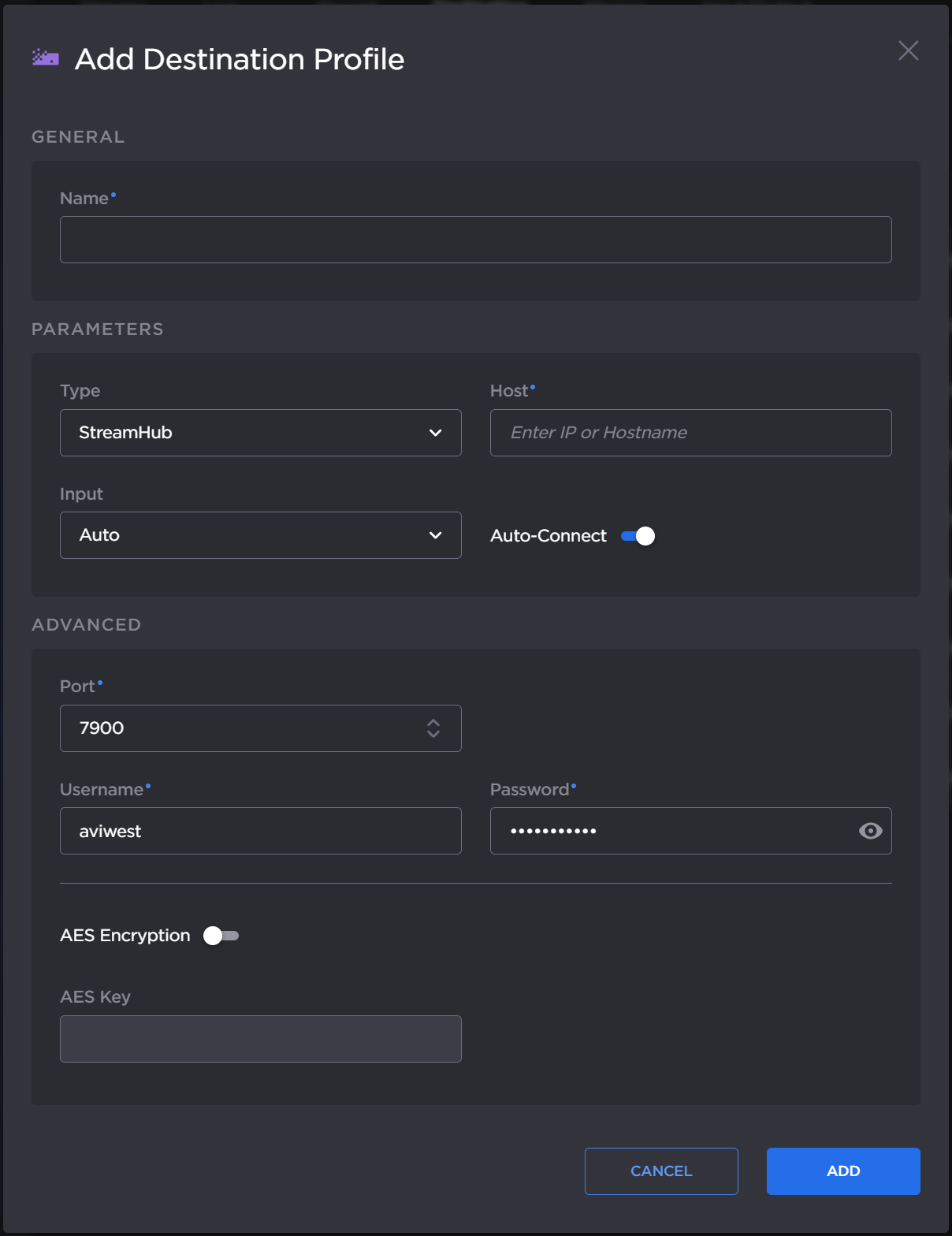

   The Add Destination Profile dialog appears:



3. Enter a Name for the Profile.

4. Select the type of Destination Profile (StreamHub, Hub360) in the Type dropdown list.

5. Configure the settings as shown in the table below.

6. Click the Add button.

To select the newly created Destination Profile, see Selecting a Destination Profile.

Destination Profile Settings

Note

• These settings may have been changed by the system administrator.

• Enable the Auto-connect option to automatically connect to a receiver when the unit is powered on.
