System Interfaces

See the sections below to view LED indicators and system interfaces on the front and back of the AD1.

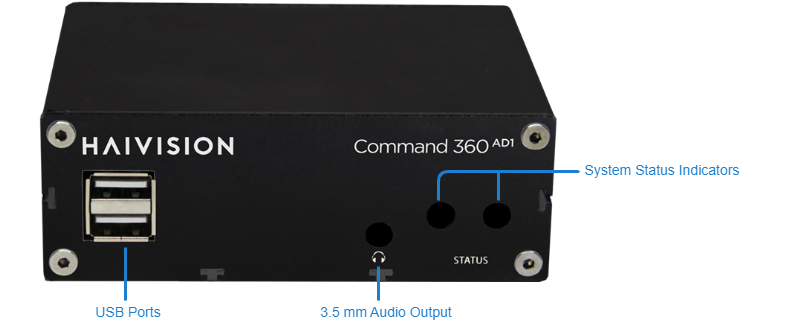

Front

System Status	Left LED	Right LED
System booting	Slowly blinks RED	OFF
System reset	Rapidly blinks GREEN*	OFF
System ready	Static GREEN	--
Application not running	Static GREEN	Static RED
Application running	Static GREEN	Static GREEN
Application receiving and playing stream	Static GREEN	Blinks GREEN
Downloading/installing firmware	Blinks ORANGE	Static GREEN

* Once the left LED is blinking, RST can then be released and default factory settings will be applied (including network settings).

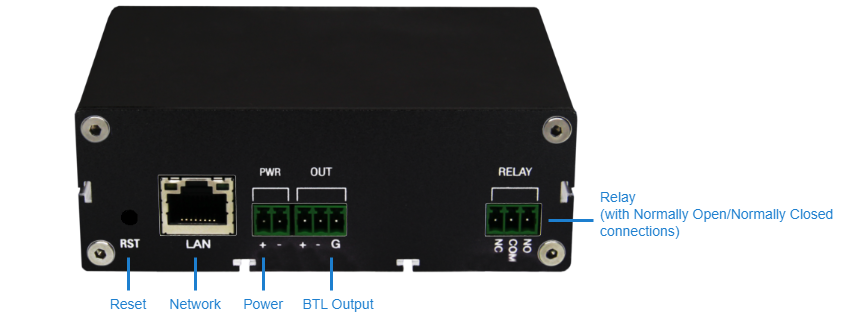

Back
