System Interfaces
See the sections below to view LED indicators and system interfaces on the front and back of the Alpha FX Elite.

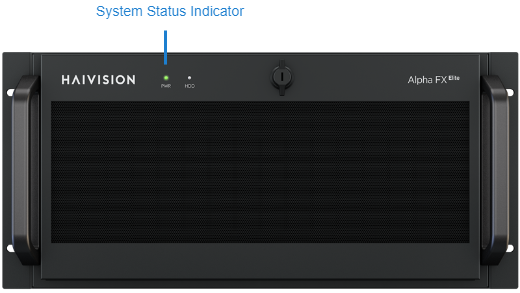

The following LED indicators are located on the front of the unit:
LED Indicator | Description |
|---|---|
PWR | The PWR indicator lights solid green when the system is on. |
HDD | The HDD indicator blinks red during disk activity. |

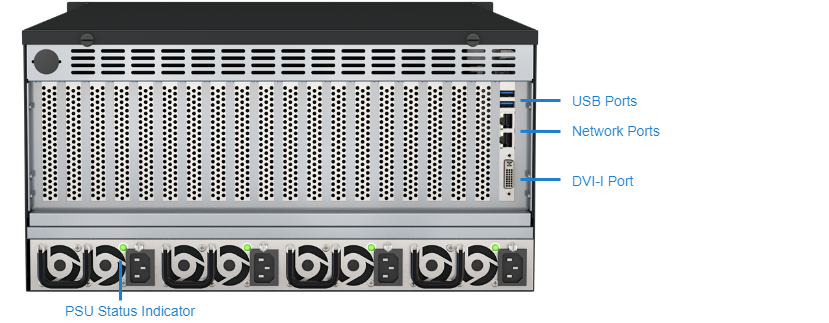

The following LED indicator is located on the back of the unit:
LED Indicator | Description |
|---|---|
Power supply | The power supply indicators light when an AC power cord is plugged into the unit and connected to a power source. |
