Editing a CineLink

After adding a CineLink, the name, location and network settings can be edited.

To edit a CineLink:

1. Click the user icon in the top right corner and select Admin.

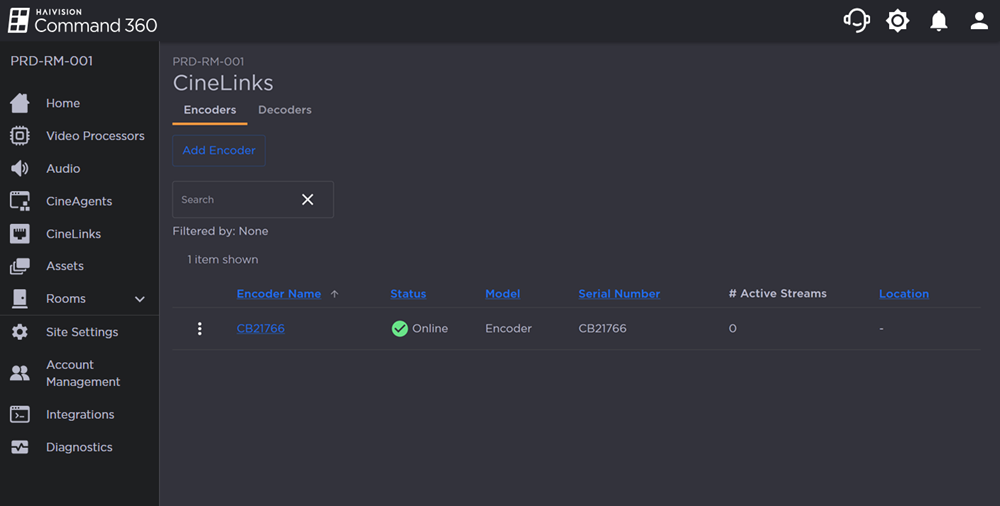

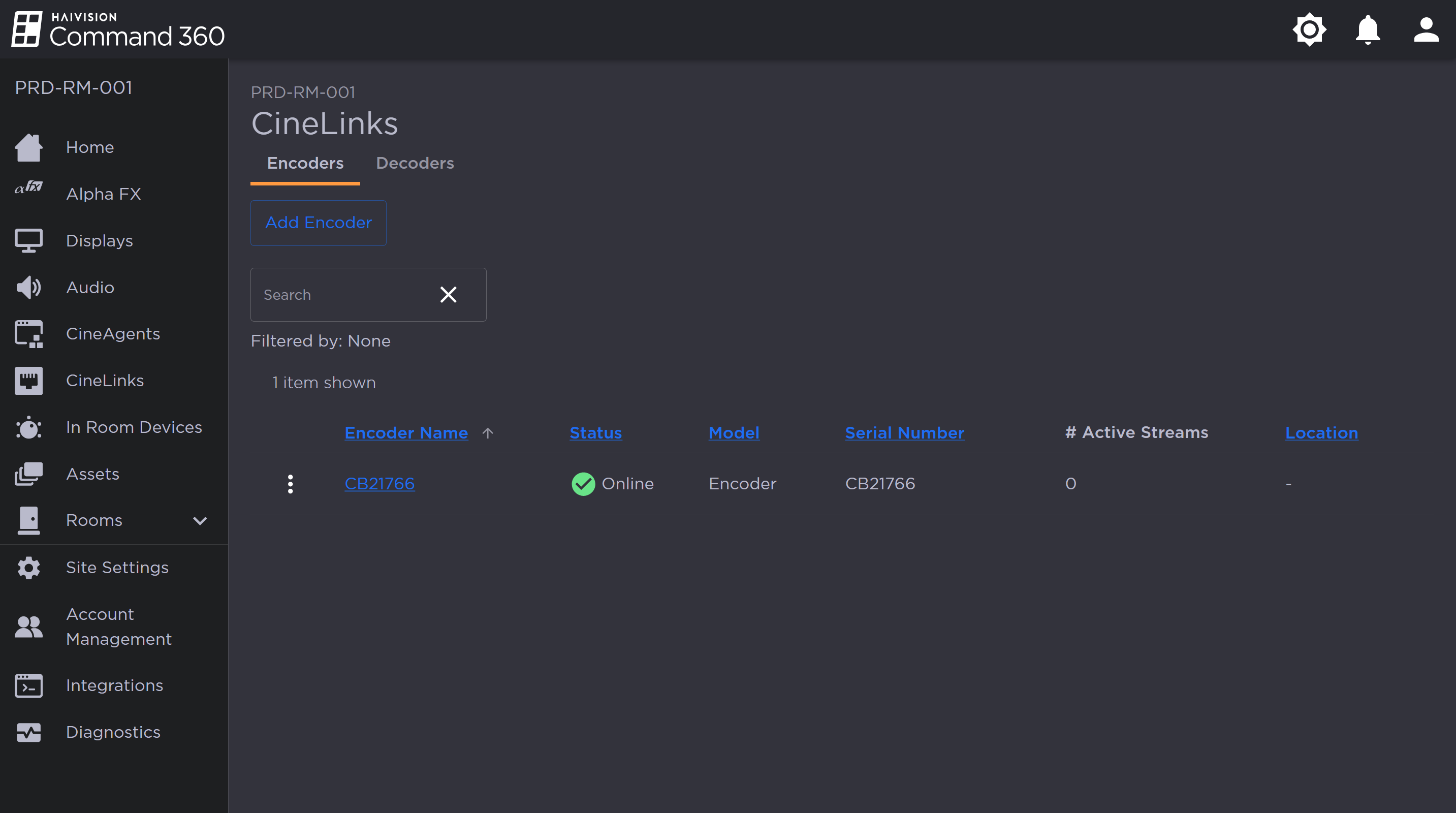

2. On the side menu, click CineLinks.

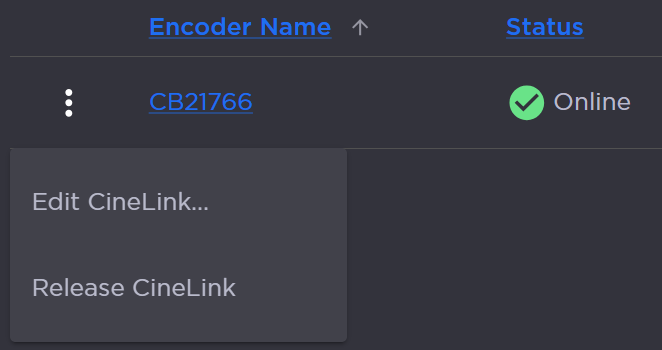

3. Click theicon to the left of a CineLink in the summary list and select Edit CineLink.

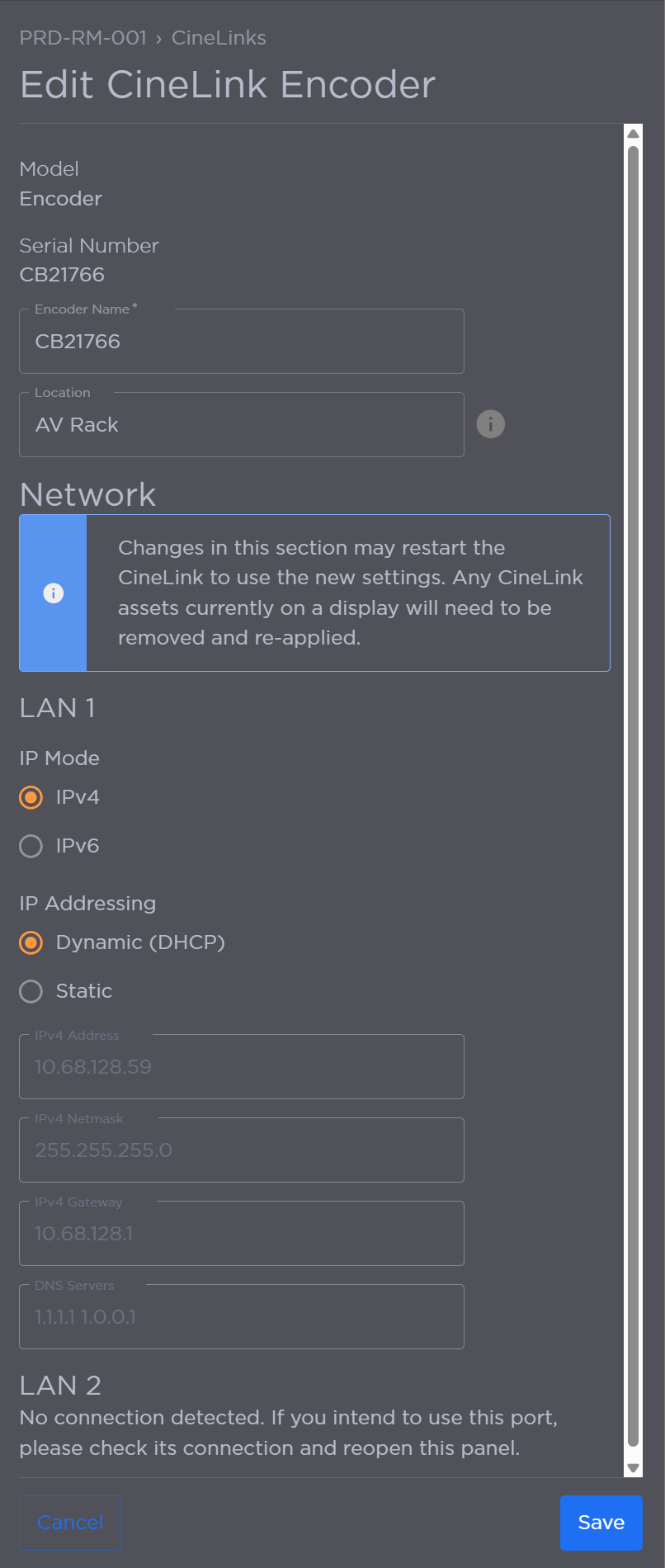

4. Enter a new CineLink Encoder Name or Location.



5. Configure LAN 1 settings:



   Note

   As noted in the interface, any changes in the Network section may restart the CineLink and require any CineLink assets currently on a display to be removed and reapplied.

   • Set the IP Mode to IPv4 or IPv6.

   • Set IP Addressing to Dynamic (DHCP) or Static.

   • If set to Static, configure Address, Netmask, Gateway and DNS Servers.

6. (Optional) If a LAN 2 connection is available, configure the network settings.

7. Click Save when finished.
