Configuring Appliance Network Settings

To configure appliance network settings:

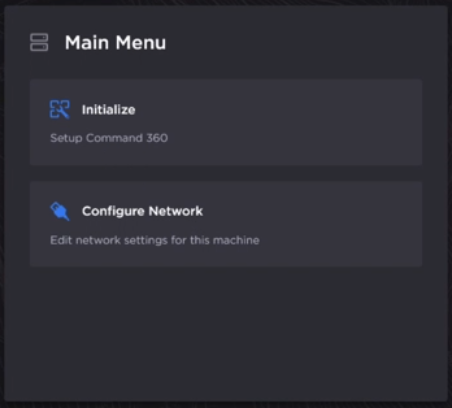

1. On the main menu, click Configure Network.

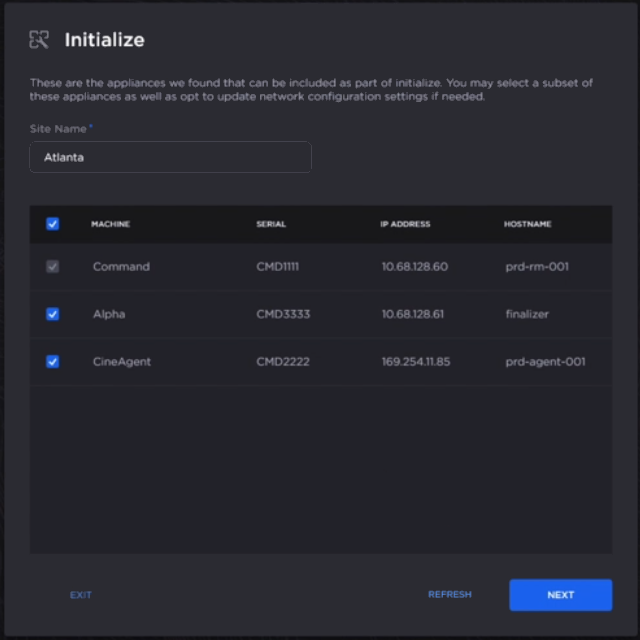

2. Enter a Site Name.

3. Select each appliance that should be included in the initialize process.



4. Click Next.

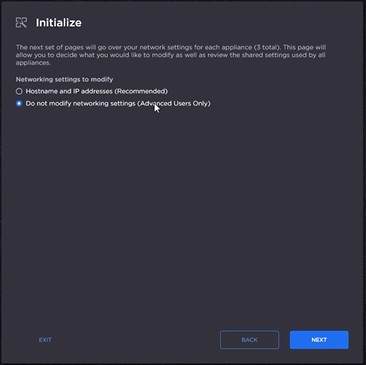

5. Under "Network settings to modify," select either Hostnames and IP Addresses (Recommended) or Do not modify networking settings (Advanced Users Only).

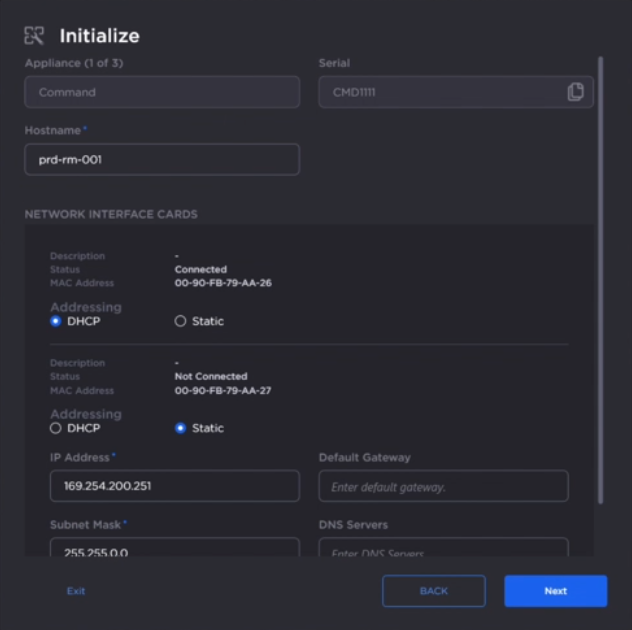

   Hostnames and IP addresses (Recommended)



   1. Enter a Hostname.



      Note

      After the system is initialized, the hostname cannot be changed without a factory reset.

   2. Select the Addressing mode for the network interface cards: either DHCP or Static.

   3. For cards with Static selected, enter an IP Address and Subnet Mask.

   Do not modify network settings (Advanced users only)

   Selecting this option requires coordination with Haivision.

6. Click Next.

Continue the Initialize process by Creating an Initial User.
