Alpha FX

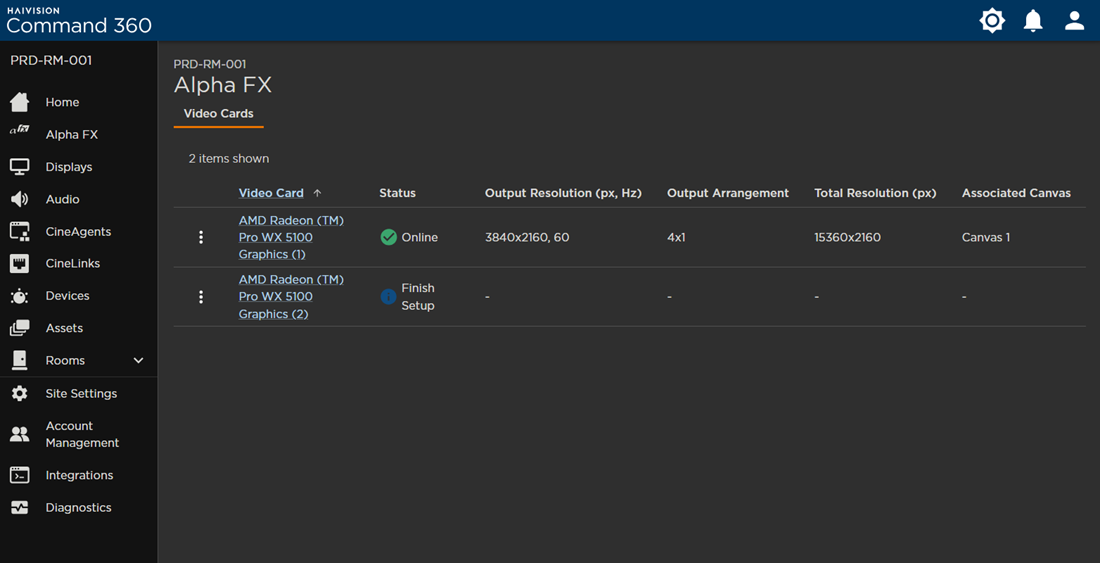

The Alpha FX page is where you manage video cards associated with the system. During system initialization, video cards are added to the environment but canvas creation takes place here, in the Admin section.

For video cards with the status Finish Setup, click the

icon to launch the configuration process.

• Finish Setup launches the video card configuration process for arranging the outputs to create the Display.

For video cards with the status Online, click the

icon to edit the canvas or reset the video card.

• Edit Canvas allows you to change the name of the canvas associated with the video card and select whether any outputs use a video splitter.
• Reset Video Card deletes the current configuration, as as any displays, devices, and layouts associated with the video card. After resetting, the card's status is changed to Finish Setup.
