Configuring the IP Output

1. Click on



    to access connection settings of an input.

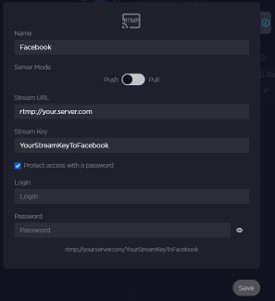

2. Click on



   to enter the output connection details (Stream URL, Stream Key, credentials if necessary ...)






   Tip

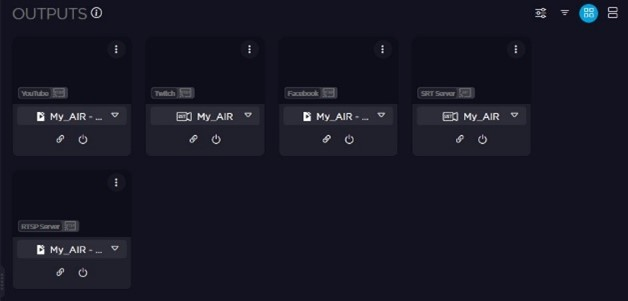

   You can create additional output profiles by clicking on



   in the top bar, then on



   . However, only 5 IP outputs can be used simultaneously.

   To use another output profile, eject («hide») one or some of them by clicking on



   .

3. Click on Save.

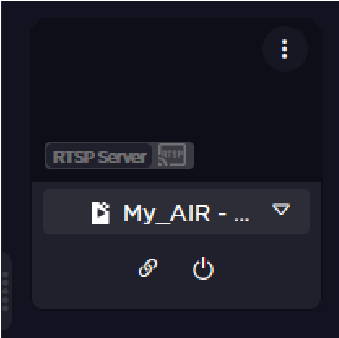

4. Enable the IP output by clicking on



   .





   The button



   turns blue, indicating that the output is enabled. By default, the device connected to the BeOnAir Cloud Service is selected as the Source for the five IP outputs.

Once the Live is started, a preview is displayed:

Adapting the incoming stream to your needs

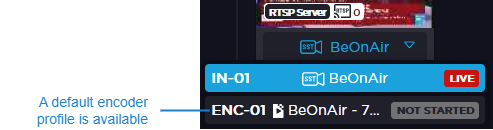

You may need to adapt the incoming stream to comply with the streaming platform requirements. To do so, you can select an encoder source by clicking on the Input label.

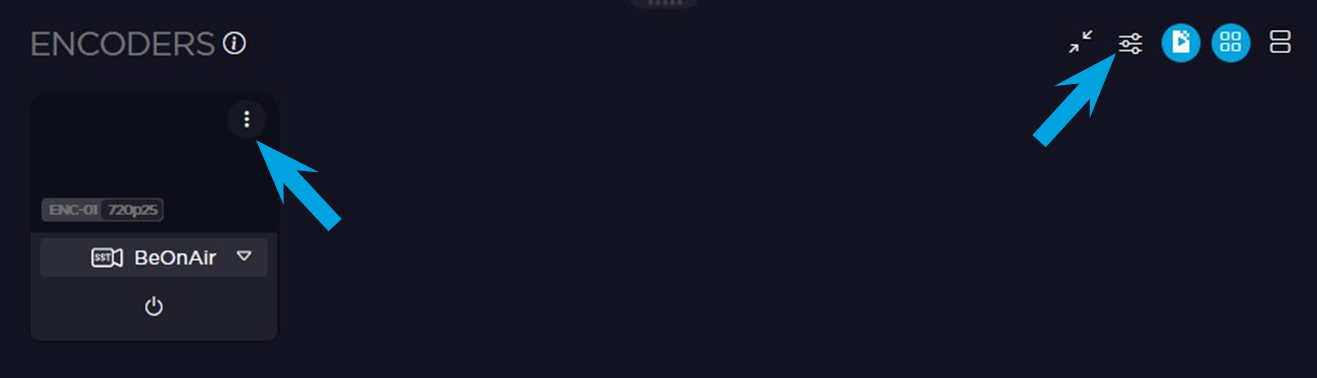

In the ENCODERS section, you can modify the encoding profile by clicking on

Note

Once the encoding profile’s settings are configured, make sure the IP output is enabled before starting a Live.
