To enabled ancillary data from the Unit Panel or from the Web Interface, choose from the following tabs.
Unit Panel
From the Home menu, tap > .
In the Ancillary Data section:
Select SDI input in the Time Code and/or HDR fields, or
Select SDI input in the SMPTE-2038.
Note
If the SMPTE-2038 field is set to SDI, the Time Code and HDR fields are no longer configurable.
SMPTE-2038 is a standard establishing a data pipe through which all incoming ANC data packets (Closed Captions, time code, SCTE104 cue tones, etc.) may be conveyed transparently over SST or SRT. Ancillary data is agnostic. All ANC data is transmitted without filtering or selection.
Web Interface
In the sidebar, click on Streaming > Input/Output.

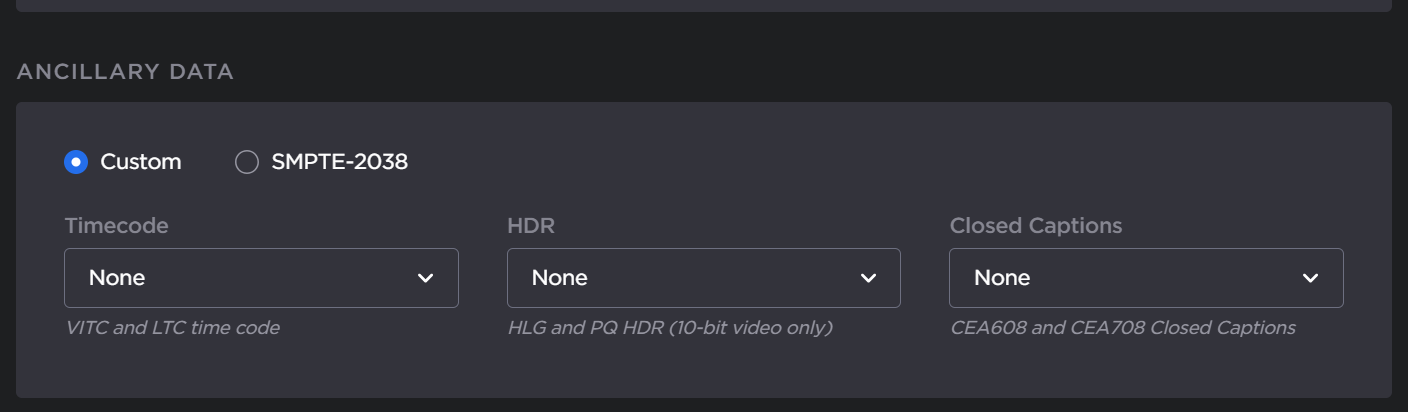

In the Ancillary Data section, select either Custom or SMPTE-2038.
If you selected Custom, in the Timecode field, select None, SDI Input, or System.
If you selected Custom, in the HDR field, select None or SDI Input.
If you selected Custom, in the Closed Captions field, select None or SDI input.
Click the Apply button.
