Selecting a Destination Profile
To select a destination Profile from the Unit Panel or from the Web Interface, see the tabs below.
When connected to a StreamHub, information such as StreamHub name and Input appear on the dashboard and on the unit panel.
When connected to a Hub360, booking information such as Route, StreamHub name and StreamHub input appear on the dashboard and on the unit.
Note
For single-encoding mode only. To select a Destination Profile in multi-encoding mode, see Starting a Live (MultiMode).
From the Home menu, tap
>
.Tap
until the desired profile is displayed.Tap
to select the destination profile. Its icon turns to a green dot (
) to indicate it is the currently selected profile.
From the Dashboard, in the Streams section, click the
icon. The encoder's current settings appear:

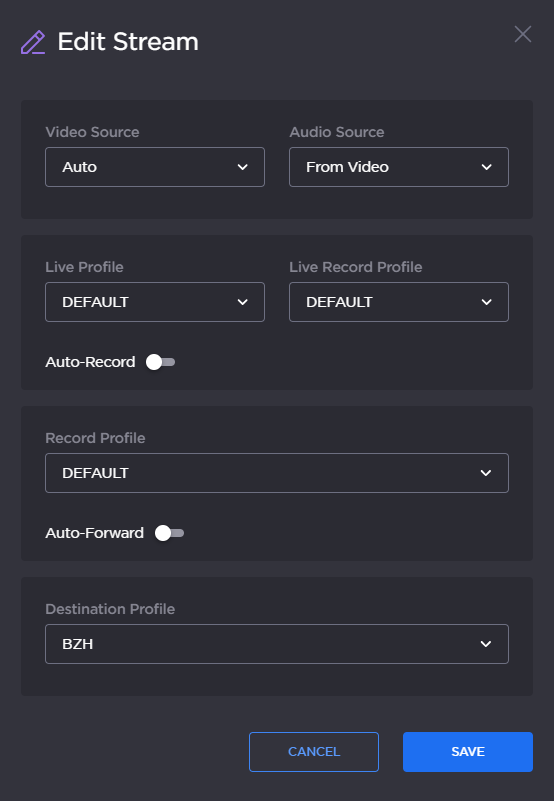

Edit Stream dialog
Select a pre-defined profile in the Destination Profile dropdown.
Tip
If none appear, see Adding a Destination Profile to add a profile.
Click the Save button.
